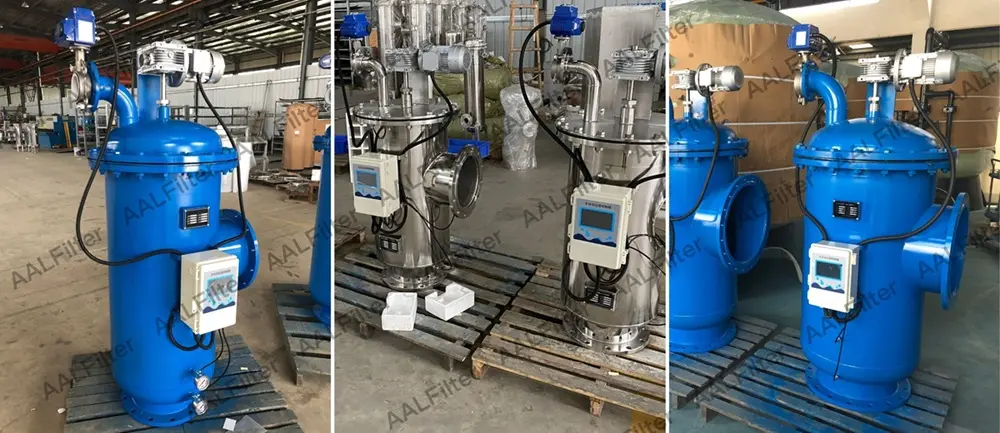

AAL Angle-Type Self-Cleaning Filter for Pipeline Water Filtration Systems

The AAL Angle-Type Self-Cleaning Filter is a high-efficiency automatic pipeline filtration system specially designed for industrial water treatment and process water applications. Featuring a compact vertical cylindrical structure, the filter is mounted directly onto the pipeline, allowing efficient space utilization and simplified system integration.

Compared with traditional filtration equipment, the Angle-Type Self-Cleaning Filter offers a more compact footprint, making it particularly suitable for installations with limited space. Its intelligent automatic cleaning mechanism continuously removes accumulated contaminants from the filter screen without interrupting system operation, helping reduce maintenance frequency and minimize downtime.

Designed for reliable long-term operation, the AAL Angle-Type Self-Cleaning Filter combines high filtration efficiency, flexible maintenance, and convenient disassembly. It is widely used in industrial pipeline filtration, cooling water systems, process water treatment, wastewater filtration, and UF/RO membrane pretreatment applications.

Product Features

1. Compact Angle-Type Structure for Pipeline Installation

The vertical angle-type design allows direct installation onto industrial pipelines while minimizing installation space requirements, making it ideal for compact filtration systems and retrofit projects.

2. Fully Automatic Self-Cleaning Operation

The filter automatically initiates the cleaning cycle based on differential pressure or preset timer settings, reducing manual maintenance and ensuring continuous industrial filtration.

3. Efficient Industrial Pipeline Filtration

Equipped with a high-strength stainless steel filter screen, the system effectively removes suspended solids and protects downstream equipment such as pumps, heat exchangers, nozzles, and membrane systems.

4. Flexible Maintenance and Easy Disassembly

The optimized structure allows convenient maintenance and flexible disassembly, helping reduce servicing time and operational costs.

5. Continuous Filtration Without Flow Interruption

During the cleaning cycle, the filtration process continues without shutting down the system, ensuring stable operation in continuous industrial processes.

6. Low Backwash Water Consumption

The optimized self-cleaning mechanism minimizes backwash water usage, helping reduce overall water consumption and operating costs.

7. Designed for High-Flow Industrial Applications

The filter is engineered to handle high flow rates and elevated suspended solids content, making it suitable for demanding industrial water filtration systems.

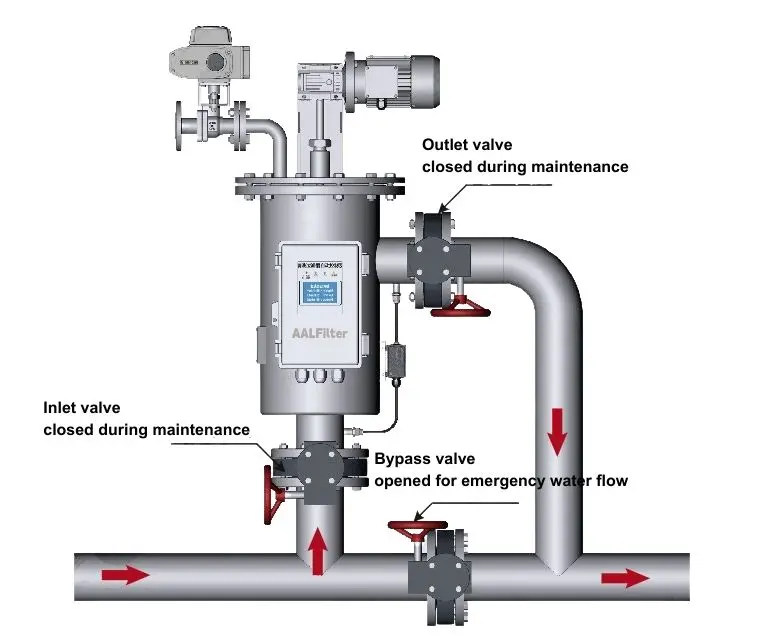

Angle-Type Self-Cleaning Filter Installation Diagram

Selection Table

Typical Applications

● Industrial Cooling Water Filtration

Removes suspended solids from cooling water and circulating water systems to protect heat exchangers and industrial equipment.

● Process Water and Pipeline Filtration

Suitable for process water filtration in industrial pipeline systems to ensure stable production operation.

● UF / RO Membrane Pretreatment

Used as a pre-filtration solution for ultrafiltration (UF) and reverse osmosis (RO) membrane systems to reduce membrane fouling.

● Petrochemical, Power Plant, and Metallurgy Industries

Designed for high-flow industrial water filtration applications in petrochemical plants, power stations, and heavy industries.

● Municipal Water and Industrial Water Treatment

Widely used in municipal water supply systems and industrial water treatment processes requiring automatic online filtration.

● Food & Beverage and Pharmaceutical Industries

Suitable for liquid pretreatment and process water filtration in food processing and pharmaceutical production systems.

FAQ – Angle-Type Self-Cleaning Filters

1. What is an Angle-Type Self-Cleaning Filter?

An Angle-Type Self-Cleaning Filter is an automatic filtration system designed with an angle-type pipeline structure that continuously removes suspended solids from liquids through automatic online cleaning.

2. What is the difference between an Angle-Type Self-Cleaning Filter and a basket strainer?

A traditional basket strainer requires manual shutdown and cleaning when the filter basket becomes clogged. In contrast, an Angle-Type Self-Cleaning Filter automatically removes contaminants from the filter screen without interrupting system operation, making it more suitable for continuous industrial filtration.

3. Is this filter suitable for industrial pipeline systems?

Yes. The filter is specifically designed for direct installation into industrial pipeline systems and is ideal for compact installations with limited available space.

4. What industries commonly use automatic self-cleaning filters?

Automatic self-cleaning filters are widely used in industrial water treatment, cooling water systems, petrochemical plants, power generation, food & beverage processing, pharmaceutical industries, and membrane pretreatment systems.

5. What are the advantages of an automatic self-cleaning filter?

Key advantages include:

· Continuous online filtration

· Reduced manual maintenance

· Automatic cleaning operation

· Lower system downtime

· Protection for downstream equipment

· Improved operational efficiency

Reliable Automatic Self-Cleaning Filter Solutions for Industrial Pipeline Filtration

Whether you are upgrading an existing industrial filtration system or designing a new pipeline water treatment solution, the AAL Angle-Type Self-Cleaning Filter provides a reliable and efficient automatic filtration solution for continuous industrial operation.

With its compact angle-type structure, intelligent self-cleaning mechanism, and flexible installation design, this filter is ideal for industrial pipeline filtration, cooling water systems, process water treatment, and other demanding applications requiring stable long-term operation.

Contact us AAL Filter today for product datasheets, technical consultation, system selection support, quotations, or customized automatic self-cleaning filtration solutions for your industrial applications.
