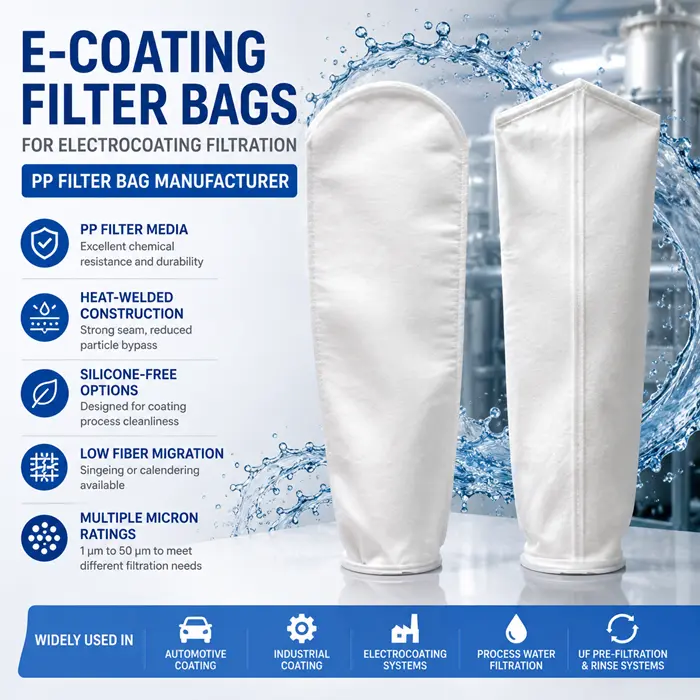

E-Coating Filter Bags for Electrocoating | PP Filter Bag Manufacturer

AALFilter E-Coating Filter Bags are designed for liquid filtration in E-Coating, E-Coat, ED Coating and electrocoating systems. Made primarily from polypropylene (PP) filter media, these filter bags help remove paint agglomerates, suspended particles, dust and other contaminants from circulating coating liquids.

For automotive coating lines, metal parts manufacturers, appliance manufacturers and E-Coating system suppliers, reliable filtration is essential for maintaining coating bath cleanliness and reducing particle-related surface defects.

AALFilter provides PP E-Coating Filter Bags in different micron ratings, sizes and ring configurations, with OEM and replacement options available for different bag filter housings and electrocoating filtration systems.

E-Coating Filter Bag

E-Coating systems continuously circulate coating liquid through filtration equipment to control suspended contaminants and paint particles. The filter bag is installed inside a bag filter housing and acts as a replaceable filtration element.

Typical filtration applications include:

E-Coating Tank → Circulation Pump → Bag Filter Housing → E-Coating Filter Bag → Process System

Depending on the system design, filter bags can be used for main tank circulation, fine filtration, UF system pre-filtration and post-rinse or process water filtration.

AALFilter focuses on PP filter bags for E-Coating filtration, with customized filtration solutions available according to the customer's process conditions and equipment requirements.

Features

PP Filter Media

Polypropylene is widely used for industrial liquid filtration because of its good chemical resistance, low material cost and broad compatibility with many process liquids.

PP filter bags can be supplied in different filtration grades to meet the requirements of E-Coating circulation and process filtration systems.

Actual material selection should be confirmed according to the coating chemistry, pH, temperature and other operating conditions.

Heat-Welded Construction

For E-Coating applications where filtration cleanliness is important, heat-welded filter bags can provide a consistent bag structure without traditional sewn seams.

A welded construction helps reduce potential particle bypass and minimizes concerns associated with sewing threads and needle holes.

Customized plastic ring and sealing configurations are also available for different bag filter housings.

Silicone-Free / Silicone-Controlled Options

Silicone contamination is an important concern in coating processes because unwanted silicone contamination may affect coating surface quality.

For E-Coating applications with strict cleanliness requirements, AALFilter can provide silicone-free or silicone-controlled filter bag options, subject to the customer's specific requirements and manufacturing specifications.

Silicone-control requirements can cover filter media, bag rings, welding materials, production processes and packaging.

Low Fiber Migration

Filter media cleanliness is important in E-Coating filtration.

AALFilter filter bags can be supplied with suitable surface treatments, such as singeing or calendering, where required, to help reduce loose fibers and fiber migration from the filter media.

This helps maintain cleaner process liquids and reduces the risk of filter-media-related contamination.

Multiple Micron Ratings

Different E-Coating filtration stages require different filtration grades.

Common options include:

1 μm | 5 μm | 10 μm | 25 μm | 50 μm

The appropriate micron rating depends on the filtration stage, particle loading, circulation flow rate, coating chemistry and downstream equipment.

A lower micron rating is not always the best choice. The filtration grade should be selected together with flow rate, differential pressure, dirt-holding capacity and required filter life.

Applications

AALFilter PP filter bags can be used in different filtration stages of E-Coating and electrocoating systems.

E-Coating Tank Circulation

Used to remove paint agglomerates, suspended particles, dust and mechanical contaminants from circulating coating liquid.

Typical applications may use medium filtration grades such as 25–50 μm, depending on the system design.

E-Coating Fine Filtration

Fine filter bags can be used when tighter particle control is required.

Depending on the application, filtration grades such as 5–25 μm may be considered.

UF System Pre-Filtration

Filter bags can also be installed upstream of an ultrafiltration system to reduce the particle load entering the UF equipment.

The required micron rating should be selected according to the UF membrane specification, feed flow rate and actual process conditions.

Post-Rinse and Process Water Filtration

Filter bags can be used for certain post-rinse, UF permeate or process water filtration applications to help control suspended particles and reduce the risk of secondary contamination.

Technical Specifications

Product Selection Table

How to Choose the Right E-Coating Filter Bag

Choosing the right E-Coating Filter Bag requires more than simply selecting a micron rating.

The following information should be considered:

Filter Bag Size
Confirm the bag length, diameter and overall dimensions.

Bag Ring Type
The ring must match the filter housing and basket configuration.

Micron Rating
Select the filtration grade according to the required particle removal efficiency and system flow rate.

Filter Media
PP is a common choice for many E-Coating liquid filtration applications, but chemical compatibility should always be checked against the actual coating solution.

Operating Temperature and Chemistry
The coating solution, pH, temperature and cleaning chemicals should be considered when selecting filter media.

Flow Rate and Differential Pressure
The filter bag should provide sufficient filtration area and dirt-holding capacity for the required operating flow.

OEM & Replacement E-Coating Filter Bags

AALFilter supplies OEM and replacement filter bags for E-Coating filtration systems.

If you are replacing an existing filter bag, we can match the product based on:

· Filter bag dimensions

· Micron rating

· Ring diameter

· Ring type

· Filter media

· Housing or basket size

· Required quantity

Customers can also provide photos, drawings, existing filter bag specifications or filter housing information for product matching.

This makes AALFilter a suitable supplier for E-Coating equipment manufacturers, filtration system integrators, automotive coating plants and industrial coating companies looking for customized filter bag solutions.

Frequently Asked Question

What micron filter bag is commonly used for E-Coating?

There is no single micron rating suitable for every E-Coating system.

For main E-Coating tank circulation, 25–50 μm filter bags may be used in some systems, while finer filtration such as 5–25 μm may be required for other filtration stages. UF pre-filtration requirements depend on the membrane system and process design.

The correct micron rating should therefore be selected according to the E-Coating process, filter housing, flow rate, contaminant loading and downstream equipment requirements.

Request a Quote for E-Coating Filter Bags

Looking for PP E-Coating Filter Bags for an electrocoating production line, filtration system or replacement application?

AALFilter can provide standard, OEM and customized filter bags according to your required size, micron rating, ring configuration and filtration conditions.

Send us your filter bag dimensions, micron rating, filter housing model or existing filter bag photos, and our team can help you identify a suitable solution.

Contact AALFilter today for E-Coating Filter Bag pricing, specifications and OEM solutions.
