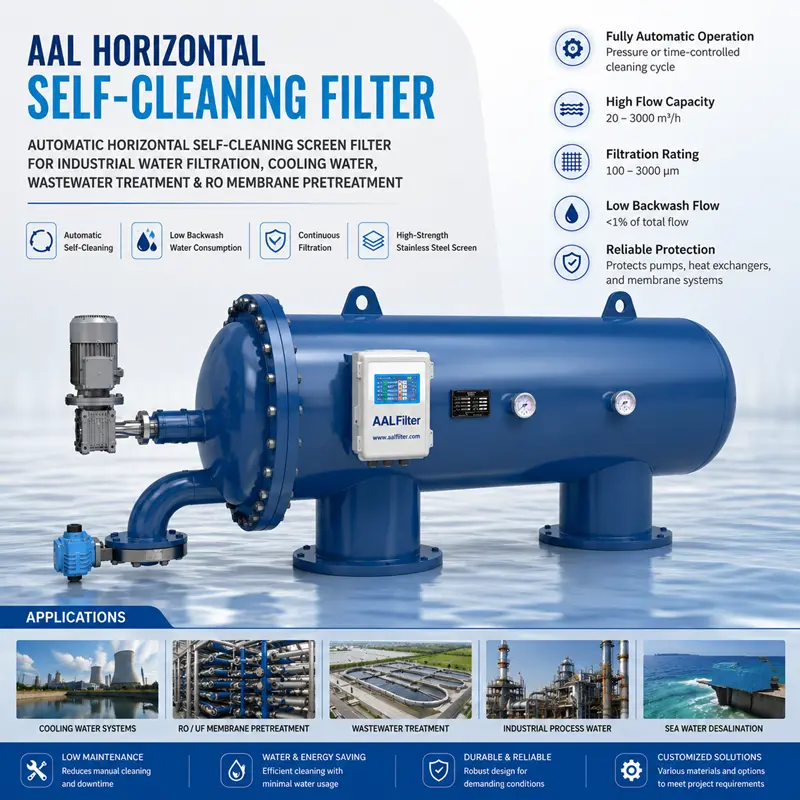

AAL Horizontal Automatic Self-Cleaning Filter for Industrial Water Filtration

The AAL Horizontal Automatic Self-Cleaning Screen Filter is a high-performance industrial filtration system engineered for the continuous removal of suspended solids from water and process liquids. Designed with a horizontal configuration and intelligent automatic cleaning technology, the system initiates self-cleaning cycles based on differential pressure or preset time intervals, ensuring uninterrupted operation and reliable filtration performance.

Featuring a durable stainless steel wedge wire screen and an efficient internal cleaning mechanism, the filter effectively removes particulate contaminants while maintaining low pressure loss and stable flow conditions. The automatic backwashing process requires minimal water consumption and allows the system to remain online throughout the cleaning cycle, significantly reducing maintenance requirements and operating costs.

Designed for demanding industrial environments, the AAL Horizontal Self-Cleaning Filter is widely used in cooling water systems, industrial wastewater treatment, process water filtration, membrane pretreatment systems, and large-scale industrial water treatment facilities. It provides reliable protection for downstream equipment such as pumps, heat exchangers, pipelines, valves, ultrafiltration (UF) systems, and reverse osmosis (RO) membranes.

Product Features

1. Fully Automatic Online Self-Cleaning Operation

The integrated automatic cleaning system activates based on differential pressure or timer settings, eliminating the need for frequent manual maintenance and ensuring continuous filtration performance.

2. Horizontal Design for High-Flow Applications

The horizontal structure provides excellent hydraulic performance and is particularly suitable for large-flow industrial filtration systems where stable operation and easy maintenance are required.

3. High-Strength Stainless Steel Wedge Wire Screen

Equipped with a precision wedge wire screen manufactured from SS304 or SS316L stainless steel, offering filtration ratings from 100 to 3000 microns while maintaining excellent mechanical strength and anti-clogging performance.

4. Continuous Filtration During Cleaning

The filtration process remains uninterrupted during the cleaning cycle, ensuring stable operation of critical industrial systems and minimizing production downtime.

5. Low Backwash Water Consumption

The optimized cleaning mechanism consumes less than 1% of the total system flow during backwashing, helping reduce water waste and operating costs.

6. Suitable for Heavy Contamination Conditions

Designed to handle high levels of suspended solids and large flow rates, making it ideal for challenging industrial water filtration applications.

7. Flexible Material and Configuration Options

Available with carbon steel, SS304, or SS316L housing materials and multiple screen configurations to meet different operating conditions and process requirements.

Technical Specifications

Note: Final model selection depends on flow rate, filtration accuracy, contamination level, and process requirements. Please contact us AAL Filter for professional sizing and selection assistance.

Typical Applications of Horizontal Self-Cleaning Filters

● Industrial Cooling Water Filtration

Removes suspended solids from cooling water and circulating water systems to protect heat exchangers, condensers, pumps, and piping networks.

● UF and RO Membrane Pretreatment

Provides effective pretreatment for ultrafiltration (UF) and reverse osmosis (RO) membrane systems, reducing membrane fouling and extending membrane service life.

● Process Water Filtration in Heavy Industries

Suitable for process water filtration in petrochemical, metallurgy, power generation, mining, and pulp & paper industries.

● Food & Beverage and Pharmaceutical Processing

Removes particulate contaminants from process water and liquid raw materials while protecting downstream filtration equipment.

● Municipal Water Supply and Seawater Desalination

Used as a pre-filtration system in municipal water treatment plants, seawater desalination facilities, and industrial water treatment systems.

● Industrial Wastewater Treatment and Water Reuse

Improves wastewater treatment efficiency and supports water recycling initiatives by reducing suspended solids and particulate contamination.

Frequently Asked Questions (FAQ)

1. What is a Horizontal Self-Cleaning Filter?

A horizontal self-cleaning filter is an automatic filtration system designed to continuously remove suspended solids from liquids while automatically cleaning the filter screen without interrupting operation.

2. How Does a Horizontal Automatic Self-Cleaning Screen Filter Work?

The filter captures contaminants on a stainless steel screen. When differential pressure reaches a preset value or a timer triggers a cleaning cycle, the internal cleaning mechanism removes accumulated solids and discharges them through the drain outlet.

3. What Filtration Accuracy Is Available?

Standard filtration ratings range from 100 to 3000 microns, with customized options available for specific applications.

4. What Industries Use Automatic Self-Cleaning Filters?

These filters are widely used in industrial water treatment, cooling water systems, wastewater treatment, membrane pretreatment, petrochemical processing, power plants, food & beverage production, pharmaceuticals, and seawater desalination projects.

5. What Are the Advantages of a Horizontal Self-Cleaning Filter?

Key advantages include:

· Continuous online filtration

· Fully automatic operation

· Reduced maintenance requirements

· Low backwash water consumption

· High flow handling capability

· Reliable protection for downstream equipment

6. What Is the Difference Between a Self-Cleaning Filter and a Basket Strainer?

A basket strainer requires manual cleaning and system shutdown to remove accumulated debris. An automatic self-cleaning filter cleans itself while remaining online, significantly reducing labor costs and system downtime. This makes self-cleaning filters the preferred solution for high-flow and heavily contaminated industrial applications.

A Reliable Horizontal Self-Cleaning Filter Solution for Industrial Water Filtration Systems

Whether you are upgrading an existing filtration system or designing a new industrial water treatment facility, the AAL Horizontal Automatic Self-Cleaning Screen Filter provides a reliable and cost-effective solution for continuous filtration and solid removal.

With robust construction, intelligent self-cleaning technology, low maintenance requirements, and flexible material options, the system helps improve operational efficiency, protect critical downstream equipment, and reduce long-term operating costs.

Contact us AAL Filter today for product datasheets, technical consultation, system sizing assistance, quotations, or customized self-cleaning filtration solutions tailored to your industrial applications.
