Big Blue Spun-bonded sediment Filter Cartridge
- Increased Filtration Precision
- High Dirt-Holding Capacity
- Efficient Surface & Deep Filtration
- Low Pressure Drop
- Widely Applications

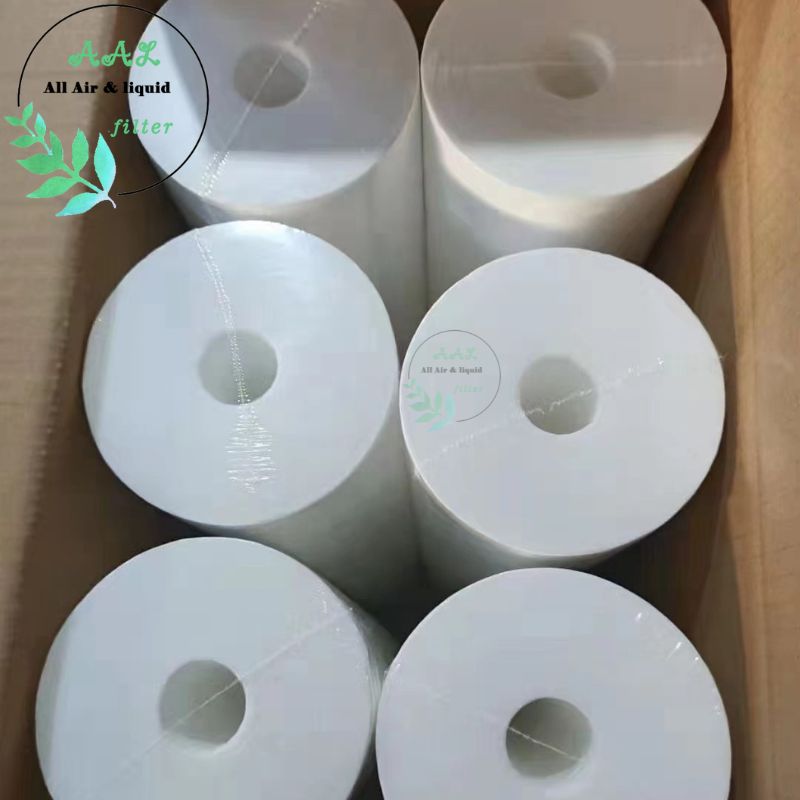

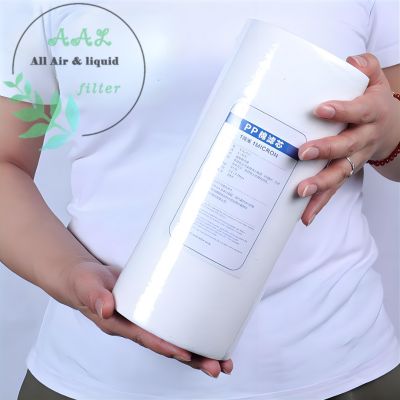

Big Blue Spun-bonded Filter Cartridge
Product Overview
The Big blue Spun-bonded Filter Cartridge is a heavy-duty filtration solution designed for high-precision applications. Featuring an outer diameter of 4.5 inches, significantly larger than the standard 2.5 inches, this filter cartridge offers increased filter layer thickness, improving filtration accuracy and dirt-holding capacity. The unique pore structure, with larger pores on the outer layers and smaller pores on the inner layers, effectively removes suspended particles while providing excellent surface and deep filtration. The high porosity, high retention rate, and large dirt-holding capacity make it ideal for applications that require higher filtration pressure and precision. It is widely used in drinking water purification, industrial pure water filtration, and other high-precision fluid filtration needs.
Key Features:
✅ High Filtration Performance: 1, 5, and 10-micron nominal filtration capabilities.
✅ Increased Filtration Precision: Larger filter layers provide improved filtration accuracy and higher dirt-holding capacity.
✅ High Dirt-Holding Capacity: Can withstand higher filtration pressures and extended use before replacement.
✅ Efficient Surface & Deep Filtration: Outer layers remove suspended particles, while the inner layers provide superior deep filtration.
✅ Wide Range of Applications: Ideal for drinking water purification, industrial pure water filtration, and other high-precision fluid filtration.
✅ Low Pressure Drop: Ensures efficient filtration with minimal pressure loss, maximizing system performance.
Specifications:
Product Name | Big Blue Spun-bonded Filter Cartridge | |||
Length | 10" | 20" | 30" | 40" |
Flow(t/h) | 1 | 2 | 3 | 4 |
Area(㎡) | 1 | 2 | 3 | 4 |
Diameter(Standard) | OD(63mm), ID(30mm) | |||
Diameter(Jumbo) | OD(115mm), ID(30mm) | |||
Material | PP Polypropylene | |||
Micron rating(μm) | 1, 5, 10, 25, 50, 75, 100, 150, 200 | |||
Tech Support
Our team is available for troubleshooting, technical assistance, and to help you select the right filtration solutions for your applications.
Applications
✅ Wastewater Treatment: Ideal for pre-treatment in industrial water filtration systems.
✅ Drinking Water Purification: Removes contaminants to ensure clean and safe drinking water.
✅ Industrial Pure Water Filtration: Ideal for high-purity water systems in various industrial processes.
✅ High-Precision Fluid Filtration: Used in industries requiring precise filtration to ensure fluid quality and system performance.
