Mini Deep Groove PP Melt Blown Filter Cartridge – High Dirt Holding for Water & Chemical Filtration
- Enhanced Surface Area
- High Dirt Holding
- Versatile Filtration Performance
- Effective Contaminant Removal
- Long Service Life
- Ideal for Industrial Applications
Deep-Groove Melt Blown Filter Cartridge
Product Overview
AALfilter’s Minni or Deep-Groove Melt Blown Filter Cartridge is manufactured from pure polypropylene through a thermal bonding process without chemical adhesives, ensuring high purity and compatibility with various liquids.

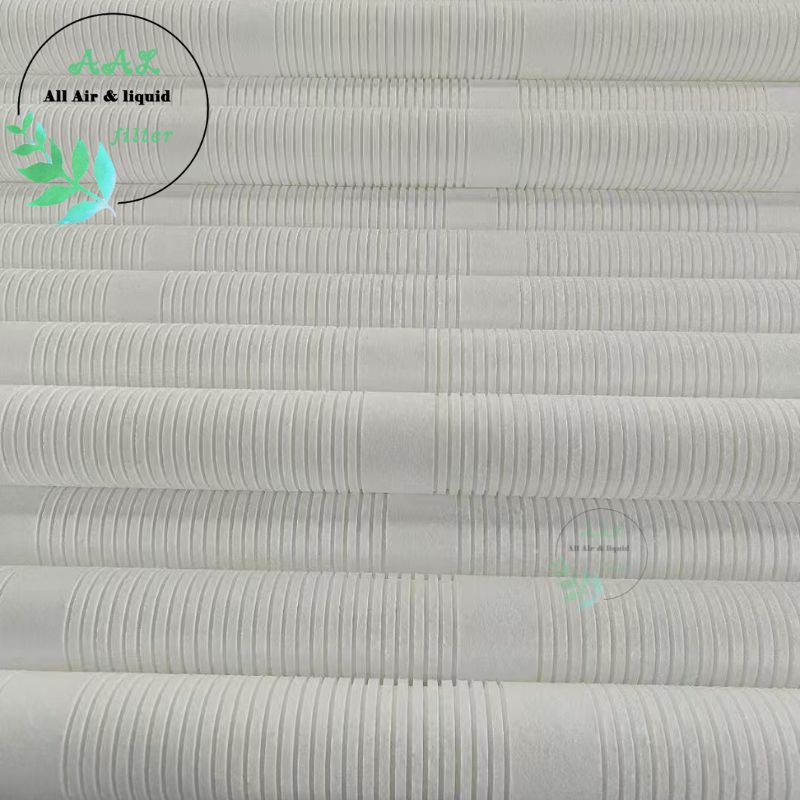

Unlike standard melt-blown cartridges, it features a unique exterior groove design that significantly increases the filtration surface area, enhancing dirt-holding capacity and extending service life.
The filtration media forms a three-dimensional microporous structure, with grooves guiding flow and maximizing surface interaction.
Its graded density structure—fine fibers on the outer layer, coarse fibers in the middle, and a dense inner core—delivers multi-layered depth filtration, capturing suspended solids, particulates, and rust with high efficiency.
This design provides low pressure drop, excellent pollutant retention, and long-lasting filtration performance with minimal maintenance. Ideal for water treatment, chemical processing, food & beverage, and other industrial filtration systems.
Key Features:
✅ Enhanced Filtration Surface Area: Groove design increases the surface area for improved filtration efficiency.
✅ High Filtration Performance: 1, 5, and 10-micron nominal filtration capabilities.
✅ Superior Contaminant Removal: Effectively reduces chlorine taste and odor, VOCs, pesticides, and other impurities.
✅ High Dirt Holding Capacity: Extends filter lifespan, reducing the need for frequent replacement.
✅ Ideal for RO Applications: Perfect for pre-filtration or pre-treatment in Reverse Osmosis (RO) systems.
✅ Standard Compatibility: Designed to fit most standard-sized filter housings.
✅ Long Service Life: Cartridge replacement recommended every 6-10 months or when a significant pressure drop occurs.
Specifications:
Product Name | Deep-Groove Melt Blown Filter Cartridge | |||
Length | 10" | 20" | 30" | 40" |
Flow(t/h) | 0.5 | 1 | 1.5 | 2 |
Area(㎡) | 0.5 | 1 | 1.5 | 2 |
Diameter(Standard) | OD(63mm), ID(30mm) | |||
Diameter(Jumbo) | OD(115mm), ID(30mm) | |||
Material | PP Polypropylene | |||
Micron rating(μm) | 1, 5, 10, 25, 50, 75, 100, 150, 200 | |||
Tech Support
Removal Rating: 1,3,5,10,25,50,100,150um
Maximum Differential Pressure: 2.0 bar @21°C
Maximum Operating Temperature: 65°C
Applications
✅ Industrial Manufacturing: Ensures efficient filtration in various industrial processes.
✅ Petrochemical: Ideal for filtering oils, solvents, and chemicals in petrochemical processing.
✅ Pharmaceutical: Provides clean water and liquid filtration in pharmaceutical production.
✅ Food & Beverage: Removes contaminants in the production of food and beverages, including beer, wine, and spirits.
✅ Water Treatment: Used for pre-treatment and purification in municipal and industrial water treatment systems.
✅ Wastewater Treatment: Effective in filtering contaminants in wastewater treatment systems.
