Polypropylene PP Melt Blown sediment Filter Cartridge
- High Filtration Efficiency
- Superior Contaminant Removal
- Long Service Life
- Ideal for RO Systems
- Universal Compatibility
- Low Pressure Drop

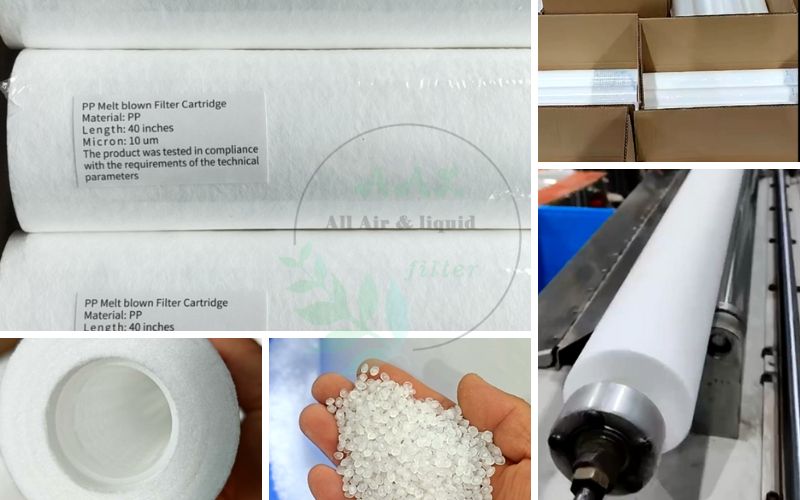

PP melt blown filter cartridge
Product Overview

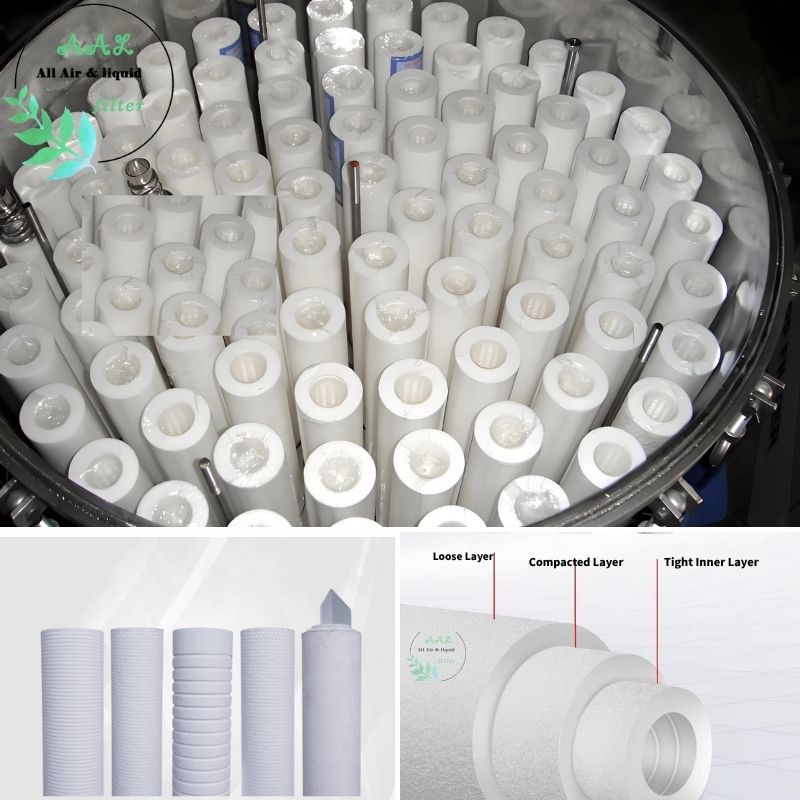

The PP Melt Blown Filter Cartridge is manufactured by fusing polypropylene resin without the use of chemical adhesives. The filtration media is randomly bonded, creating a 3D microporous structure. This design results in three distinct layers: fine fibers on the surface, coarse fibers in the middle, and a deep filtration zone. The unique structure offers high filtration ratings, excellent pollutant retention, and low-pressure drop. The gradual density change from outer to inner layers ensures strong pollutant holding capacity, making it highly effective at removing contaminants such as suspended solids, particulates, and rust. This provides long-lasting filtration performance with minimal maintenance.
Key Features:
✅ High Filtration Performance: 1, 5, and 10-micron nominal filtration capabilities.
✅ Superior Contaminant Removal: Effectively reduces chlorine taste and odor, VOCs, pesticides, and other impurities.
✅ High Dirt Holding Capacity: Extends filter lifespan, reducing the need for frequent replacement.
✅ Ideal for RO Applications: Perfect for pre-filtration or pre-treatment in Reverse Osmosis (RO) systems.
✅ Standard Compatibility: Designed to fit most standard-sized filter housings.
✅ Long Service Life: Cartridge replacement recommended every 6-10 months or when a significant pressure drop occurs.
Specifications:
Product Name | PP melt blown filter cartridge | |||
Length | 10" | 20" | 30" | 40" |
Flow(t/h) | 0.5 | 1 | 1.5 | 2 |
Area(㎡) | 0.5 | 1 | 1.5 | 2 |
Diameter(Standard) | OD(63mm), ID(30mm) | |||
Diameter(Jumbo) | OD(115mm), ID(30mm) | |||
Material | PP Polypropylene | |||
Micron rating(μm) | 1, 5, 10, 25, 50, 75, 100, 150, 200 | |||
Tech Support
Our team is available for troubleshooting, technical assistance, and to help you select the right filtration solutions for your applications.
Applications
✅ Paints & Oil: Used in filtering impurities in the coating process.
✅ Wastewater Treatment: Ideal for pre-treatment in industrial water filtration systems.
✅ Pharmaceuticals: Ensures clean water and liquids for medical and biopharmaceutical applications.
✅ Food & Beverage: Removes contaminants in beverage production, including beer, wine, and spirits.
✅ Chemicals: Ideal for filtering solvents, oils, and chemicals in various industrial processes.
✅ Electronics Industry: Ensures high-purity filtration for semiconductor and electronics manufacturing.
✅ Paints & Oil: Used in filtering impurities in the coating process.
✅ Wastewater Treatment: Ideal for pre-treatment in industrial water filtration systems.
✅ Pharmaceuticals: Ensures clean water and liquids for medical and biopharmaceutical applications.
✅ Food & Beverage: Removes contaminants in beverage production, including beer, wine, and spirits.
✅ Chemicals: Ideal for filtering solvents, oils, and chemicals in various industrial processes.
✅ Electronics Industry: Ensures high-purity filtration for semiconductor and electronics manufacturing.
