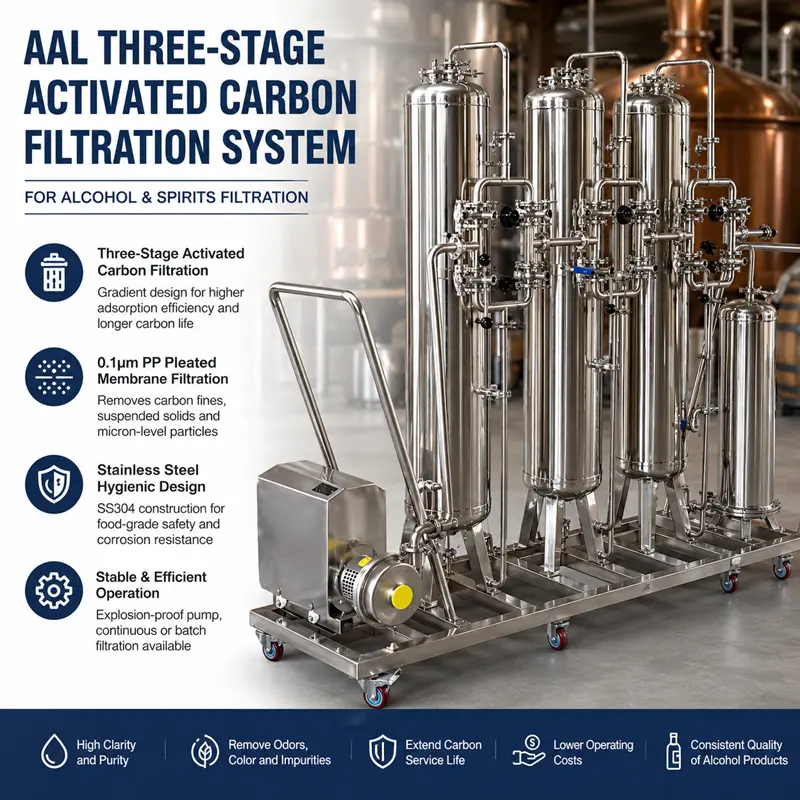

AAL Three-Stage Activated Carbon Filtration System for Alcohol & Spirits Filtration

The AAL Three-Stage Activated Carbon Filtration System is a high-performance filtration solution specifically engineered for the purification and polishing of alcohol, spirits, and food-grade ethanol. Combining three-stage gradient activated carbon adsorption with 0.1 μm PP pleated membrane filtration, the system effectively removes odors, color compounds, organic impurities, activated carbon fines, and suspended particles while preserving the original flavor characteristics of the alcohol.

Compared with conventional single-stage carbon filtration, the multi-stage design distributes the adsorption load across three filtration stages, significantly improving adsorption efficiency, extending activated carbon service life, and reducing operating costs.

Designed for industrial distilleries and beverage manufacturers, the system can be installed after distillation, before storage, after blending, or prior to bottling, delivering consistently clear, stable, and high-quality alcohol products.

Key Features

Three-Stage Gradient Activated Carbon Filtration

The system incorporates three activated carbon filter vessels connected in series to provide progressive impurity removal throughout the filtration process.

The gradient activated carbon design improves adsorption efficiency, reduces the filtration load on downstream stages, and significantly extends the service life of the activated carbon media.

0.1 μm PP Pleated Membrane Final Polishing

Following activated carbon adsorption, the alcohol passes through a precision PP pleated membrane filtration stage to remove:

· Activated carbon fines

· Suspended solids

· Micron-sized particles

This final polishing stage ensures exceptional clarity and product stability before storage or bottling.

Hygienic Stainless Steel Construction

All liquid-contact components are manufactured from SS304 stainless steel, providing excellent corrosion resistance, hygienic performance, and long-term durability for food and beverage applications.

Sanitary Tri-Clamp connections allow quick installation, easy maintenance, and simplified cleaning.

Designed for Continuous Industrial Operation

Equipped with an explosion-proof pump, the system is suitable for alcohol production environments and supports both continuous inline filtration and batch filtration processes.

Modular Design for Easy Maintenance

The modular system design enables fast replacement of filter cartridges and activated carbon media, minimizing downtime and simplifying routine maintenance.

Technical Specifications

 Typical Applications

The AAL Three-Stage Activated Carbon Filtration System is widely used throughout the alcohol production process to improve product clarity, consistency, and overall quality.

Typical applications include:

· Baijiu (Chinese Liquor) Filtration

· Vodka Filtration

· Whisky Filtration

· Rum Filtration

· Gin Filtration

· Brandy Filtration

· Neutral Spirits Filtration

· Grain Alcohol Purification

· Food-Grade Ethanol Filtration

· Alcohol Polishing Before Storage

· Final Filtration Before Bottling

· Distillery Production Lines

The system is commonly installed after distillation, before storage tanks, after blending, or immediately before bottling to ensure consistently high-quality finished products.

Frequently Asked Questions (FAQ)

Q1. Why choose a three-stage activated carbon filtration system instead of a single-stage filter?

A three-stage filtration system distributes the adsorption process across multiple stages, resulting in higher impurity removal efficiency, more stable filtration performance, longer activated carbon service life, and lower operating costs.

Q2. What is the purpose of the 0.1 μm PP pleated membrane filter?

The PP pleated membrane filter serves as the final polishing stage, removing activated carbon fines, suspended particles, and micron-sized contaminants to produce crystal-clear alcohol ready for storage or bottling.

Q3. What types of alcohol can this filtration system process?

The system is suitable for a wide range of distilled alcoholic beverages, including Baijiu, Vodka, Whisky, Gin, Rum, Brandy, Neutral Spirits, Grain Alcohol, and Food-Grade Ethanol.

Q4. Can the filtration system be customized?

Yes. AAL Filter provides customized solutions based on production capacity, alcohol type, filtration accuracy, process requirements, and installation conditions.

Q5. Is the system suitable for continuous production?

Yes. The system supports both continuous inline filtration and batch filtration, making it suitable for small, medium, and large-scale distillery operations.

Partner with AAL Filter for Professional Alcohol Filtration Solutions

AAL Filter specializes in the design and manufacture of high-performance filtration systems for distilleries, alcohol producers, and beverage processing industries. Our Three-Stage Activated Carbon Filtration System combines efficient activated carbon adsorption with precision membrane filtration to deliver superior clarity, stable product quality, and consistent filtration performance.

Whether you require equipment selection, customized filtration system design, process optimization, technical consultation, or project support, our experienced engineering team is ready to help you find the most suitable solution for your production line.

Contact AAL Filter today to discuss your alcohol filtration requirements, request technical support, obtain product specifications and quotations, or explore customized filtration solutions for your distillery or beverage processing facility.
