4V 5V-Cell High Flow Hepa Air Filter

Product Overview

The V-bank High Flow High-Efficiency Air Filter is designed to provide superior filtration performance while ensuring high airflow capacity and low resistance. Featuring a multi-pocket V-bank structure, this filter maximizes the filtration surface area, reducing pressure drop and increasing efficiency. Compared to standard HEPA filters, the V-Cell design supports higher air volume applications, making it ideal for HVAC systems with space constraints or large airflow demands.

Engineered for use in commercial and industrial air handling systems, this high-efficiency air filter effectively captures fine particles (≥0.3μm), protecting HVAC equipment, cleanrooms, and work environments from airborne contaminants.

Key Features

✅ High airflow capacity – V-cell design increases filtration area, allowing for higher air volume than standard HEPA filters.

✅ Low resistance – Gradient-density fiber structure reduces pressure drop, optimizing energy efficiency.

✅ Superior filtration efficiency – Available in H10–H14 filtration grades for cleanroom and high-purity air applications.

✅ Leakage tested – Ensures consistent filtration performance and air-tight integrity.

✅ Versatile design – Adaptable with pocket filters and compatible with various HVAC system configurations.

✅ Durable construction – Available in plastic, aluminum alloy, galvanized steel, or stainless steel frames for long-term reliability.

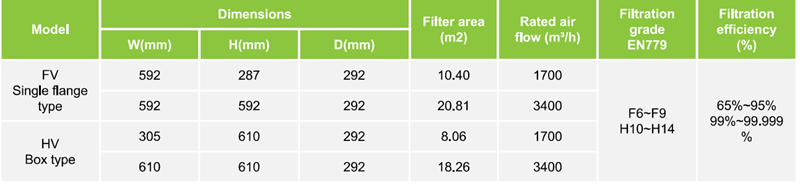

Specifications

· Filtration Class: H10, H11, H12, H13, H14 (EN1822)

· Particle Capture Size: ≥0.3μm

· Efficiency Ratings: 99%, 99.9%, 99.99%, 99.999% (ASHRAE 52.1-1992)

· Humidity Resistance: ≤100% RH

· Temperature Resistance: Continuous ≤80℃, Instantaneous ≤100℃

· Filter Material: Ultra-thin glass fiber filter paper, synthetic fiber filter media

· Frame Options: Plastic, aluminum alloy, galvanized steel, stainless steel

· Sealant: Foamed EVA, AB two-component glue

· Separator: Hot fusion glue

Applications

The V-Cell HEPA Filter is widely used as an intermediate or final-stage air filter in commercial and industrial air conditioning systems, particularly where high airflow and compact installation space are required.

✅ Cleanroom ventilation systems – Used as an end-stage filter in dust-free environments such as microelectronics and pharmaceutical industries.

✅ High-airflow HVAC systems – Ideal for large-volume ventilation in commercial buildings, hospitals, and manufacturing facilities.

✅ Industrial applications – Applied in electronics, optics, semiconductors, coating, chemical processing, cosmetics, pharmaceuticals, and automobile industries.
