Deep-Pleat Separator HEPA Air Filter

Product Overview

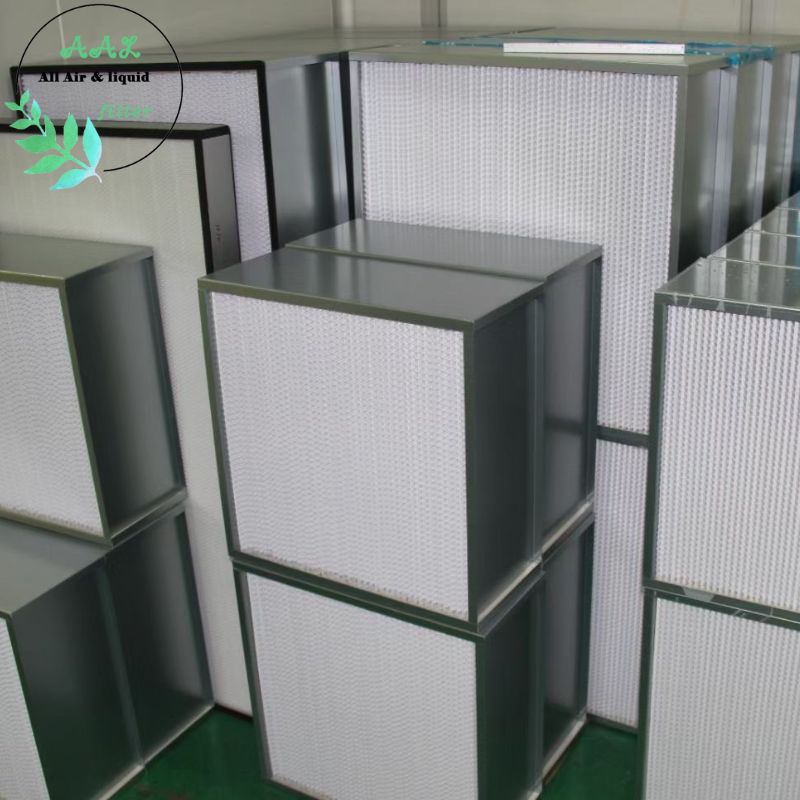

The Deep-Pleat Separator HEPA Air Filter is designed for high-efficiency air purification in cleanrooms and critical environments, featuring a thickness greater than 150mm. Unlike mini-pleat HEPA filters, this filter utilizes corrugated paper or aluminum foil separators, which increase airflow capacity, enhance structural stability, and ensure uniform air distribution. The larger filter depth allows for higher airflow rates, making it ideal for high-demand HVAC systems in industries such as pharmaceuticals, microelectronics, semiconductors, coatings, and healthcare.

Key Features

✅ High Efficiency & High Airflow – Captures 99.99% of airborne particles down to 0.3µm while supporting larger airflow rates
✅ Thicker Design (≥150mm) – Increases dust-holding capacity and extends service life
✅ Paper or Aluminum Foil Separator – Paper separators are lightweight and economical, while aluminum separators provide higher heat resistance and durability
✅ Low Resistance – Optimized pleat spacing ensures minimal pressure drop and energy savings
✅ Customizable Sizes & Frame Materials – Available in various dimensions to meet specific system requirements

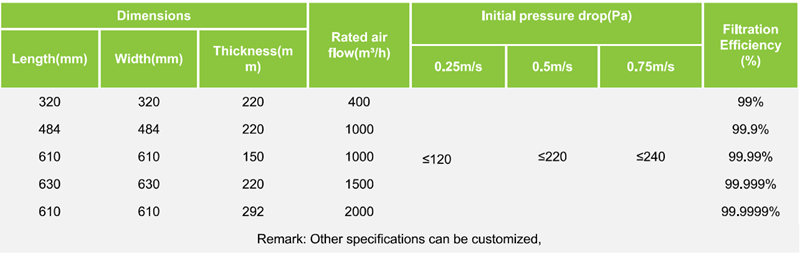

Specifications

· Filtration Class: H10, H11, H12, H13, H14 (EN1822)

· Filtration Target: Particles ≥0.5µm, ≥0.3µm

· Efficiency: 99%, 99.9%, 99.99%, 99.999% (ASHRAE 52.1-1992)

· Airflow Capacity: Higher than mini-pleat HEPA filters due to increased filter thickness

· Humidity Resistance: ≤100% RH

· Temperature Resistance:

o Paper Separator: ≤80°C (continuous), ≤100°C (instantaneous peak)

o Aluminum Separator: ≤300°C (continuous), ≤350°C (instantaneous peak)

· Filter Media: Ultra-thin glass fiber filter paper, artificial fiber filter paper

· Separator Material:

o Corrugated double-glue paper – Cost-effective, lightweight, suitable for general cleanrooms

o Corrugated aluminum foil – More durable, heat-resistant, ideal for high-temperature environments

· Sealant Glue: AB component glue

· Sealant Strip: Foamed EVA

· Outer Frame Options:

o Aluminum alloy

o Galvanized steel

o Stainless steel (SUS 201, SUS 304)

o Plastic frame / Wooden frame

Applications

The Deep-Pleat HEPA Filter is an essential component in high-performance air filtration systems, providing both high airflow and high efficiency:

✅ Cleanroom HVAC systems – Terminal filtration for pharmaceutical, semiconductor, and microelectronics industries
✅ FFU (Fan Filter Unit) Systems – Ensures consistent airflow and contamination control
✅ Microelectronics & Optics – Prevents particulate contamination in precision manufacturing
✅ Coating & Painting Facilities – Eliminates fine particles that affect product quality
✅ Chemical & Pharmaceutical Plants – Maintains sterile production environments
✅ Medical & Hospital Air Filtration – Used in operating rooms, isolation wards, and laboratories
