A3M Series High Flow Filter Cartridge is a high-performance liquid filtration solution designed as a reliable replacement for 3M High Flow Water Filter Cartridges.

Designed with multi-layer gradient depth polypropylene (PP) fiber media, a reinforced inner support core, and a protective outer support cage, the A3M Series delivers high dirt-holding capacity, reliable mechanical strength, and stable performance under high-flow operating conditions. Its 6.5-inch large-diameter design provides an extended effective filtration area, helping reduce the number of cartridges required in large-scale filtration systems.

Compared with conventional sediment filter cartridges such as melt blown and string wound filters, A3M high flow cartridges offer higher flow capacity per element and greater contaminant-holding capacity in suitable applications, helping extend service life and reduce cartridge replacement frequency. They are widely used for industrial water filtration, RO system pre-filtration, seawater desalination, power generation, and industrial process liquid filtration.

As a professional high flow filter cartridge manufacturer, AALFilter provides a wide range of high flow filter end connection options and replacement solutions for cartridges from 3M, Pall, Parker, Pentair, and other major filtration suppliers.

What Is A3M Series High Flow Filter Cartridge?

A3M Series High Flow Filter Cartridge is designed for industrial applications requiring high flow rates, high dirt-holding capacity, and reliable filtration performance.

The cartridge features multi-layer gradient depth polypropylene fiber media, arranged in a layered structure to maximize effective filtration performance within its large-diameter design. The graded pore structure helps retain contaminants throughout the depth of the filter media, supporting high dirt-holding capacity and extended service life.

With its 6.5-inch large outer diameter, the A3M Series provides high flow capacity per cartridge compared with conventional 2.5-inch filter cartridges. This design can reduce the total number of cartridges required, helping minimize housing space requirements, maintenance workload, and operating costs in large-scale filtration systems.

The cartridge incorporates a reinforced inner support core, protective outer support cage, and locking-type sealing mechanism. These components help maintain structural integrity and secure sealing when the cartridge is correctly installed in a compatible housing.

The A3M Series is designed for high-flow industrial liquid filtration, particularly RO membrane pre-filtration, where effective removal of suspended particles helps protect downstream reverse osmosis membranes and maintain stable system operation.

Key Features

1. Large Filtration Area · High Flow Capacity

The 6.5-inch large-diameter design, combined with multi-layer gradient depth polypropylene fiber media, provides a large effective filtration area and high flow capacity per cartridge.

This design helps reduce the number of cartridges needed for high-volume filtration systems, potentially lowering housing requirements, replacement frequency, and maintenance costs.

2. Multi-Layer Gradient Depth Filtration

The A3M Series uses multi-layer gradient depth PP fiber media to capture contaminants throughout the filter media.

Its graded filtration structure provides high dirt-holding capacity and supports longer service life in suitable applications, making it a practical solution for industrial water treatment and process liquid filtration.

3. Locking Seal Design · High-Strength Support Structure

The integrated locking-type sealing mechanism helps secure the cartridge in a compatible filter housing and minimize bypass leakage when correctly matched and installed.

The reinforced inner support core and protective outer support cage provide mechanical support for the filtration media, helping maintain cartridge integrity under high-flow operating conditions.

4. Outside-to-Inside Flow Configuration

The A3M Series uses an outside-to-inside filtration configuration, with liquid flowing from the outer surface through the filter media toward the inner core.

This arrangement supports contaminant retention within the media and allows filtered liquid to flow toward the internal outlet. Actual differential-pressure performance depends on the cartridge specification and operating conditions.

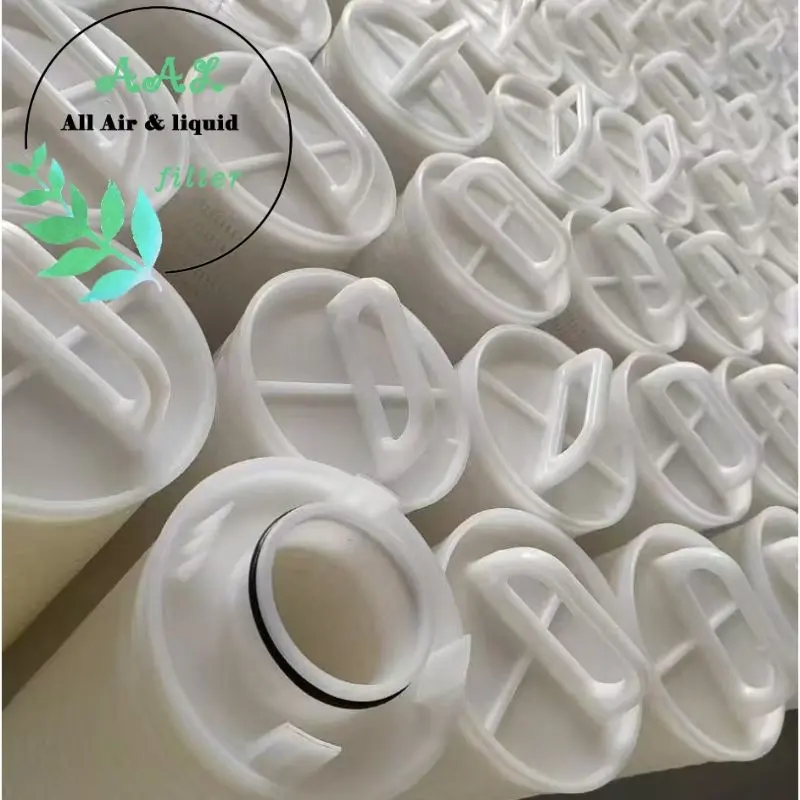

5. Integrated Handle for Easy Replacement

The built-in top handle allows convenient cartridge installation and removal from the top of a compatible filter housing.

This practical design simplifies routine maintenance, reduces handling effort, and helps shorten cartridge replacement time.

6. FDA-Compliant Filter Media Materials

The polypropylene filter media materials comply with applicable FDA requirements, making the A3M Series suitable for selected applications where material safety is important.

For food and beverage applications, confirm the compliance documentation for the specific media grade and all relevant wetted components before use.

7. Multiple Micron Ratings and Length Options

A3M Series High Flow Filter Cartridges are available in different filtration ratings and cartridge lengths to meet various industrial filtration requirements.

Customized specifications can be developed according to customer flow requirements, housing dimensions, fluid characteristics, and operating conditions.

Cartridge Length, Filtration Area & Recommended Flow Rate

Order Information

Applications of A3M Series High Flow Filter Cartridge

Water Treatment and RO System Pre-Filtration

A3M high flow cartridges are suitable for:

· RO system pre-filtration

· Reverse osmosis membrane protection

· Industrial process water filtration

· Cooling water filtration

· Industrial wastewater treatment

· Seawater desalination pretreatment

Their high-capacity design helps remove suspended particles before downstream treatment processes, supporting reliable operation of RO membranes and other sensitive equipment.

Power Generation

Typical applications include:

· Power plant feed water pretreatment

· Condensate system filtration

· Cooling water filtration

· Industrial process water filtration

The appropriate cartridge rating should be selected according to the specific system requirements.

Steel and Metallurgical Industry

The A3M Series can be used for:

· Steel mill circulating water filtration

· Process water treatment

· Industrial cooling water filtration

· Equipment protection filtration

Its high flow capacity makes it suitable for large-volume industrial water systems.

Food and Beverage Industry

Suitable applications include process water and production water filtration where the selected filter media and component materials meet the required safety and regulatory standards.

Microelectronics Industry

The A3M Series can be applied to selected process water pretreatment systems and upstream filtration stages for ultrapure water production. Final filtration requirements depend on the required water quality and downstream treatment process.

Chemical and Petrochemical Industry

The cartridge can be used for compatible industrial process liquids, including selected chemical solutions, brine, and process water.

Before use, verify the chemical compatibility of the polypropylene media, support components, and sealing materials against the actual fluid composition and operating temperature.

Why Choose AALFilter A3M Series High Flow Filter Cartridge?

AALFilter provides high flow filter cartridge replacement solutions for industrial filtration systems requiring reliable performance and flexible product configurations.

The A3M Series combines large-diameter construction, gradient depth filtration media, reinforced support cages, and a locking-type sealing design to support high-capacity liquid filtration applications.

AALFilter can assist customers with:

· 3M High Flow Water Filter Cartridge replacement

· Cartridge length and micron rating selection

· End connection and sealing compatibility

· Customized cartridge specifications

· OEM and replacement filtration solutions

When replacing an existing 3M high flow cartridge, customers can provide the original model number, dimensions, end connection, filtration rating, and operating conditions to help confirm compatibility.
