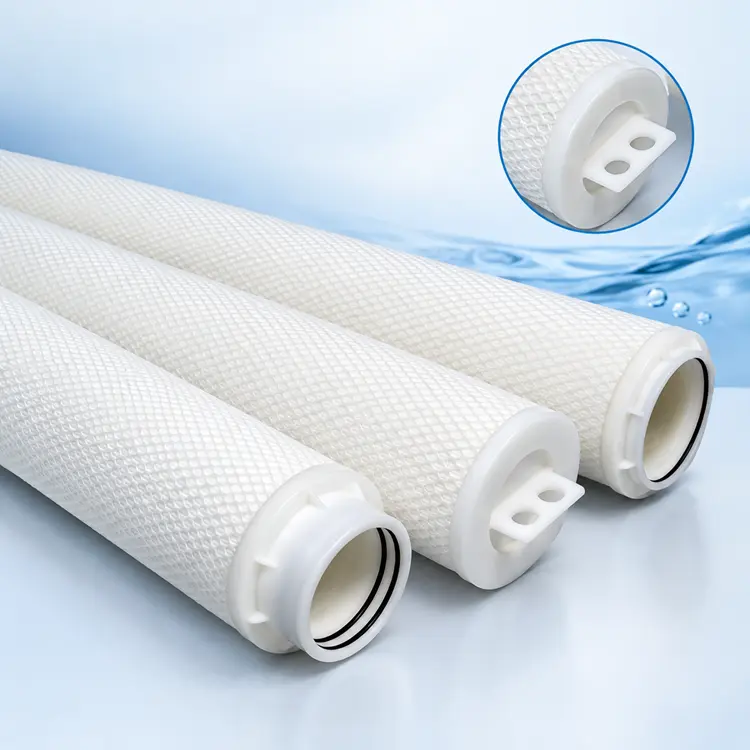

APK Series High Flow Filter Cartridge is a high-performance liquid filtration solution designed as a reliable replacement for Parker High Flow Water Filter Cartridges.

Designed with deep fine filtration media, a reinforced inner support core, and a protective outer mesh cage, the APK Series delivers high dirt-holding capacity, reliable mechanical strength, and stable performance under high-flow operating conditions. Its outside-to-inside flow configuration allows liquid to pass through the filter media from the outer surface toward the inner core, helping retain contaminants while protecting downstream equipment.

Compared with conventional sediment filter cartridges such as melt blown and string wound filters, APK high flow cartridges offer a larger effective filtration area and high flow capacity, helping reduce the number of cartridges required in industrial filtration systems. They are widely used for industrial water filtration, RO security filtration, seawater desalination pretreatment, power generation, and process liquid filtration.

As a professional high flow filter cartridge manufacturer, AALFilter provides a wide range of high flow filter end connection options and customized replacement solutions for cartridges from Parker, Pall, 3M, Pentair, and other major filtration suppliers.

What Is APK Series High Flow Filter Cartridge?

APK Series High Flow Filter Cartridge is designed for industrial applications requiring high flow rates, reliable particle retention, and extended filter service life.

The cartridge features a deep fine filtration media structure supported by a reinforced inner core and protected by an external mesh cage. Its multi-layer gradient pore structure helps capture contaminants throughout the media depth, improving dirt-holding capacity and supporting consistent filtration performance.

The outside-to-inside filtration design allows liquid to flow from the outside of the cartridge toward the internal outlet. Combined with its reinforced support structure, this configuration helps the cartridge withstand differential pressure during operation and maintain structural stability under demanding filtration conditions.

The internally sealed, single open-end design helps prevent bypass leakage when correctly matched with the filter housing and sealing components. An integrated end handle also facilitates cartridge installation and removal, simplifying routine maintenance.

APK Series high flow filter cartridges are particularly suitable for RO security filtration and seawater desalination pretreatment, where effective particle removal helps protect downstream reverse osmosis membranes and support stable system operation.

Key Features

1. Parker High Flow Filter Cartridge Replacement

The APK Series is designed as a replacement solution for Parker High Flow Water Filter Cartridges.

Multiple end connection configurations and customizable specifications are available to support different filtration system requirements. AALFilter can help customers identify suitable replacement cartridges according to the original cartridge dimensions, end connections, filtration ratings, and operating conditions.

2. Outside-to-Inside Flow Configuration

The APK Series adopts an outside-to-inside filtration direction, with liquid flowing from the outer surface through the filter media toward the inner core.

This configuration, combined with the reinforced support structure, helps the cartridge withstand differential pressure during filtration and maintain stable performance under high-flow operating conditions.

3. Reinforced Inner Core with Protective Outer Mesh

The cartridge features a reinforced inner support core and an external protective mesh cage.

The inner core provides mechanical support for the filtration media, while the outer mesh helps protect the media from external damage and supports the cartridge structure during handling and operation.

This construction helps maintain cartridge integrity and reliable filtration performance throughout the service cycle.

4. Deep Graded Filtration Structure

The APK Series uses deep fine filtration media with a multi-layer gradient pore structure.

Different layers contribute to particle retention throughout the media depth, helping improve dirt-holding capacity and extend service life compared with conventional sediment filter cartridges in suitable applications.

The optimized filtration structure is particularly useful for high-capacity liquid filtration systems where consistent particle removal and reduced maintenance frequency are important.

5. Internally Sealed, Single Open-End Design

The internally sealed, single open-end configuration helps prevent unfiltered liquid from bypassing the filtration media when correctly matched with the filter housing and sealing components.

The effective outlet design also supports liquid discharge through the cartridge's open end, contributing to efficient flow through the filtration system.

6. Integrated End Handle for Easy Replacement

The integrated handle allows operators to lift, install, and remove the cartridge more conveniently during routine maintenance.

This practical design helps simplify cartridge replacement, reduce maintenance effort, and improve handling efficiency.

7. FDA-Compliant Filter Media Materials

Filter media materials comply with applicable FDA requirements, making the APK Series suitable for selected applications where material safety is important.

For food and beverage applications, final suitability should be confirmed based on the specific material grades, wetted components, operating conditions, and applicable regulatory requirements.

8. Multiple Micron Ratings and Length Options

The APK Series is available in different filtration ratings and cartridge lengths to accommodate various industrial filtration requirements.

Customized specifications can be developed according to customer flow requirements, housing dimensions, and operating conditions.

Cartridge Length, Filtration Area & Recommended Flow Rate

Order Information

Applications of APK Series High Flow Filter Cartridge

Water Treatment and RO Security Filtration

The APK Series is suitable for high-capacity water filtration applications, including:

· RO system security filtration

· Reverse osmosis membrane protection

· Process water filtration

· Industrial wastewater treatment

· Cooling water filtration

· Seawater desalination pretreatment

By retaining suspended particles before downstream treatment equipment, the cartridge helps protect sensitive components and maintain stable system operation.

Power Generation

Suitable applications include:

· Power plant process water filtration

· Cooling water filtration

· Feed water pretreatment

· Condensate system protection, where the cartridge materials and filtration rating are appropriate

Steel and Machinery Industries

The APK Series can be used for:

· Steel mill circulating water filtration

· Industrial cooling water treatment

· Machinery manufacturing process water

· Equipment protection filtration

Its high-capacity design is suitable for industrial systems that require reliable filtration at relatively high flow rates.

Food and Beverage Processing

The cartridge can be used for selected process water and production water filtration applications where the filter media and component materials meet the required material safety standards.

Final selection should consider the fluid composition, temperature, sanitation requirements, and applicable regulations.

Chemical and Petrochemical Industry

The APK Series may be used for compatible process liquids, including selected chemical solutions, brine, and industrial process water.

Chemical compatibility should be verified against the specific fluid composition, temperature, and operating conditions before selection.

Why Choose AALFilter APK Series High Flow Filter Cartridge?

AALFilter provides industrial high flow filtration solutions for customers seeking reliable replacement cartridges and flexible product configurations.

With customizable cartridge lengths, micron ratings, and end connections, the APK Series can be specified to suit different filter housings and process requirements.

Whether you need a Parker High Flow Water Filter Cartridge replacement or a high-capacity cartridge for RO security filtration, seawater desalination, or industrial process water treatment, AALFilter can help you identify a suitable filtration solution.

Explore AALFilter's range of high flow filter cartridges, liquid filter housings, and industrial filtration solutions.

Partner with AALFilter for high flow filter cartridge replacement solutions and customized filtration designs according to your application requirements.
