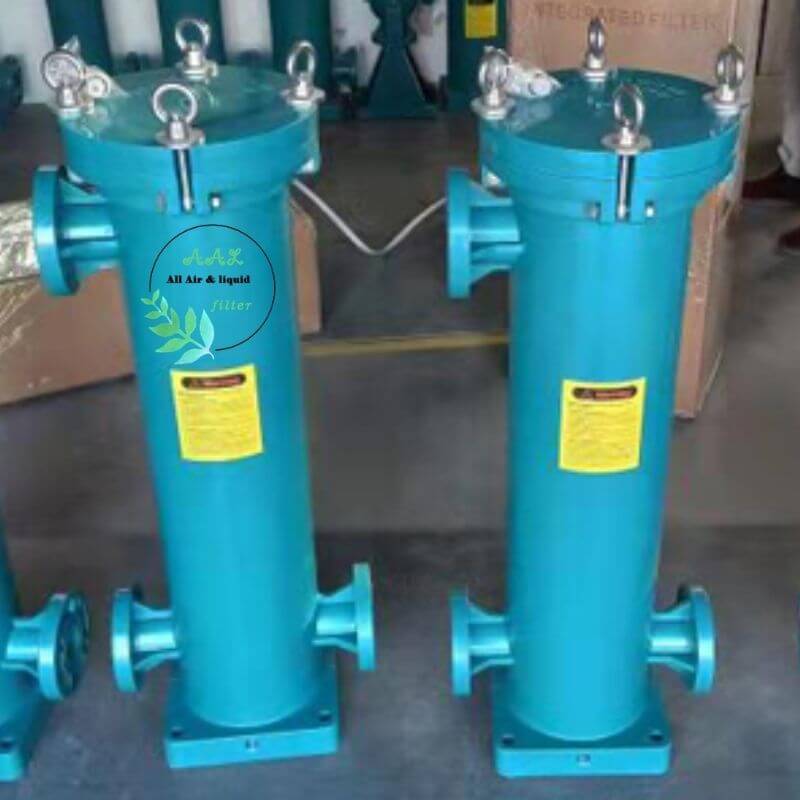

PP #2 Bag Filter Housing with Swing Bolt Closure for Chemical Filtration
- Swing Bolt Cap Design---Enables quick filter bag replacement with excellent sealing performance, tool-free operation
- Superior Chemical Resistance---PPH material withstands strong acids, alkalis, and harsh chemicals
- High-Pressure Tolerance---Stable operation under 8 bar pressure, with mechanical strength surpassing ordinary plastics and stainless steel
- Leak-Proof Structure---Seamless one-piece molding with dual Viton® fluoropolymer seals for zero leakage
- High Efficiency & Energy Saving---Supports 40 m³/h flow rate and 0.5 m² filtration area, reducing energy consumption and operational costs
- Multi-Industry Compatibility---Suitable for high-corrosion applications in petrochemical, seawater desalination, electroplating, and more

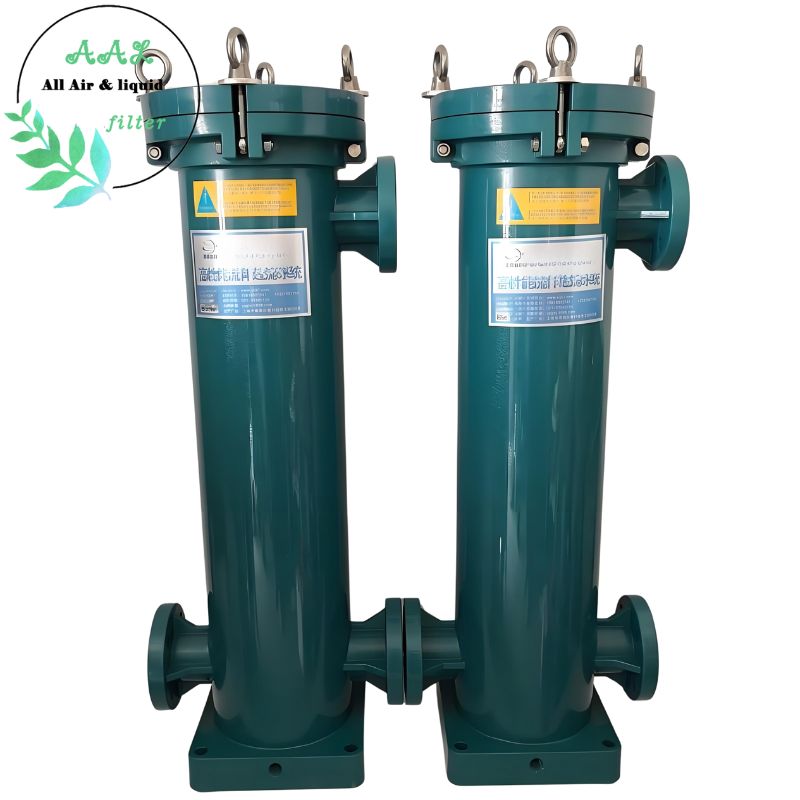

PP Size #2 Bag Filter Housing with Swing Bolt Cap
Product Overview
AALfilter’s PP Size #2 Filter Bag Housing is a high-performance solution for chemical filtration, specially engineered for strong acids, alkalis, and other corrosive liquids. Made from Polypropylene Homopolymer (PPH) with reinforced injection molding, this housing offers superior chemical resistance and overcomes the limitations of stainless steel and conventional plastic filter housings.
Equipped with a swing bolt cap type design, it allows quick and secure filter bag replacement while ensuring a tight seal. With no welding points, the structure is robust, leak-proof, and suitable for a variety of industrial applications.
Key Features
✅ Swing bolt cap design: Provides excellent sealing and allows easy bag replacement.
✅ Superior chemical resistance: Withstands acids, alkalis, and harsh chemicals.
✅ Enhanced mechanical strength: High-pressure resistance with a reinforced PPH structure.
✅ No welding joints: Eliminates leakage risks and enhances durability.
✅ High filtration efficiency: Large flow rate and stable filtration performance.
✅ Low maintenance costs: Tool-free bag changes for easy operation.
✅ Flange connections: Compatible with standard pipe systems.
Specifications
Parameter | Details |
Housing Material | PPH (Polypropylene Homopolymer) |
Housing Direction | Vertical |
Bag Size | Size #2: Φ7"x32" (Φ180x810mm) |
Number of Bags | Single |
Housing Thickness | 16mm |
Filtration Rating | 1μm - 800μm |
Connection Type | Flange |
Inlet/Outlet Size | DN50, DN65, DN80 |
Sealing Type | Swing Bolt Cap Type |
Seal Material | Viton |
Max. Temperature | 90°C |
Max. Pressure | 116 psi (8 bar) |
Flow Rate | 40 m³/h (for Size #2 bag) |
Filtration Area | 0.5㎡ |
Bag Housing Capacity | 32L |
Weight | 24.2kg |
Tech Support
Our dedicated support team provides:
✅ Installation & Setup Assistance: Step-by-step guidance for optimal performance.
✅ Customization Services: Adaptations to meet specific industrial needs.
✅ Maintenance Support: Ensuring longevity with timely servicing and spare parts.
✅ Filtration System Optimization: Enhancing efficiency for demanding applications.
Applications
PPC Series Reinforced PP Bag Filter Housing is suitable for a wide range of industrial filtration applications, including:
✅ Petrochemical Industry: Efficient filtration of chemicals and hydrocarbons.
Food & Beverage Processing: Ensures purity in food-grade liquid processing.
✅ Chemical Filtration: Resistant to aggressive chemicals used in production.
✅ Industrial Wastewater Treatment: Filters contaminants for regulatory compliance.
✅ Seawater Desalination: Removes particulates and extends membrane life.
✅ Electroplating Industry: Eliminates unwanted particulates from plating baths.
✅ Pharmaceutical Industry: Provides high-purity filtration for critical processes.
