AAL Stainless Steel Water Filter Cartridge Housing for RO Filtration
- Sanitary Dead-Zone-Free Design Compliant with GMP/FDA standards, the inner wall features mirror polishing (Ra≤0.3μm) to ensure no residual liquid. Supports online high-temperature steam sterilization (121℃±2℃)
- High-Precision and Efficient Filtration Minimum filtration precision of 0.1μm, compatible with pleated filter cartridges, with low adsorption. Flow rate ranges from 0.5 to 2 m³/h (single cartridge)
- Corrosion Resistance and High-Pressure Tolerance Made of SS304/316L material, resistant to acids and alkalis, with a temperature resistance of 130℃ and a design pressure of 1.0 MPa
- Flexible Configuration and Quick Maintenance Supports multiple filter cartridge sizes (10"-40"), features Tri-Clamp/flange quick-open
- Full Industry Compatibility Compatible with industries. Provides filter cartridge options in various materials, including PE, PP, and PTFE

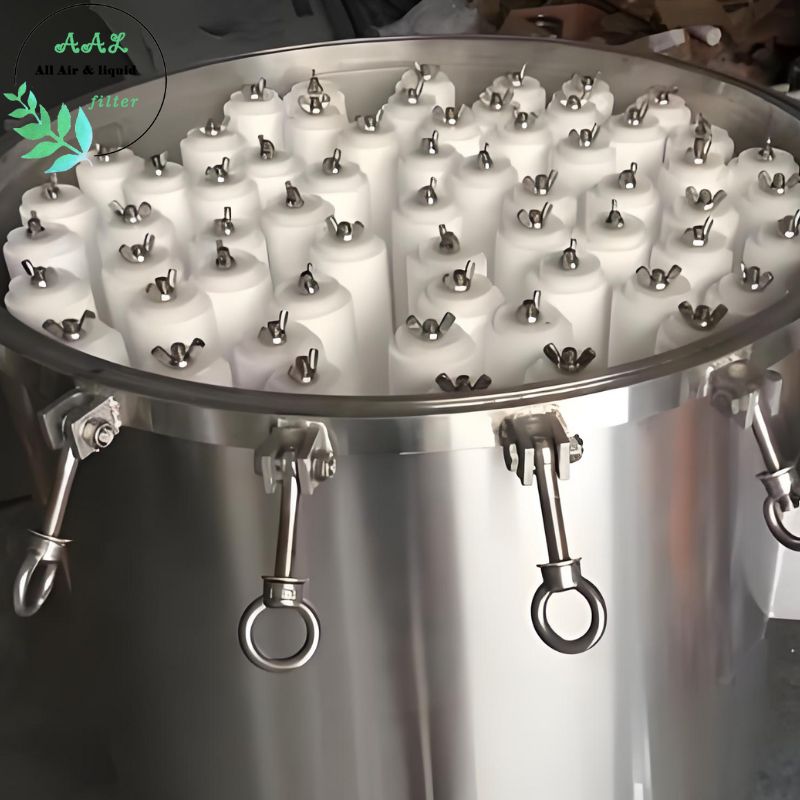

AAL Stainless Steel Water Filter Cartridge Housing
Product Overview
The AAL Stainless Steel Water Filter Cartridge Housing is constructed from sanitary-grade 304 or 316L stainless steel, designed for high-purity processes with no cleaning dead ends. It is ideal for industries such as healthcare, food and beverage, and life sciences. The housing features an inner surface polished to 0.3µm and an outer surface to 0.4µm, ensuring zero residual liquid retention. It supports online sterilization (121℃±2℃ for 30 minutes) and allows quick filter cartridge replacement. Compatible with various sealing materials (e.g., EPDM, silicone), it meets demands for corrosion resistance, high temperature, and high pressure.
Key Features:
✅ Sanitary Design: No dead-end structure for easy cleaning, compliant with GMP and FDA standards.Optional electrolytic polishing or matte finish; inner wall polished to 0.3µm, outer wall to 0.4µm.
✅ High-Efficiency Filtration: High filtration precision (minimum 0.1μm) with minimal adsorption and no media shedding. Quick-open top cover design (Tri-Clamp/flange/bolted) for high-flow, high-pressure applications.
✅ Durability and Compatibility: Resistant to acid/alkali corrosion; maximum operating pressure 1.0 MPa; temperature resistance up to 130℃.Compatible with multiple cartridge sizes (10"-40") and interface types (DOE, 222/226 O-rings).
✅ Easy Maintenance: Rapid cartridge replacement and thorough drainage to minimize downtime. Flexible installation (horizontal/vertical) and inlet configurations (top/side inlet).
Specifications:
Parameter | Details |
Material | Housing: SS304/316L; Vent/Drain Valve: SS304; Seals: EPDM/Silicone/Viton, etc. |
Cartridge Size | Length: 10", 20", 30", 40"; OD: 2.5" (pleated) |
Flow Rate (Single Cartridge) | 10": 0.5 m³/h; 20": 1 m³/h; 30": 1.5 m³/h; 40": 2 m³/h |
Connection Types | Inlet/Outlet: Flange/Thread/Quick Valve; Connection Method: Clamp |
Surface Finish | Mirror polishing (Ra ≤0.3µm inner, 0.4µm outer) or sandblasting |
Operational Parameters | Design Pressure: 1.0 MPa; Max. Pressure: 0.8 MPa; Temp. Resistance: 130℃; Sterilization Temp.: 121℃±2℃ |
Cartridge Configuration | Quantity: 1-15 cartridges; End Cap Types: DOE/222/226 O-rings (flat/fin) |
Tech Support
Our team is available for troubleshooting, technical assistance, and to help you select the right filtration solutions for your applications.
Applications
✅ Food & Beverage: Juice, wine, dairy product filtration.
✅ Pharmaceuticals: Injection fluids, biopharmaceutical purification.
✅ Electronics & Chemicals: Ultrapure water preparation, chemical fine filtration.
✅ Environmental Water Treatment: Pre-RO filtration/DI treatment, wastewater purification.
✅ Petrochemicals & Energy: Oil filtration, gas purification.
✅ Laboratories & Power: High-precision fluid processing, industrial cooling water systems.
❓Frequently Asked Questions (FAQ)
1. What types of filter cartridges are compatible with this housing?
🅰️The AAL stainless steel water filter housing is compatible with various standard cartridges, such as melt-blown, pleated, carbon block, and stainless steel filter cartridges. Sizes like 10” and 20” are available.
2. Is this housing suitable for drinking water systems?
🅰️Yes. Made of food-grade 304 or 316L stainless steel, this housing is safe and corrosion-resistant, ideal for residential, commercial, and industrial drinking water filtration systems.
3. Do you offer customization for this product?
🅰️Yes, we provide customized options including inlet/outlet type, size, pressure rating, and number of cartridges based on your application requirements.
4. How do I clean and maintain this filter housing?
🅰️The housing features a convenient drain valve for flushing. Regular inspection of the O-ring and internal structure is recommended to ensure optimal performance.
5. What is the maximum pressure and temperature it can handle?
🅰️Standard models can withstand up to 10 bar (145 psi) of pressure and operate at temperatures up to 120°C. Higher pressure or temperature versions can be customized.
Your Trusted Stainless Steel Water Filter Housing Manufacturer in China
AAL stainless steel water filter cartridge housings are expertly crafted from high-quality 304/316L stainless steel, offering excellent resistance to heat, pressure, and corrosion. Designed for reliable and efficient water filtration, they are compatible with a wide range of filter cartridges to remove impurities and suspended particles from water.
Compared with traditional plastic housings, AAL stainless steel housings provide enhanced durability and safety, minimizing the risk of cracking or bursting. The housing features a user-friendly drain design for easy cleaning and maintenance, ensuring longer service life and reduced operational costs.
