Strainer Baskets
- Reusable and easy to clean, reducing maintenance costs
- Available in multiple filtration ratings (20μm – 1000μm)
- Various structure options: flat bottom, cylindrical, conical, with handle, etc.
- Material options include SS304, SS316L, duplex stainless steel, etc.
- Easy installation and compatibility with most filter systems

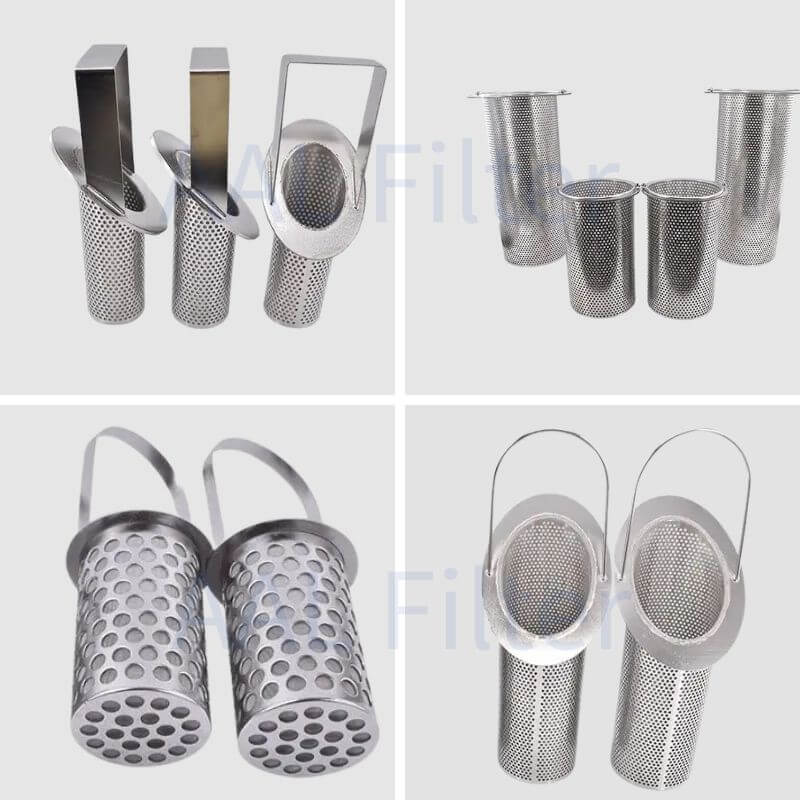

Strainer Baskets
Product Overview
Strainer baskets are replaceable core components installed inside basket strainers or custom filter housings. They are designed to capture solid contaminants and particles from fluids such as water, chemicals, and oil. Constructed from stainless steel perforated plate or mesh, strainer baskets provide excellent mechanical strength and corrosion resistance, making them widely applicable in various industries.
Key Features
1️⃣Reusable and easy to clean, reducing maintenance costs
2️⃣Available in multiple filtration ratings (20μm – 1000μm)
3️⃣Various structure options: flat bottom, cylindrical, conical, with handle, etc.
4️⃣Material options include SS304, SS316L, duplex stainless steel, etc.
5️⃣Easy installation and compatibility with most filter systems
Technical Specifications
Item | Specification |
Material | SS304 / SS316L / Duplex / Alloy steel |
Filtration Rating | 20μm – 1000μm (customizable) |
Diameter Range | 2" – 20" (or customized) |
Length Range | 100mm – 1000mm |
Structure Type | Flat bottom, cylindrical, conical, handle type |
Surface Finish | Pickling, polishing, sandblasting, etc. |
Hole Type | Perforated (round/slot), mesh, double layer |
Operating Temp. | -20°C ~ 120°C (higher available upon request) |
Max Pressure | ≤1.6 MPa (depends on housing) |
Applications
🔹Industrial cooling and recirculating water filtration
🔹Chemical fluid solid separation
🔹Oil & gas pipeline protection
🔹Beverage and food processing
🔹Pharmaceutical, ink, paint, and viscous liquid filtration
🔹Municipal and industrial wastewater pre-filtration
❓Frequently Asked Questions (FAQ)
1. Can the strainer basket be reused?
🅰️Yes. The basket is removable and can be reused after cleaning with water or appropriate solvent.
2. How to choose the right mesh size?
🅰️Mesh size should be selected based on the size of particles in the fluid and downstream protection needs. Common sizes: 100μm, 200μm, 500μm.
3. Is customization available?
🅰️Absolutely. We offer full customization for dimensions, materials, structure, handles, edge design, etc.
4. How often should I replace the basket?
🅰️The basket can be used long-term if cleaned regularly. Replace it when it becomes deformed, damaged, or uncleanable.
5. Can it be used with high-temperature or corrosive fluids?
🅰️Yes. We offer high-grade materials like 316L or duplex stainless steel for high-temperature or corrosive applications.
