AAL ASHH Series Stainless Steel Horizontal High Flow Cartridge Filter Housing
- Horizontal High Flow Design
- Flexible Flow Direction Configuration
- Reduced Cartridge Quantity
- Low Pressure Drop, High Energy Efficiency
- High Dirt-Holding Capacity
- Robust Stainless Steel Construction
- Easy Installation & Maintenance
- Optimized for Data Center Applications

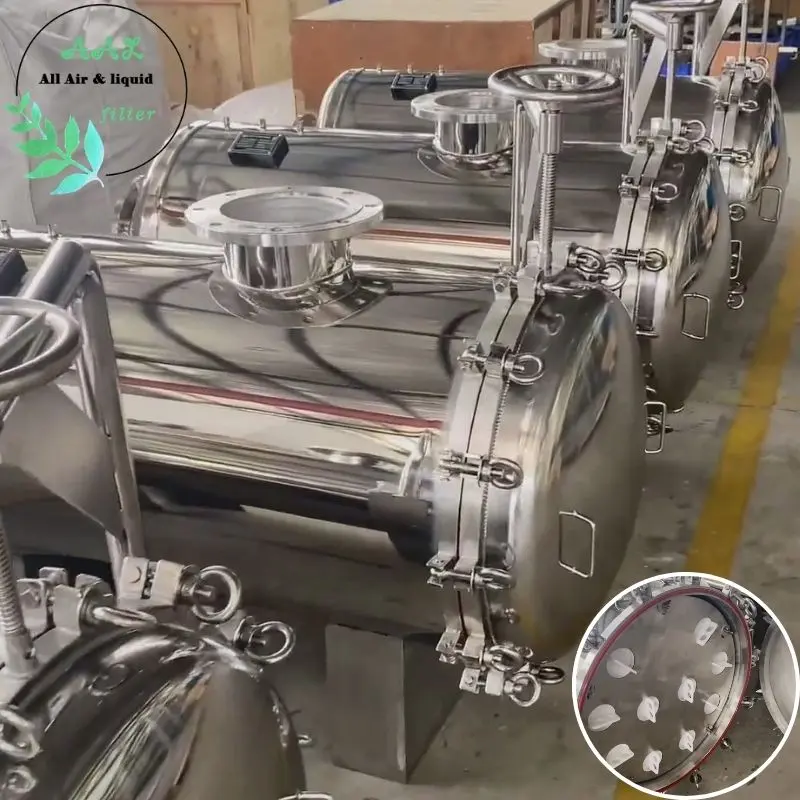

The ASHH Series AAL Horizontal High Flow Cartridge Filter Housing is engineered for high-flow, continuous-duty, and mission-critical filtration applications. Featuring a horizontal housing design, the system accommodates multiple high flow cartridges to significantly increase throughput while maintaining low pressure drop and high operational efficiency.
During filtration, the fluid flow direction can be configured either from outside to inside or from inside to outside of the filter cartridges, depending on system design requirements. Contaminants are efficiently retained within the filter media, while the clean filtrate is collected through the manifold, ensuring stable and reliable separation performance.
Constructed from 304 or 316L stainless steel, the ASHH Series offers excellent mechanical strength and corrosion resistance for demanding industrial environments. It is particularly well suited for data center cooling water systems, industrial circulating water, large-scale water treatment, and other high-flow process applications—helping reduce system footprint and total operating costs.
Key Features
1. Horizontal High Flow Design
Horizontal configuration combined with high flow cartridges delivers exceptional single-unit capacity for continuous-duty applications.
2. Flexible Flow Direction Configuration
Supports both outside-to-inside and inside-to-outside filtration to meet various process requirements.
3. Reduced Cartridge Quantity
Each high flow cartridge replaces multiple standard cartridges, minimizing housing size and system complexity.
4. Low Pressure Drop, High Energy Efficiency
Optimized internal flow paths reduce pressure loss and operating energy consumption.
5. High Dirt-Holding Capacity
Large effective filtration area enables longer service life and fewer cartridge change-outs.
6. Robust Stainless Steel Construction
Manufactured from 304 or 316L stainless steel for excellent resistance to corrosion, temperature, and pressure.
7. Easy Installation & Maintenance
User-friendly design allows quick access and cartridge replacement, minimizing downtime.
8. Optimized for Data Center Applications
Ideal for cooling water and chilled water systems in data centers, ensuring reliable long-term performance.
Model Specifications
Specifications

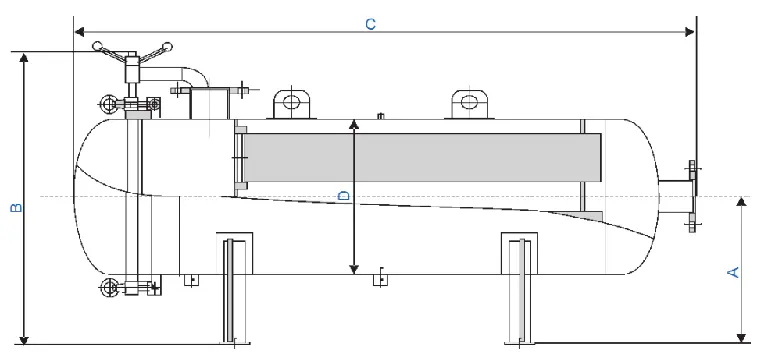

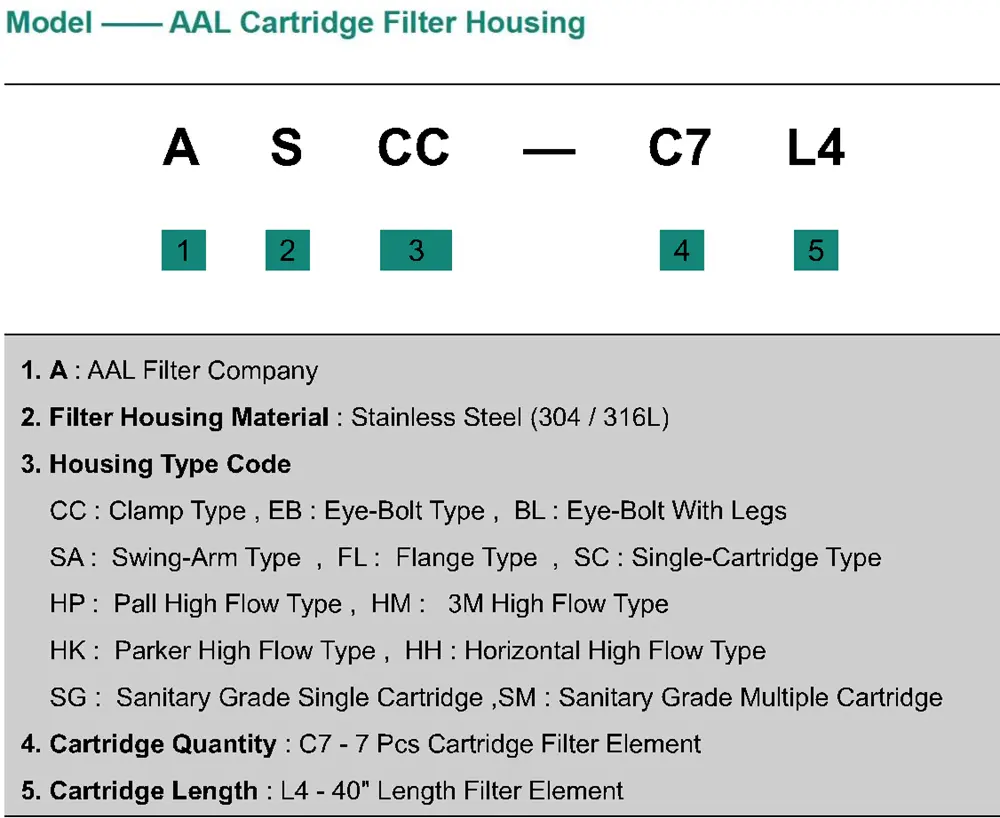

ASHH - AAL Horizontal High Flow Cartridge Filter Housing | |||||||
Model | Design Flow Rate | A(mm) | B(mm) | C(mm) | D(mm) | In/Out | Drain |
ASHH-C1L4 | 30 m³/h | 350 | 530 | 1270 | Ø200 | 2"-3" | ½" |
ASHH-C2L4 | 60 m³/h | 500 | 960 | 1670 | Ø450 | 3"-4" | 1" |
ASHH-C3L4 | 90 m³/h | 580 | 1070 | 1810 | Ø500 | 4"-6" | 1" |
ASHH-C5L4 | 150 m³/h | 610 | 1125 | 1835 | Ø550 | 5"-6" | 1" |
■ Material: SUS304, SUS316L ■ Max Working Pressure: 1.0 Mpa ■ Enclosure Type: Swing bolt ■ Port type: Flange ■ Cartridge Specs: 1, 2, 3, 5 Pcs / 40" , Custom configurations are available upon request. ■ Filtration Rating: 0.1 - 100 um ■ Sealing Material: NBR, EPDM, Silicone, FKM(Viton), PTFE (Teflon) optional ■ Surface Finish: Sandblasting or Polishing | |||||||
Applications
The ASHH Series Horizontal High Flow Cartridge Filter Housing is widely applied in:
● Data Centers
Filtration of cooling water, chilled water, and circulation systems to protect heat exchangers and ensure system reliability.
● Industrial Circulating Water Systems
Cooling water and process water filtration to safeguard pumps and downstream equipment.
● RO & Membrane Pretreatment
High-flow pretreatment filtration to reduce membrane fouling and extend membrane life.
● Power Generation
Cooling water, condensate, and process water filtration for stable operation.
● Petrochemical & Fine Chemical Industries
Filtration of process fluids, circulating water, and chemical solutions.
● Envirnmental & Water Treatment Projects
Industrial wastewater treatment, water reuse, and large-scale water treatment applications.
ASHH Series AAL Horizontal High Flow Cartridge Filter Housing Your Trusted Solution for High-Flow Industrial Filtration
Whether you are upgrading an existing system or designing a new filtration solution, AAL Filter provides professional technical support and customized solutions to ensure long-term system stability and optimized operating costs.
Contact us today for product datasheets, technical support, system selection, quotations, or replacement filter cartridges.
