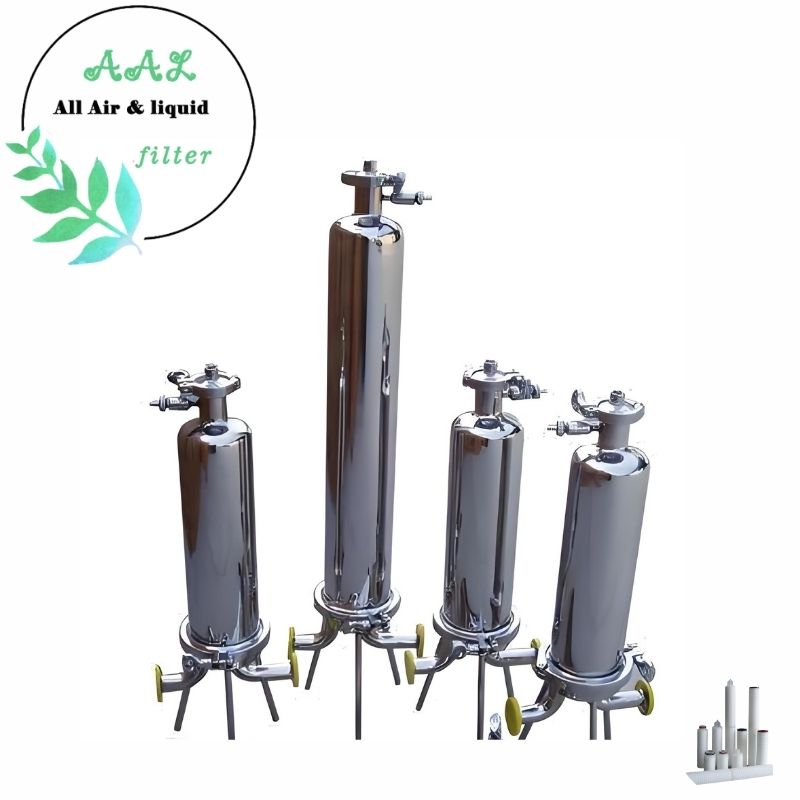

Liquid Filter Housing – Stainless Steel SS304/316L for Industrial Process Filtration
- SS304 / SS316L stainless steel construction
- Supports DOE / 222 / 226 cartridge types
- Compatible with 10", 20", 30", 40" filter lengths
- Mirror polish or sandblasted surface finish
- Ring or bolt closure design
- Temperature resistance up to 130°C
- Pressure rating up to 1.0 MPa (150 PSI)
- Available in clamp, flange, or threaded connections
- Compact, single-cartridge design
- Ideal for point-of-use or low-flow filtration
Liquid Filter Housing – Stainless Steel SS304/316L for Industrial Process Filtration
Product Overview
AALFilter’s Single Cartridge Liquid Filter Housing, crafted from high-grade SS304 or SS316L stainless steel, is designed to deliver reliable, high-efficiency filtration across a wide range of industrial and commercial liquid applications. Supporting 10", 20", 30", or 40" filter cartridges with DOE, 222, or 226 end caps, this compact housing is ideal for small-batch or point-of-use filtration.
Available in both bolt closure (FO/CSF series) and ring seal closure (RH series) designs, this housing offers superior pressure handling, chemical compatibility, and ease of maintenance. Whether filtering process water, chemicals, food-grade liquids, or solvents, AALFilter’s liquid filter housing ensures dependable performance with minimal downtime.
This model is commonly used in RO/DI prefiltration, chemical processing, food & beverage, and pharmaceutical environments—especially where high corrosion resistance, sanitary construction, and pressure durability are critical.
Key Features
✅ SS304 / SS316L stainless steel construction
✅ Supports DOE, 222, and 226 cartridge end caps
✅ Suitable for 10", 20", 30", and 40" cartridge lengths
✅ Up to 2 m³/h per cartridge (40")
✅ Mirror polished or sandblasted surface finish
✅ High temperature resistance up to 130°C
✅ Pressure rating up to 1.0 MPa (150 PSI)
✅ Ring seal or bolt closure options
✅ Full housing drainage with RH tapered bottom design
✅ Compact and easy-to-install with 1/2", 3/4", or 1" pipe options
Specifications
Parameter | Details |
Material | Housing: SS304 / SS316L; Vent/Drain Valve: SS304 |
Seal Materials | EPDM, Silicone, Viton (customizable) |
Cartridge Sizes | 10", 20", 30", 40"; OD 2.5" (pleated or depth filter) |
Flow Rate (Per Cartridge) | 10": 0.5 m³/h; 20": 1.0 m³/h; 30": 1.5 m³/h; 40": 2.0 m³/h |
Design Pressure | 1.0 MPa (10 bar); Max operating pressure: 0.8 MPa |
Temperature Resistance | Up to 130°C; Sterilization Temp: 121°C ± 2°C |
Connection Types | Inlet/Outlet: Flanged / Threaded / Clamp / Quick Valve |
Surface Finish | Mirror polish (Ra ≤ 0.3μm inner, 0.4μm outer) or sandblasted |
Closure Types | Ring seal closure (RH series) or bolt closure (FO/CSF series) |
Mounting Options | Mounting brackets available |
Cartridge Compatibility | DOE, 222, 226; Flat or Fin ends |
Applications
✅ Industrial Water Treatment
Process water purification
Pre-filtration for RO/DI systems
Cooling tower water filtration
✅ Food & Beverage
Juice, wine, dairy, and beverage processing
Clean-in-place (CIP) systems
✅ Pharmaceutical & Biotech
Injection solution filtration
Biopharmaceutical purification lines
✅ Petrochemical & Energy
Solvent recovery systems
Hydraulic oil & petrochemical fluid filtration
✅ Electronics & Chemicals
Ultrapure water generation
Fine chemical filtration
✅ Laboratories & Power
High-precision fluid processing
Laboratory-grade water filtration
Your Trusted Stainless Steel Water Filter Housing Manufacturer in China
AAL stainless steel liquid filter housings are expertly crafted from high-quality 304/316L stainless steel, offering excellent resistance to heat, pressure, and corrosion. Designed for reliable and efficient water filtration, they are compatible with a wide range of filter cartridges to remove impurities and suspended particles from water.
Compared with traditional plastic housings, AAL stainless steel liquid filter housings provide enhanced durability and safety, minimizing the risk of cracking or bursting. The housing features a user-friendly drain design for easy cleaning and maintenance, ensuring longer service life and reduced operational costs.
For high-flow applications, you may also consider our multi-cartridge stainless steel filter housings.
