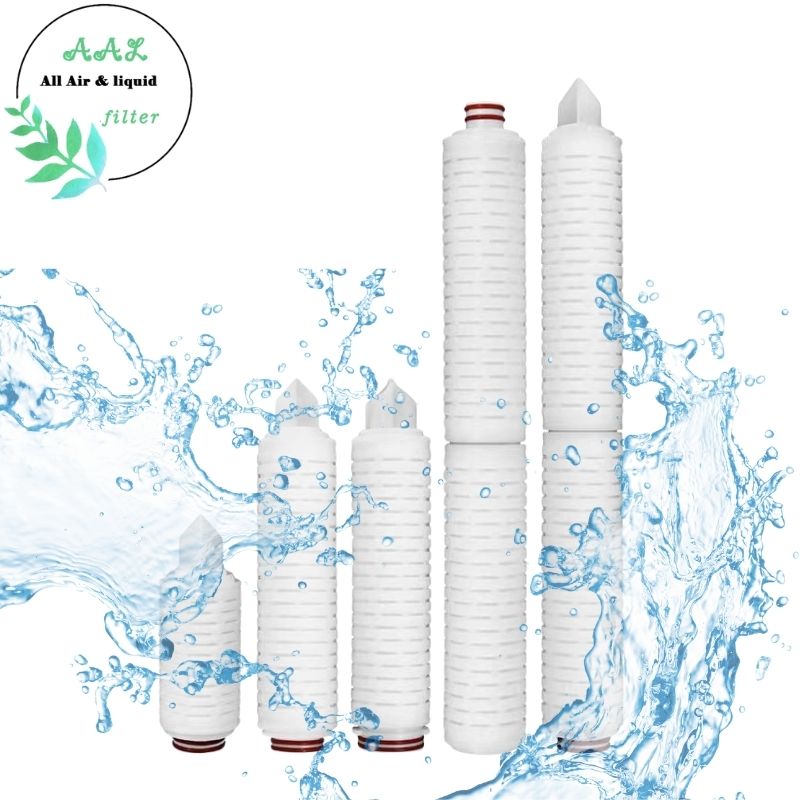

10 µm PP Pleated Membrane Filter – Surface Filtration for Industrial liquid
- 10 µm surface filtration for general-purpose liquids
- High dirt-holding capacity and long service life
- Compatible with acids, alkalis, and solvents
- Available in various lengths and end cap types
10 µm PP Pleated Membrane Filter – Surface Filtration for Industrial Liquid
High-efficiency pleated filter cartridge made of 100% polypropylene for general industrial applications. Optimized for surface filtration of particles ≥10 microns in a wide range of fluids.
Industrial Surface Filtration with 10 µm PP Membrane Filter Cartridges
The 10-micron PP pleated membrane filter cartridge from AAL Filter is engineered for surface filtration in general-purpose liquid applications. With its robust polypropylene construction and optimized pleated surface, this filter is ideal for capturing larger particles, reducing system fouling, and protecting downstream processes.
Whether you're handling industrial water, plating chemicals, cooling fluids, or lubricants, this filter provides dependable performance, long service life, and cost-effective operation.
Quick Overview of 10 µm PP Membrane Filters
Filtration Rating: Absolute 10 micron
Filter Media: 100% Polypropylene (PP)
Construction: Pleated design for extended surface area
Outer Diameter: 2.7 inches (69 mm)
Lengths Available: 5", 10", 20", 30", 40"
End Cap Types: DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin
Operating Temperature: Up to 80°C (176°F)
Compatibility: Resistant to acids, alkalis, and various solvents
Recommended Applications: Industrial water, chemical processing, RO pre-filtration, wastewater, plating fluids, etc.
Technical Specifications at a Glance
Parameter | Value |
Filtration Rating | 10 µm (Surface Filtration) |
Filter Media | Polypropylene (PP) |
Support & Core Material | Polypropylene or optional Stainless Steel Core |
Outer Diameter | 2.7" (69 mm) |
Lengths Available | 5", 9.75", 9.8", 10", 20", 30", 40" |
End Cap Configurations | DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin |
Gasket / O-Ring Material | Silicone, EPDM, NBR, Viton, Teflon-encapsulated Viton |
Max Operating Temp | 80°C (176°F) |
Max Operating Pressure | 4.8 bar @ 20°C |
Recommended Change-out Pressure | 2.4 bar (35 psi) |
Sterilization | Autoclavable at 121°C (250°F) for 30 minutes |
Why Choose 10 µm PP Membrane Filter for Surface Filtration?
✅ Efficient Particle Removal: Designed for capturing coarse contaminants ≥10μm in industrial liquids. Perfect for pre-filtration steps.
✅ Longer Service Life: The pleated structure increases the filtration area, enabling higher dirt-holding capacity and reducing replacement frequency.
✅ Cost-Effective Operation: While initial investment is low, the high capacity and long lifespan help reduce long-term maintenance costs.
✅ Excellent Chemical Compatibility: Compatible with a wide range of industrial fluids, including acids, alkalis, plating chemicals, and cooling liquids.
✅ FDA-Compliant Materials: Made from FDA-grade polypropylene, suitable for indirect contact with food and beverage applications.
✅ Wide Configuration Options: Available in various lengths and end cap designs to fit most standard filter housings.
Your Trusted PP Filter Cartridge Manufacturer
As a professional filter cartridge manufacturer, AAL Filter specializes in precision-engineered filtration solutions for industrial liquid processing. Our PP pleated filter cartridges are manufactured in ISO-certified facilities, ensuring consistent quality, high retention rates, and reliable performance in diverse industries.
Order 10 µm PP Pleated Filter Today – Fast Delivery Available!
Ready to improve your filtration efficiency? Our filters are available for fast shipping worldwide. Contact our team for OEM options, technical support, or volume pricing.
Available in stock – Contact us now!
OEM & Custom Filter Cartridge Options Available
We offer complete customization services to meet your filtration system requirements:
Custom length and micron rating
Private labeling & packaging
Special O-ring or end cap configurations
Bulk orders & international logistics support
Let us tailor your filter solution.
Certified by ISO & Compliant with FDA Requirements
Our filters are produced in ISO 9001-certified facilities. Materials are compliant with FDA regulations, making them suitable for use in applications involving contact with food and pharmaceutical-grade fluids.
Compare with Other PP Membrane Filter Options
Type | 10 µm Pleated Filter | 0.22 µm Absolute Filter | 5 µm Filter |
Application | Surface Filtration | Sterile Filtration | Pre-filtration |
Filtration Type | Nominal | Absolute (Beta 5000) | Nominal |
Particle Retention | ≥10 µm | ≥0.22 µm | ≥5 µm |
Typical Use | Industrial Water, RO Prefiltration | Biopharma, Wine, Beer | Cooling Fluids, Chemical Pre-Filters |
Explore other ratings like 1 µm, 20 µm, and more on our Pleated Filter Cartridge Series page.
What Our Customers Say
“We’ve used AAL 10-micron filters for our plating line pre-filtration. Excellent flow rate and long lifespan compared to other brands.”
— Maintenance Manager, Automotive Components Factory
“We rely on AAL filters for our cooling system and wastewater treatment – they’re dependable and cost-effective.”
— Facility Engineer, Electronics Manufacturer
Looking for More Filtration Solutions?
We offer a full line of industrial liquid filtration products, including:
Absolute Rated PTFE Pleated Filters
Sterile PES Membrane Filters
Contact us to discuss your specific application or download our full catalog.
