PP Pleated Filter Cartridge – Polypropylene Micron Filter for Water, Chemicals & Industrial Liquids
- High Performance: Multi-layer, graded pore structure ensures high filtration efficiency and dirt-holding capacity
- Cost Savings: Long service life and low pressure drop reduce operational and maintenance costs
- Wide Compatibility: Suitable for a broad range of fluids and applications, including FDA-compliant processes
- Reliable Construction: Thermally welded design ensures 100% integrity with no side leakage

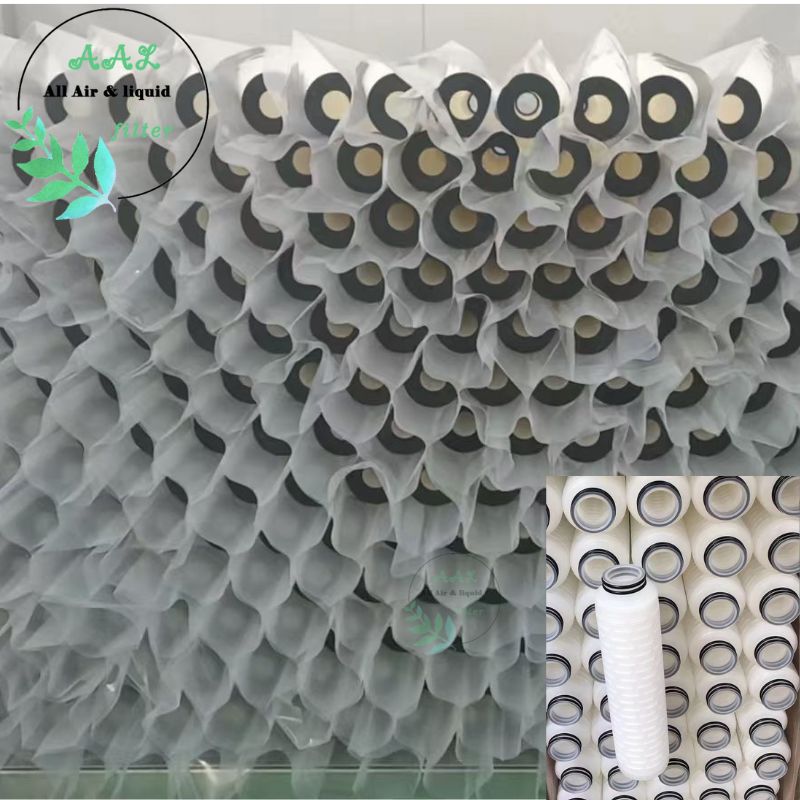

PP Pleated Filter Cartridge
Product Overview
The AALfilter's Nominal PP pleated filter cartridge is constructed from high-purity polypropylene media, designed for precise and efficient filtration of water, chemicals, and other industrial liquids.
With micron ratings from 0.5μm to 50μm, it offers high dirt-holding capacity, low pressure drop, and long service life.
Suitable for use in pre-RO filtration, electronics manufacturing, plating solutions, food & beverage processing, and general industrial applications. Available in multiple lengths（10", 20", 30", 40"） and end cap（DOE, 222/flat, 226/fin configurations to fit most standard cartridge filter housings.
Key Features:
✅ High Filtration Efficiency: Multi-layer, graded pore structure ensures submicron retention and consistent performance.
✅ High Dirt-Holding Capacity: The unique design provides exceptional dirt-holding capacity and long service life.
✅ Wide Chemical Compatibility: 100% polypropylene construction ensures compatibility with acids, alkalis, solvents, and other aggressive fluids.
✅ Thermally Welded Construction: No adhesives or surfactants are used, ensuring minimal extractables and 100% integrity.
✅ FDA Compliance: Materials meet FDA requirements, making them suitable for food, beverage, and pharmaceutical applications.
✅ Low Pressure Drop: Optimized design ensures high flow rates with minimal pressure drop.
✅ Versatile End Cap Options: Available in DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin, 215/Flat, and 215/Fin configurations.
Specifications:
Specification | Details |
Product Name | Nominal PP Pleated Cartridge Filters |
Filter Media | Polypropylene (PP) |
Length Options | 5", 9.75", 9.8", 10", 20", 30", 40" |
Outside Diameter (OD) | 2.7 inches (69mm) |
Filtration Rating | 0.1μm, 0.22μm, 0.45μm, 0.65μm, 0.8μm, 1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 30μm, 40μm, 50μm, 60μm |
Core Material | Polypropylene (PP) |
Support/Drainage | Polypropylene (PP) |
Gasket/O-ring Material | Silicone, EPDM, Viton, NBR, Teflon encapsulated Viton |
End Cap Material | Polypropylene (PP) |
End Cap Type | DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin, 215/Flat, 215/Fin |
Max. Operating Temperature | 80°C (176°F) |
Max. Operating Pressure | 4.8 bar @ 20°C, 3.4 bar @ 50°C, 1.4 bar @ 80°C |
Recommended Change-out Pressure | 2.4 bar (35 psid) |
Sterilization | 121°C (250°F) for 30 minutes at 1.0 bar (14 psi) |
Tech Support
Our team is available for troubleshooting, technical assistance, and to help you select the right filtration solutions for your applications.
Applications
✅ Food & Beverage: Filtration of beverages, edible oils, and dairy products.
✅ Pharmaceutical: Filtration of APIs, solvents, and purified water.
✅ RO Pre-filtration: Pre-filtration for reverse osmosis systems.
✅ Chemical Processing: Filtration of acids, alkalis, and solvents.
✅ Semiconductor: Filtration of ultrapure water and chemicals.
✅ Paints & Coatings: Filtration of industrial coatings, lacquers, and inks.
✅ Oil & Gas: Filtration of process fluids and injection waters.
✅ Cosmetics: Filtration of cosmetic formulations and ingredients.
