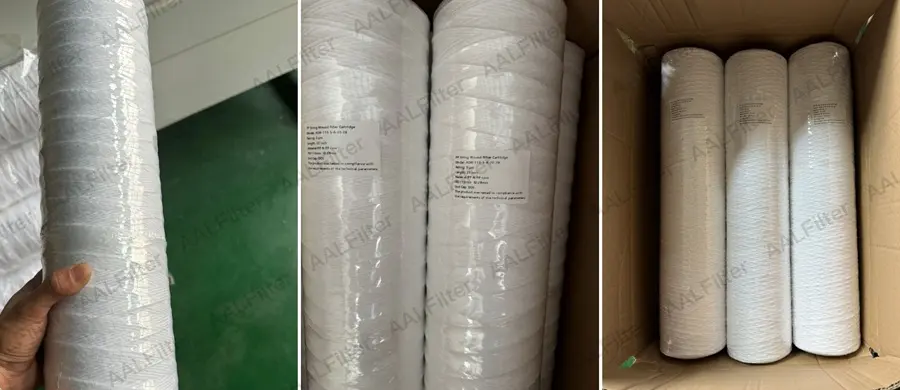

4.5 Inch Big Blue String Wound Filter Cartridge | High Flow Sediment Depth Filtration

The 4.5 Inch Big Blue String Wound Filter Cartridge is a high-capacity sediment filtration solution designed for demanding liquid filtration applications where standard-size cartridges require frequent replacement. With its larger outer diameter compared with conventional filter cartridges, this Big Blue string wound cartridge provides a significantly increased filtration area and higher dirt-holding capacity, delivering longer service life and improved filtration performance.

Manufactured with a precision string wound structure, this cartridge creates a true depth filtration matrix that effectively captures suspended solids, sand, rust, dirt, and other particulate contaminants throughout the entire filter media depth. The progressive density structure allows larger particles to be trapped in the outer layers while finer particles are captured deeper inside the cartridge, maximizing contaminant retention capacity.

The oversized 4.5-inch diameter design enables higher flow rates with lower pressure drop, making it an ideal choice for applications where conventional 2.5-inch diameter cartridges need to be replaced too frequently due to high sediment loading.

AAL Filter’s 4.5 Inch Big Blue String Wound Filter Cartridge is widely used in industrial water treatment, commercial filtration systems, RO pretreatment, and other high-demand sediment filtration applications.

Features

1. Larger Diameter for Higher Filtration Capacity

Compared with standard-size string wound cartridges, the 4.5-inch Big Blue design provides a larger filtration surface area and greater media volume, allowing the cartridge to hold more contaminants before reaching the replacement point.

This high-capacity design helps reduce cartridge replacement frequency and lowers overall maintenance costs.

2. Advanced Depth Filtration Performance

The continuous yarn winding structure forms multiple filtration layers, creating a three-dimensional depth filtration network.

During operation:

· Outer layers capture larger particles and sediment;

· Inner layers retain finer contaminants;

· The entire filter depth contributes to contaminant removal.

This structure provides excellent dirt-holding capacity compared with traditional surface filtration methods.

3. High Flow Rate with Longer Service Life

The increased diameter allows more liquid to pass through the cartridge while maintaining stable filtration performance. The larger filtration area reduces flow resistance and helps achieve higher throughput with a lower initial pressure drop.

It is especially suitable for filtration systems that require:

· Higher flow capacity;

· Longer operating cycles;

· Reduced downtime for filter replacement.

4. Effective Sediment and Particle Removal

The Big Blue string wound cartridge is designed to remove various particulate contaminants from liquids, including:

· Sand;

· Silt;

· Rust particles;

· Dirt;

· Suspended solids;

· Other mechanical impurities.

It provides reliable pre-filtration protection for downstream equipment and processes.

5. Multiple Filtration Ratings Available

Different micron ratings are available to meet various filtration requirements, from coarse sediment removal to fine particle filtration.

Common filtration ratings include:

· 1 micron

· 5 micron

· 10 micron

· 20 micron

· 50 micron

· 100 micron

6. Compatible with Big Blue Filter Housing Systems

The standard 4.5-inch diameter design makes this string wound filter cartridge compatible with many Big Blue filter housings used in commercial and industrial filtration systems.

It provides an easy upgrade option for users who need higher filtration capacity without changing the complete filtration system.

Product Selection Table

Applications

Industrial Water Filtration

The 4.5 Inch Big Blue String Wound Filter Cartridge is widely used as a pre-filter for industrial water treatment systems to remove suspended solids, sediment, and particulate contaminants from process water.

Typical applications include:

· Industrial water purification;

· Cooling water filtration;

· Process water filtration;

· Equipment protection filtration.

RO System Pretreatment

Used before reverse osmosis (RO) systems, this high-capacity sediment filter helps reduce particle loading on RO membranes, improving system stability and extending membrane service life.

Commercial Water Filtration Systems

The large filtration capacity makes it suitable for:

· Commercial water purification equipment;

· Building water filtration systems;

· Central water treatment systems;

· Large-scale drinking water applications.

Food & Beverage Industry

The cartridge can be used for sediment removal in food and beverage processing applications, helping maintain water quality and protect downstream filtration equipment.

Chemical and Industrial Liquid Filtration

Suitable for general industrial liquid filtration applications where effective removal of solid particles and contaminants is required.

Agricultural Irrigation Filtration

Used in irrigation systems to remove sand, sediment, and suspended particles, helping protect pumps, valves, drip irrigation systems, and spray equipment.

Why Choose AAL Filter 4.5 Inch Big Blue String Wound Cartridge?

When standard filter cartridges reach their replacement cycle too quickly, the 4.5 Inch Big Blue String Wound Filter Cartridge provides a high-capacity alternative with greater filtration volume, higher dirt-holding capacity, and extended service life.

With its robust depth filtration structure and large diameter design, this cartridge helps reduce maintenance frequency, improve filtration efficiency, and provide reliable sediment removal for industrial and commercial applications.

AAL Filter specializes in manufacturing high-quality filter cartridges and filtration solutions for global customers. With advanced production capabilities and extensive filtration expertise, we help customers select the right filtration products for their specific applications.

Contact AAL Filter today for professional filter cartridge solutions and reliable filtration support.
