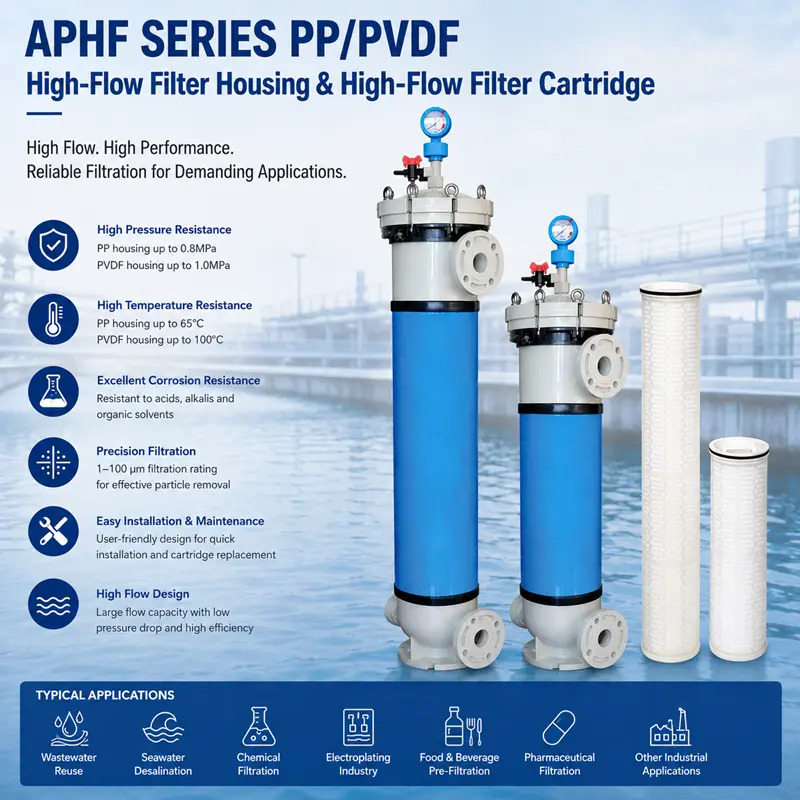

APHF Series PP/PVDF High-Flow Filter Housing for Industrial Water Treatment & Chemical Filtration

Industrial filtration systems require filter housings that can withstand high flow rates, aggressive chemicals, elevated temperatures, and continuous operation. The APHF Series PP/PVDF High-Flow Filter Housing is specifically engineered to meet these challenges, providing exceptional durability, corrosion resistance, and filtration performance for a wide range of industrial liquid filtration processes.

Manufactured from premium Polypropylene (PP) and Polyvinylidene Fluoride (PVDF) materials, the APHF Series combines high flow capacity with long service life, making it an ideal solution for wastewater reuse, seawater desalination, brackish water treatment, chemical processing, electroplating, and other demanding industrial filtration applications.

Designed for easy installation and maintenance, the APHF Series helps reduce downtime, improve operational efficiency, and lower overall filtration costs.

Key Features of APHF Series PP/PVDF High-Flow Filter Housing

1. High Pressure Resistance for Stable Operation

The APHF Series is built to handle demanding industrial operating conditions:

· PP housing pressure resistance up to 0.8 MPa

· PVDF housing pressure resistance up to 1.0 MPa

This robust construction ensures safe and reliable performance in high-pressure filtration systems.

2. Excellent High-Temperature Performance

Different industrial processes require different temperature capabilities:

· PP housing operating temperature up to 65°C

· PVDF housing operating temperature up to 100°C

This flexibility allows the APHF Series to perform efficiently across a wide range of process environments.

3. Outstanding Corrosion Resistance

Both PP and PVDF materials provide excellent resistance to:

· Acids

· Alkalis

· Saltwater

· Organic solvents

· Corrosive industrial chemicals

This makes the APHF Series particularly suitable for chemical processing plants, electroplating facilities, and seawater treatment systems.

4. Precision Filtration Performance

Supporting filtration ratings from 1 to 100 microns, the APHF Series effectively removes:

· Suspended solids

· Fine particles

· Process contaminants

· Sediment and debris

This helps protect downstream equipment, membranes, pumps, valves, and production systems.

5. Easy Installation and Maintenance

The optimized housing design enables:

· Fast installation

· Convenient cartridge replacement

· Reduced maintenance time

· Lower operating costs

Maintenance personnel can quickly service the system with minimal disruption to production.

6. High-Flow Design for Maximum Efficiency

Engineered specifically for high-flow industrial applications, the APHF Series:

· Handles large liquid volumes efficiently

· Reduces pressure drop

· Improves system throughput

· Enhances overall filtration performance

This makes it an excellent choice for large-scale industrial filtration systems.

Selection Table

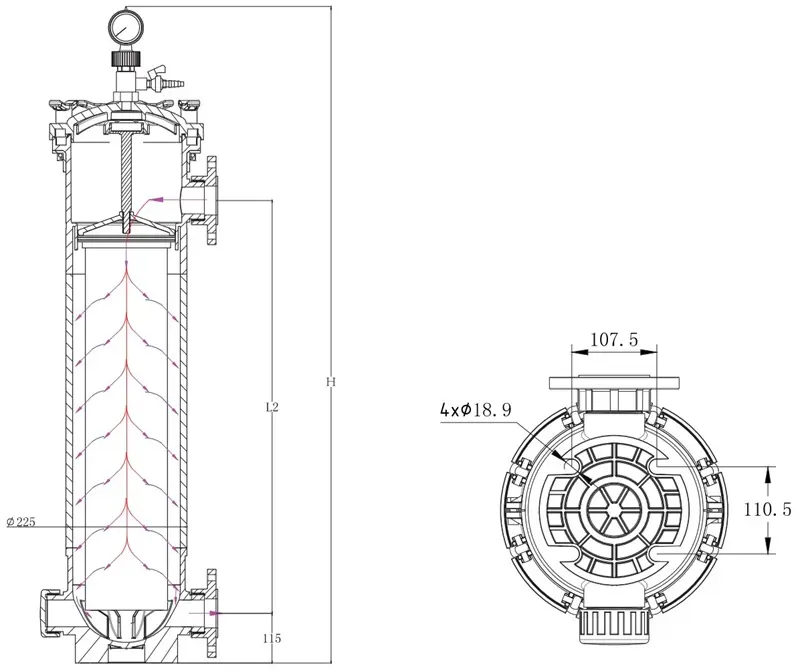

Product Structure Diagram

Typical Applications of APHF Series High-Flow Filter Housing

Wastewater Reuse and Recycling Systems

Industrial wastewater recycling systems require reliable pre-filtration to remove suspended solids and protect downstream treatment equipment. The APHF Series provides efficient filtration for water reuse operations.

Seawater Desalination and Brackish Water Treatment

The corrosion-resistant PP and PVDF construction makes the APHF Series ideal for handling seawater and high-salinity water streams in desalination facilities.

Chemical Processing and Acid/Alkali Filtration

Chemical manufacturing processes often involve highly corrosive liquids. The APHF Series delivers dependable filtration performance while maintaining long-term material integrity.

Electroplating Solution Filtration

Electroplating operations require consistent filtration to maintain solution quality and product finish. The APHF Series helps remove contaminants and extend bath life.

Food and Beverage Pre-Filtration

Used as a pre-filtration stage, the APHF Series helps protect critical downstream filtration equipment and improve process reliability.

Pharmaceutical Process Filtration

The housing can be integrated into pharmaceutical water treatment and process filtration systems where stable, efficient filtration is essential.

Other High-Flow Industrial Liquid Filtration Processes

The APHF Series is suitable for a broad range of industrial applications requiring:

· High flow rates

· Chemical resistance

· Low pressure drop

· Reliable filtration performance

Benefits of Choosing PP or PVDF Filter Housings

Choosing the right material depends on your process temperature, chemical compatibility requirements, and operating conditions.

Frequently Asked Questions (FAQ)

Q1: What filtration ratings are available for the APHF Series?

The APHF Series supports filtration ratings ranging from 1 micron to 100 microns, allowing users to select the appropriate filtration level based on process requirements.

Q2: How do I choose between PP and PVDF filter housings?

PP is ideal for general industrial water treatment applications and offers excellent cost performance. PVDF is recommended for highly corrosive chemicals, elevated temperatures, and demanding industrial environments.

Q3: Can the APHF Series handle high-flow industrial systems?

Yes. The APHF Series is specifically designed for high-flow applications, helping increase throughput while minimizing pressure loss across the filtration system.

Q4: Is the filter housing resistant to acids and alkalis?

Yes. Both PP and PVDF materials offer excellent resistance to acids, alkalis, and many industrial chemicals, making them suitable for chemical processing applications.

Q5: Is maintenance difficult?

No. The housing features a user-friendly design that allows for quick installation, easy cartridge replacement, and reduced maintenance downtime.

Why APHF Series Is the Ideal Choice for Industrial High-Flow Filtration

The APHF Series PP/PVDF High-Flow Filter Housing combines high flow capacity, exceptional chemical resistance, reliable pressure performance, and simplified maintenance in a single filtration solution.

Whether you operate a seawater desalination facility, chemical processing plant, electroplating line, wastewater recycling system, or industrial water treatment plant, the APHF Series provides the durability and efficiency needed to optimize filtration performance and reduce operating costs.

Partner with AAL Filter for Reliable High-Flow Industrial Filtration Solutions

Looking for a dependable filtration solution for demanding industrial applications?

AAL Filter provides professional support for selecting the right PP and PVDF high-flow filter housing systems for your specific process requirements.

Contact AAL Filter today to request:

· Product datasheets and technical specifications

· Filter housing selection guidance

· System design consultation

· Pricing and quotation support

· OEM and customized filtration solutions

· Industrial water treatment and chemical filtration expertise

Our experienced engineering team is ready to help you identify the most effective and cost-efficient filtration solution for your operation, ensuring long-term system reliability, improved process efficiency, and reduced maintenance costs.

Contact AAL Filter today and discover how the APHF Series High-Flow Filter Housing can enhance your industrial filtration performance.
