AAL PFA Single Cartridge Filter Housing for Semiconductor Ultra-Pure Chemical Filtration Systems

The AAL APFA Series Single Cartridge Filter Housing is specifically designed for semiconductor manufacturing, ultra-high purity chemical delivery systems, and other critical applications requiring exceptional cleanliness, chemical resistance, and process reliability.

Manufactured from high-purity PFA (Perfluoroalkoxy) fluoropolymer, the APFA housing features a fully integrated one-piece construction that combines the housing body, cover, and connection fittings into a single molded unit. This innovative design minimizes potential leakage points, reduces installation space requirements, and provides superior sealing performance in demanding operating environments.

With its metal-free wetted construction, ultra-low metal ion extractables, and outstanding resistance to aggressive chemicals, the APFA Series is ideal for handling semiconductor-grade acids, alkalis, solvents, and specialty process chemicals used in wafer fabrication and microelectronics manufacturing.

To meet varying process requirements and budget considerations, the filter housing is also available in PVDF and PPH material options for industrial chemical filtration and general corrosive liquid applications.

Key Features

1. High-Purity PFA Construction

Manufactured from premium-grade PFA fluoropolymer, the housing delivers exceptional purity and contamination control for semiconductor and electronic chemical applications.

2. Integrated One-Piece Design

The housing body, cover, and fittings are molded as a single unit, significantly reducing potential leak paths while simplifying installation and maintenance.

3. Metal-Free Wetted Surfaces

All fluid-contact components are completely metal-free, helping prevent metal ion contamination and ensuring maximum process purity.

4. Outstanding Chemical Resistance

PFA material provides excellent resistance to:

· Sulfuric Acid (H₂SO₄)

· Hydrochloric Acid (HCl)

· Nitric Acid (HNO₃)

· Hydrofluoric Acid (HF)

· Ammonium Hydroxide

· Electronic-Grade Solvents

· Semiconductor Process Chemicals

This ensures long-term reliability in highly corrosive environments.

5. Excellent Thermal Stability

The PFA housing supports continuous operating temperatures up to 260°C (500°F), making it suitable for both high-temperature and high-purity chemical processes.

6. Ultra-Low Metal Ion Extractables

The high-purity fluoropolymer construction minimizes ionic contamination, helping protect sensitive semiconductor manufacturing processes and improve product yield.

7. Reliable Flare Connection Design

Precision flare fittings provide secure connections and dependable sealing performance under demanding process conditions.

8. Multiple Material Options Available

While PFA is the preferred material for semiconductor and ultra-pure chemical applications, the housing can also be supplied in:

PVDF (Polyvinylidene Fluoride)

· Excellent chemical compatibility

· High mechanical strength

· Suitable for industrial chemical processing

· Cost-effective alternative for many corrosive chemical applications

PPH (Polypropylene Homopolymer)

· Good resistance to acids and alkalis

· Lightweight construction

· Economical solution for general chemical filtration systems

Selection Table

Product Installation Dimensions

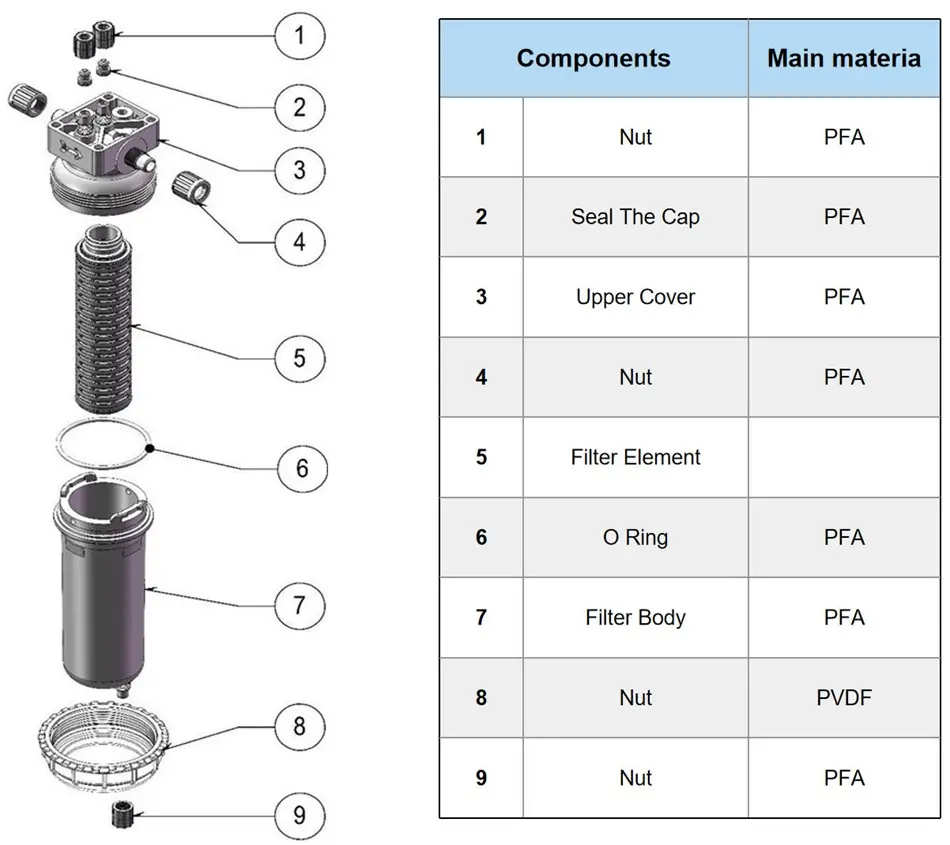

Product Diagram

Typical Applications

Semiconductor Manufacturing

· Wafer Cleaning Chemical Filtration

· Wet Bench Chemical Filtration

· Etching Chemical Filtration

· CMP Slurry Filtration

· Photoresist Filtration

· Semiconductor Chemical Delivery Systems

· Microelectronics Manufacturing Processes

Ultra-Pure Chemical Distribution

· UP Chemical Filtration

· High-Purity Acid Filtration

· High-Purity Alkali Filtration

· Specialty Chemical Supply Systems

· Chemical Day Tank Filtration

Electronic Chemical Processing

· Electronic-Grade Chemical Filtration

· Precision Chemical Dispensing Systems

· Chemical Transfer and Distribution Systems

Industrial Chemical Processing (PVDF / PPH Versions)

· Acid Transfer Systems

· Alkali Filtration Systems

· Chemical Storage and Distribution

· Corrosive Liquid Filtration

· Specialty Chemical Production

Why Choose a PFA Filter Housing for Semiconductor Applications?

Semiconductor manufacturing processes require extremely high levels of cleanliness and contamination control. Even trace amounts of metal ions can affect product quality, reduce yield, and damage sensitive process equipment.

Compared with traditional stainless steel filter housings, PFA filter housings provide:

· Zero corrosion risk

· Metal-free fluid contact surfaces

· Ultra-low particle generation

· Low metal ion extractables

· Excellent chemical compatibility

· Superior purity performance

· Longer service life in aggressive chemical environments

These advantages make PFA one of the preferred materials for semiconductor wet process equipment and ultra-pure chemical delivery systems worldwide.

Frequently Asked Questions (FAQ)

Q1: Why is PFA the preferred material for semiconductor chemical filtration?

PFA offers exceptional chemical resistance, ultra-low metal ion extractables, and excellent thermal stability. These characteristics make it ideal for semiconductor wet process chemicals, wafer cleaning systems, and ultra-pure chemical delivery applications where contamination control is critical.

Q2: What is the difference between PFA, PVDF, and PPH filter housings?

PFA provides the highest purity level, best chemical resistance, and highest temperature capability, making it suitable for semiconductor and electronic chemical applications.

PVDF offers excellent chemical resistance and mechanical strength for industrial chemical processing.

PPH is a cost-effective material commonly used in general chemical filtration and corrosive liquid handling systems.

Q3: Can the housing handle strong acids and aggressive chemicals?

Yes. The PFA housing is highly resistant to a broad range of corrosive chemicals, including sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, alkalis, and many specialty semiconductor chemicals.

Q4: Is the housing completely metal-free?

Yes. All wetted components are manufactured from high-purity fluoropolymer materials, eliminating the risk of metal ion contamination within the filtration system.

Partner with AAL Filter for High-Purity Chemical Filtration Solutions

AAL Filter specializes in high-performance filtration solutions for semiconductor manufacturing, electronic chemicals, ultra-pure water systems, and corrosive chemical processing industries.

Our APFA Series PFA Single Cartridge Filter Housing is engineered to deliver exceptional purity, chemical compatibility, and long-term reliability for critical process applications.

Whether you need product datasheets, material compatibility guidance, filtration system selection, or customized housing configurations, our experienced engineering team is ready to assist.

Contact us AAL Filter today to discuss your application requirements, request technical support, obtain pricing information, or explore customized high-purity filtration solutions.
