Cleanroom FFU Fan Filter Unit with Pre-Filter for Air Filtration System
- Integrated Pre-Filter – Captures larger particles before they reach the HEPA filter, extending filter lifespan
- High-Efficiency Filtration – HEPA filter with 99.99% efficiency at 0.3μm
- Adjustable Airflow – Velocity control between 0.35 – 0.55 m/s for flexibility in various environments
- Quiet Operation – Noise level below 60 dB, ensuring a comfortable working environment
- Energy Efficient – AC/DC motor options with low power consumption

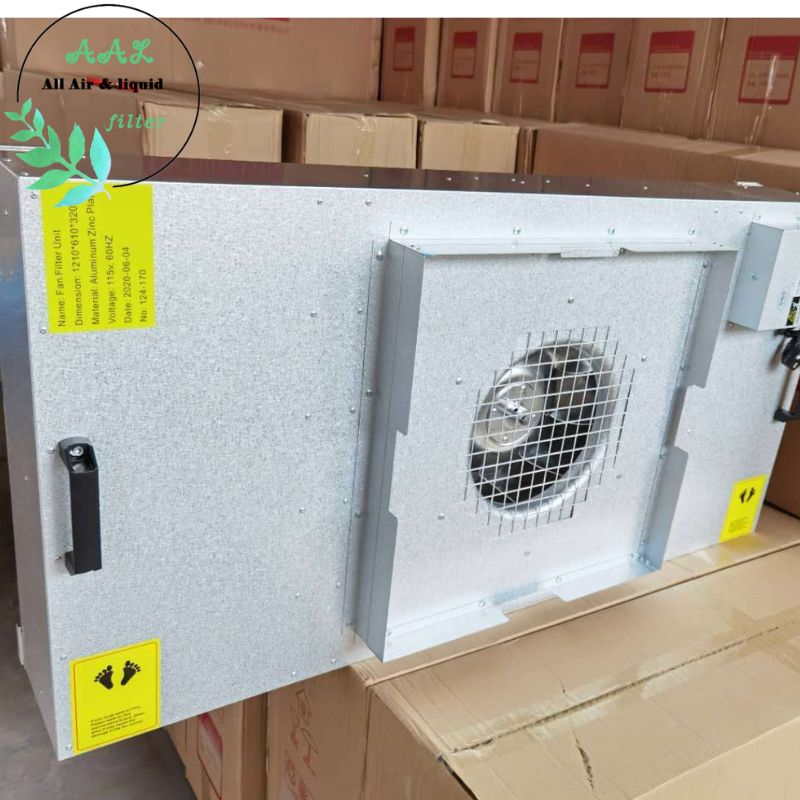

Cleanroom FFU Fan Filter Unit with Pre-Filter for air filtration system
Product Overview
The Fan Filter Unit (FFU) is a self-contained, energy-efficient air filtration system designed to deliver purified air in controlled environments. It integrates a high-efficiency HEPA filter, a powerful fan, and an intelligent control system, ensuring optimal airflow and contamination control. This model includes a pre-filter to extend the HEPA filter's lifespan by capturing larger airborne particles, reducing maintenance costs, and improving efficiency.
Key Features
✅ Integrated Pre-Filter – Captures larger particles before they reach the HEPA filter, extending filter lifespan.
✅ High-Efficiency Filtration – HEPA filter with 99.99% efficiency at 0.3μm.
✅ Adjustable Airflow – Velocity control between 0.35 – 0.55 m/s for flexibility in various environments.
✅ Quiet Operation – Noise level below 60 dB, ensuring a comfortable working environment.
✅ Energy Efficient – AC/DC motor options with low power consumption.
✅ Lightweight Structure – Designed for seamless integration into ceiling keel systems.
✅ Remote & Group Control – Advanced control options for centralized management.
Specifications
Model | FFU-6090 | FFU-5757 | FFU-57117 | FFU-117117 |
Dimensions (mm) | 905×610×320 | 575×575×320 | 1175×575×320 | 1175×1175×320 |
Frame Material | Cold-rolled steel, Galvanized steel, Aluminum, Stainless steel | |||
Main Filter | HEPA Filter (99.99% @ 0.3μm) | |||
Pre-Filter | G3 Filtration Grade | |||
Airflow Rate (m³/h) | 800 | 550 | 1000 | 2000 |
Air Velocity (m/s) | 0.35 - 0.5 | |||
Noise Level (dB) | <60 | |||
Power Supply | 220/110V 50/60Hz | |||
Control Options | Stepless adjustment switch, remote control, group control | |||
Tech Support
✅ We provide comprehensive technical support, including:
✅ Installation guidance and system integration.
✅ Customization of filter grades and frame materials.
✅ Remote monitoring and control software options.
✅ Maintenance and troubleshooting services.
Applications
The FFU with pre-filter is widely used in industries that require stringent air cleanliness standards:
✅ Semiconductor & Electronics – Cleanrooms and production lines.
✅ Pharmaceutical & Biotechnology – Contamination-sensitive environments.
✅ Medical & Healthcare – Hospitals, laboratories, and diagnostic centers.
✅ Food & Beverage – Packaging and production facilities.
✅ Automotive & Precision Manufacturing – High-precision assembly lines.
