DC-FFU Fan Filter Unit with HEPA Filter for Clean Room

Product Overview

The DC-FFU (Direct Current Fan Filter Unit) is a next-generation modular air purification system engineered for ultra-high-cleanliness environments. Designed specifically for energy efficiency and precision control, the 1175×575mm (2 * 4ft) model integrates brushless DC motors, HEPA filters, and intelligent control systems to deliver stable laminar airflow (0.45 m/s ±20%). Its compact, lightweight structure ensures seamless integration into ceiling keel systems while achieving ultra-low noise levels (<50 dB). Ideal for ISO Class 1-1000 cleanrooms, this unit excels in particle removal, airflow uniformity, and operational cost savings, making it indispensable for industries demanding stringent contamination control and sustainable energy practices

Key Features

✅ Brushless DC Motor Technology

Energy Savings: Consumes 30-50% less power than traditional AC-FFUs, with a typical power range of 50-220W, reducing long-term operational costs

Stepless Speed Adjustment: Enables precise airflow control (0–0.6 m/s) via PWM-driven motors, optimizing performance for dynamic cleanroom requirements

Extended Lifespan: Rated for 100,000+ hours (≈10 years) of maintenance-free operation, outperforming AC motors in durability

✅ Intelligent Control System

Multi-Channel Remote Management: Supports centralized control via software for real-time monitoring of speed, voltage, and fault diagnostics across large-scale installations

LED Digital Interface: Displays operational status, speed levels, and filter life, with customizable settings for automated adjustments

✅ High-Efficiency Filtration

HEPA Filters: 99.99% efficiency @0.3μm, paired with low-resistance PTFE or glass fiber media to minimize energy loss and extend filter life

G3 Pre-Filters: Captures larger particles, reducing HEPA load and maintenance frequency

✅ Structural Advantages

Corrosion-Resistant Frames: Optional SUS304/316 stainless steel or galvanized steel for harsh environments

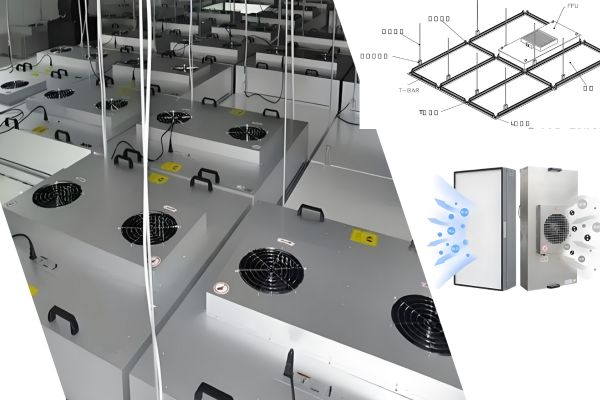

Modular Design: Compatible with standard ceiling grids (e.g., 1175×575mm, 600×600mm) and customizable for non-standard layouts

✅ Operational Excellence

Noise Reduction: Achieves **<30 dB** at low speed (27 dB in sleep mode), ideal for noise-sensitive environments like laboratories and hospitals

Uniform Airflow: Integrated aerodynamic diffuser ensures ±20% velocity uniformity, critical for ISO-certified cleanrooms

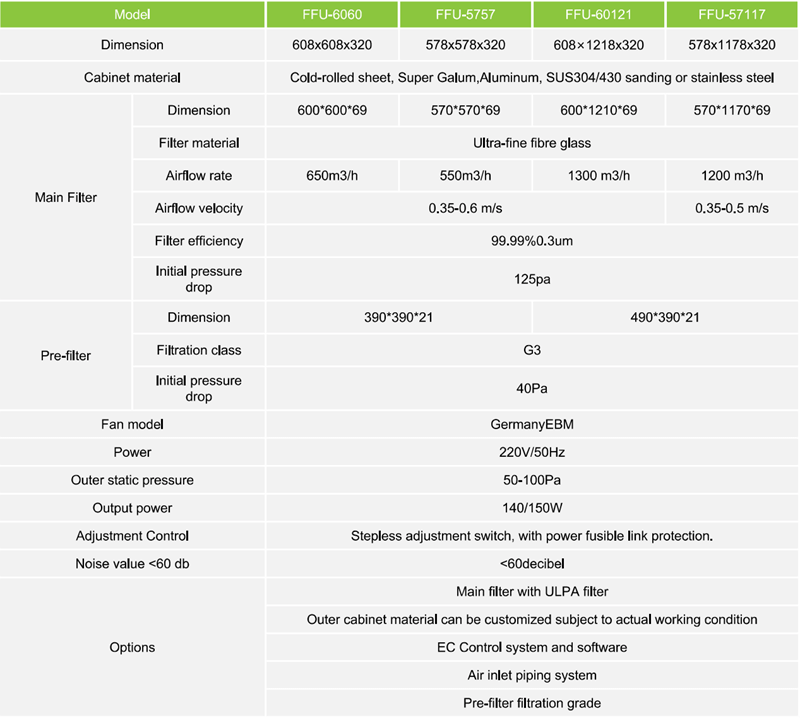

Specifications

Technical Support

✅ Smart Monitoring:

Real-time performance tracking via IoT-enabled EC control systems, including filter pressure drop alerts and motor diagnostics

✅ Customization:

Non-standard sizes (e.g., 575×875mm, 615×1225mm) and material adaptations for corrosive or explosive environments

✅ Maintenance Solutions:

Differential pressure sensors for predictive filter replacement

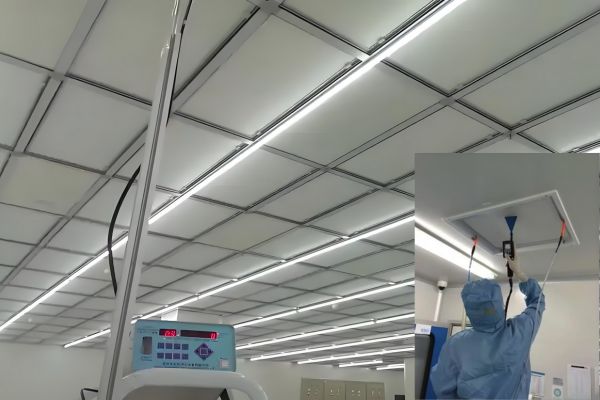

DOP testing ports for in-situ HEPA integrity checks

✅ Energy Audits:

Data-driven optimization plans to reduce energy use by up to 50% while maintaining ISO standards

Applications

✅ Pharmaceuticals & Biotechnology: Ensures sterile environments for vaccine production and sterile compounding

✅ Electronics Manufacturing: Protects semiconductor fabrication from micron-level contaminants

✅ Healthcare: Critical for operating theaters, PCR labs, and isolation wards requiring ultra-low noise and vibration

✅ Optics & Precision Engineering: Safeguards lens coating and microassembly processes with stable laminar flow

✅ Additional Use Cases:Energy-efficient retrofits for legacy AC-FFU systems

Modular cleanrooms and portable clean booths in R&D facilities
