Laminar Flow Hood Fan Filter Unit (FFU)

Product Overview

FFU (Fan Filter Unit) is a modular air purification device designed for high-cleanliness environments. The 1175×575mm（2*4ft）model integrates HEPA filters, high-efficiency fans, and intelligent control systems to deliver stable laminar airflow (0.45 m/s ±20%). Its compact design ensures seamless integration into ceiling keel systems while maintaining ultra-low noise levels (<60 dB). Suitable for ISO Class 1-1000 cleanrooms, this unit excels in particle removal and airflow uniformity, making it ideal for industries requiring stringent contamination control.

Key Features

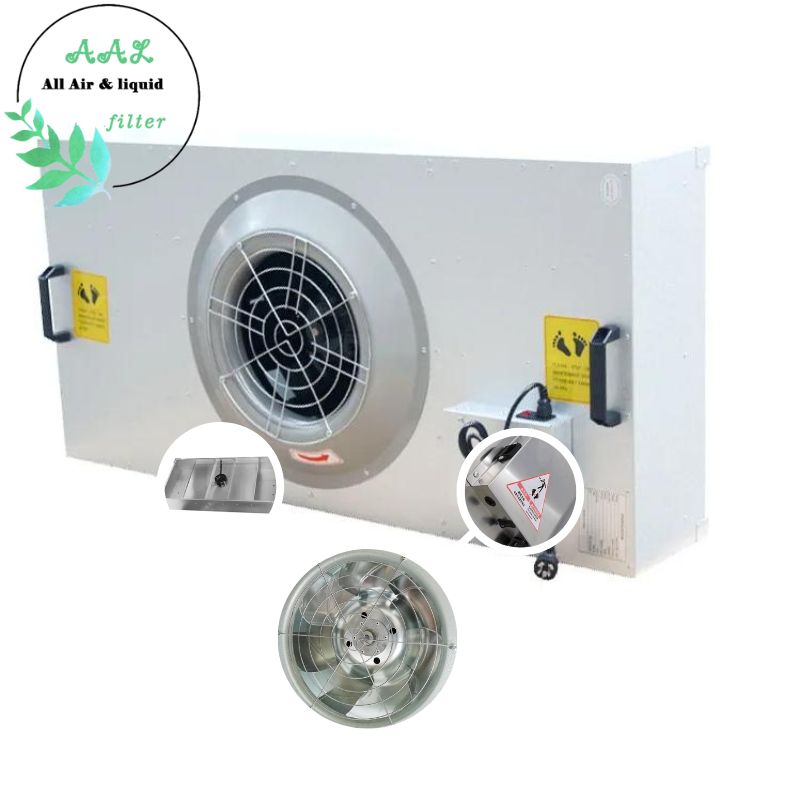

✅ Dual Motor Options

AC/DC motors with 3-year warranty, supporting stepless speed adjustment and energy savings up to 30%-50% compared to traditional systems

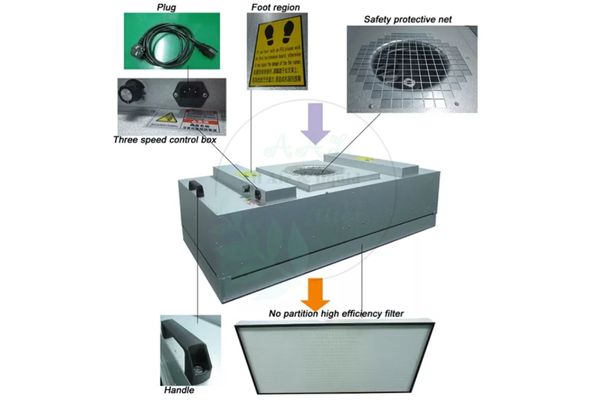

✅ Intelligent Control

3-channel phase wind speed adjustment, LED operation indicators, and computerized remote control for voltage/frequency/speed management

✅ High-Performance Filtration

HEPA filters with 99.99% efficiency @0.3μm, paired with G3 pre-filters to extend lifespan

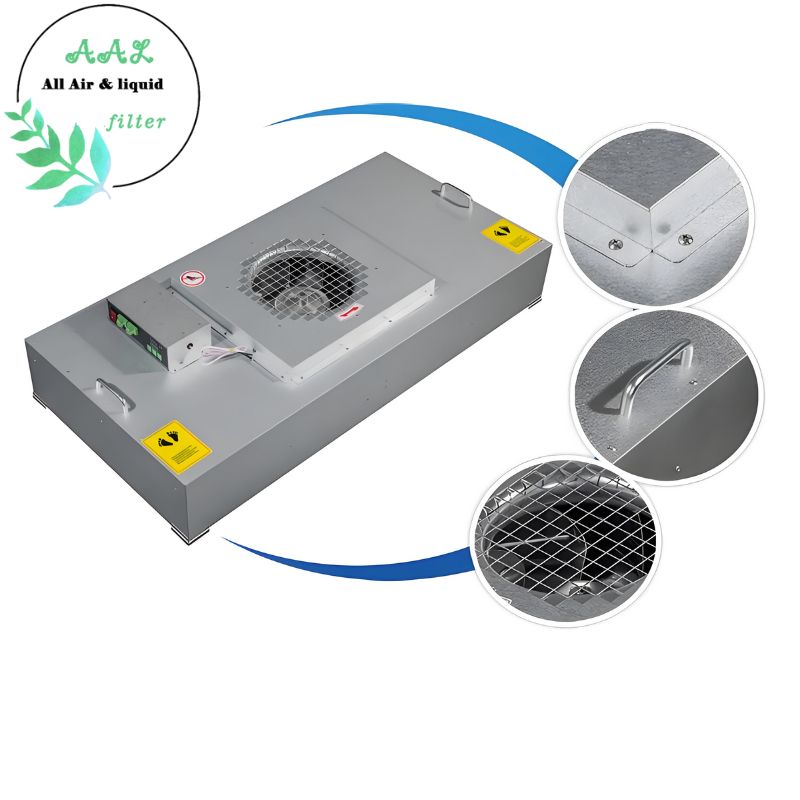

✅ Structural Flexibility

Lightweight modular design compatible with various ceiling systems; optional SUS304/316 stainless steel or galvanized steel frames for corrosive environments

✅ Energy Efficiency

Low energy consumption (140-150W) and optimized airflow design reduce operational costs

Specifications

Technical Support

✅ Customization Services

Non-standard sizes (e.g., 575×875mm, 615×1225mm) and material adaptations

✅ Remote Monitoring

EC control systems with software for real-time performance tracking and fault alerts

✅ Maintenance Solutions

Differential pressure alarms, DOP testing ports, and filter replacement guidance

✅ Energy Audits

Optimization plans to reduce energy consumption while maintaining ISO standards

Applications

✅ Electronics & Semiconductors

Critical for chip manufacturing and display panel production to prevent micron-level particle contamination

✅ Pharmaceuticals & Biotechnology

Ensures sterile environments for drug formulation and vaccine production

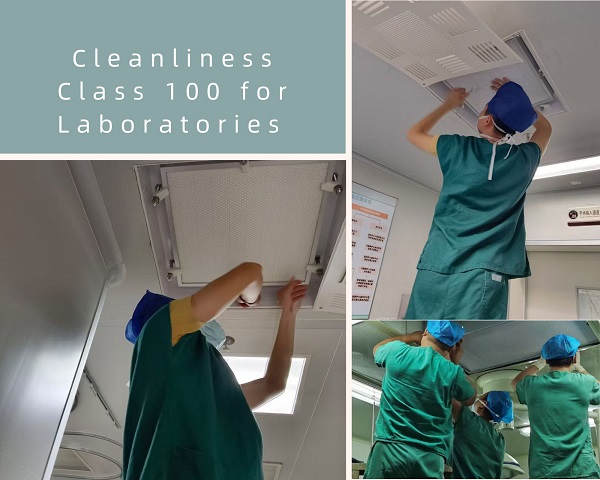

✅ Healthcare & Laboratories

Used in operating theaters, PCR labs, and clean benches

✅ Optics & Precision Engineering

Protects lens coatings and micro-assembly processes

✅ Food & Cosmetics

Maintains hygiene in packaging and ingredient processing

✅ Additional Use Cases:

Cleanrooms, mushroom cultivation chambers, automotive paint shops, and chemical handling zones
