250°C – 450°C High-Temperature High Efficiency HEPA Air Filter

Product Overview

AALfilter’s High-Temperature HEPA Air Filter is designed to provide high-efficiency air filtration in high-temperature environments up to 450°C. Utilizing corrugated aluminum foil separators, this filter ensures structural stability, high airflow, and uniform air distribution even under extreme conditions. Its ultra-thin, high-temperature-resistant fiberglass filter media effectively captures fine particles, making it ideal for industries that require clean air under high heat conditions such as pharmaceuticals, coating lines, ovens, aerospace, and automotive manufacturing.

Key Features

✅ High-Temperature Resistance – Suitable for continuous operation at 250°C, 350°C, and up to 450°C
✅ High Efficiency & Low Resistance – Captures 99.99% of airborne particles down to 0.3µm while maintaining low pressure drop
✅ Corrugated Aluminum Foil Separator – Provides excellent heat resistance, durability, and uniform pleat spacing
✅ Thicker Design (≥150mm) – Increases dust-holding capacity and supports high airflow rates
✅ Specialized High-Temperature Sealant & Gasket – Uses heat-resistant silicone and glue to prevent air leakage

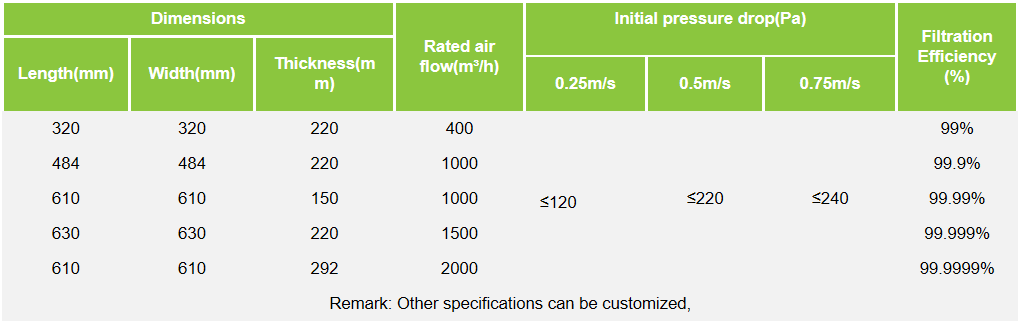

Specifications

· Filtration Class: H10, H11, H12, H13, H14 (EN1822)

· Filtration Target: Particles ≥0.5µm, ≥0.3µm

· Efficiency: 99%, 99.9%, 99.99%, 99.999% (ASHRAE 52.1-1992)

· Humidity Resistance: ≤100% RH

· Temperature Resistance:

o ≤250°C – Standard high-temperature applications

o ≤350°C – Moderate high-temperature filtration

o ≤450°C – Extreme high-temperature conditions

· Filter Media: High-temperature-resistant fiberglass filter paper

· Separator Material: Corrugated aluminum foil (for structural strength under heat)

· Sealant Glue: High-temperature-resistant adhesive

· Gasket Material: High-temperature-resistant silicone

· Outer Frame Options:

o Aluminum alloy

o Galvanized steel

o Stainless steel (SUS 201, SUS 304)

Applications

The High-Temperature HEPA Filter is essential for industries that operate under elevated temperatures, where maintaining air purity is critical:

✅  Industrial Ovens & Drying Systems – Used in powder coating, food processing, and ceramic kilns
✅  Aerospace & Aviation – Ensures clean air in high-temperature testing and manufacturing environments
✅ Pharmaceutical & Biotechnology – Maintains sterile conditions in high-temperature sterilization processes
✅  Automotive & Paint Booths – Filters contaminants in high-temperature paint curing ovens
✅ Semiconductor & Microelectronics – Provides particle-free environments under extreme heat conditions
✅ Chemical & Petrochemical Plants – Used in high-temperature gas filtration processes
✅ Metallurgy & Foundries – Protects equipment and personnel from airborne contaminants in high-heat production
✅ Hospital & Laboratory Sterilization Units – Ensures clean air in high-temperature decontamination areas
