60” 10um High Flow Filter Replacement for Parker – Reverse Osmosis RO Pretreatment Water Filter
- Direct Replacement-Fully compatible with Parker high flow filter
- High Performance-Each cartridge replaces 10 standard cartridges
- Cost Savings-Reduces the number of cartridges
- Wide Availability-Shorter lead times and reliable supply chain
High flow Filter Cartridge Replacement for Parker
Product Overview

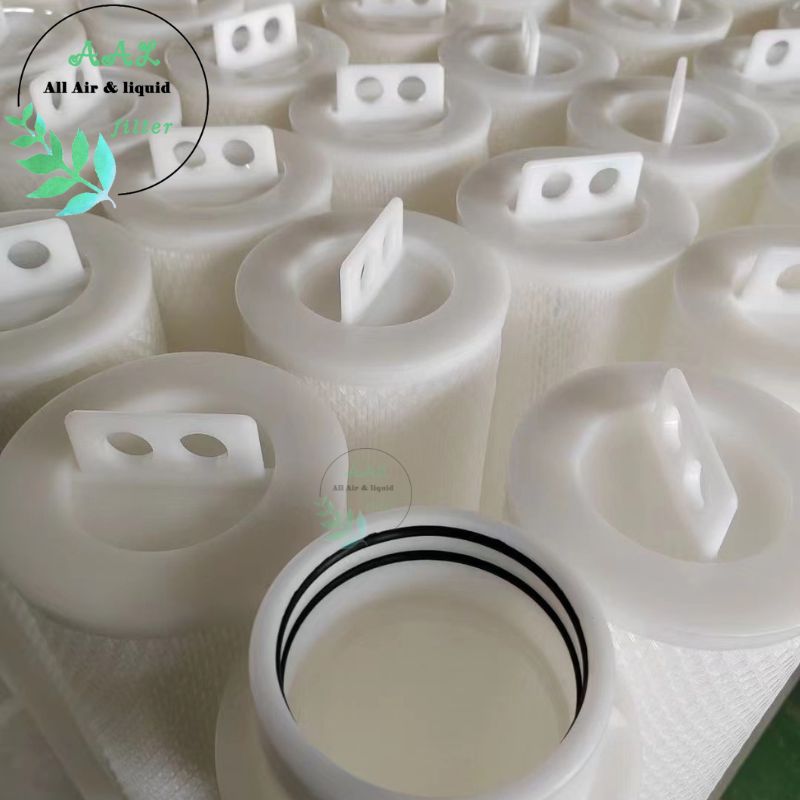

The High Flow Pleated Filter Cartridge is designed for high-flow, high-efficiency filtration applications. Made from advanced polypropylene microfiber, this cartridge features a large diameter (6 inches) and a pleated structure that maximizes filtration area and dirt-holding capacity. With high flow rates, low pressure drops, and wide chemical compatibility, it is an ideal cost-effective replacement for Parker high flow filter cartridges. Its unique design ensures no bypass, making it suitable for critical fluid filtration in industries such as water treatment, petrochemical, and food & beverage.
Key Features:
✅ High Flow Rate: Each cartridge can handle a flow rate equivalent to 10 standard 40-inch, 2.5-inch diameter cartridges, significantly reducing system footprint and costs.
✅ No Bypass Design: Inner single or double O-ring end caps ensure no bypass, providing consistent filtration performance.
✅ High Dirt-Holding Capacity: The pleated design and depth fine PP media provide exceptional dirt-holding capacity and long service life.
✅ Wide Chemical Compatibility: 100% polypropylene construction ensures compatibility with acids, alkalis, solvents, and other aggressive fluids.
✅ Easy Installation: Handle design simplifies installation and replacement, saving time and labor costs.
✅ Cost-Effective: Reduces the number of cartridges needed, saving space, maintenance, and operational costs.
Specifications:
Specification | Details |
Product Name | High flow Filter Cartridge Replacement for Parker |
Filter Media | Polypropylene (PP) |
Length Options | 20", 40", 60" |
Outside Diameter (OD) | 6 inches (152mm) |
Filtration Rating | 1μm, 3μm, 5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm |
Support/Drainage | Polypropylene (PP) |
End Cap Material | Glass fiber reinforced Polypropylene (PP) |
Cage Material | Polypropylene (PP) |
Seal Material | EPDM, Viton |
Max. Operating Temperature | 82°C (180°F) |
Max. Operating Pressure | 3.4 bar @ 82°C |
Flow Direction | Inside to Outside |
Surface Area | Larger than standard cartridges due to pleated design |
Recommended Change-out Pressure | 2.4 bar @ 20°C |
Tech Support
Our team is available for troubleshooting, technical assistance, and to help you select the right filtration solutions for your applications.
Applications
✅ Petrochemical & Refineries: Filtration of process fluids, injection waters, and chemicals.
✅ Food & Beverage: Filtration of bottled water, edible oils, soft drinks, and dairy products.
✅ Power Generation: Cooling water and boiler feedwater filtration.
✅ Water Treatment: Pre-filtration for RO systems and seawater desalination.
✅ Pharmaceutical: Filtration of APIs, solvents, and purified water.
✅ Paints & Inks: Filtration of industrial coatings, lacquers, and inks.
✅ Microelectronics: Filtration of ultrapure water and chemicals in semiconductor manufacturing.
✅ Steel Plants: Filtration of cooling water and process fluids.
