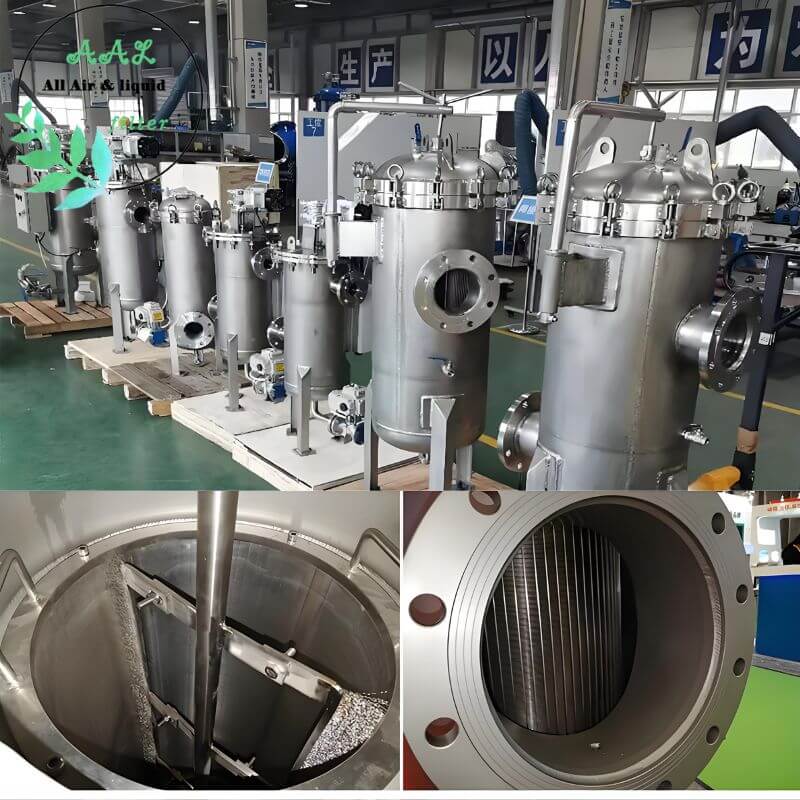

Automatic Brush Self-Cleaning Filter Housing
- High-Efficiency Filtration: 20-3000μm precision (customizable to 10μm)
- Intelligent Cleaning: Dual-mode activation with PLC control, zero water interruption during cleaning
- Low Operating Cost: 1% water consumption per flush, <¥500 annual energy cost, 10+ years lifespan
- Wide Compatibility: DN65-DN600 pipelines, 0.6-1.6MPa pressure, 0-95°C temperature
- Multi-Industry Use: Ideal for industrial cooling systems, seawater desalination, agriculture irrigation, and food-grade water treatment
Automatic Brush Self-Cleaning Filter Vessels
Product Overview

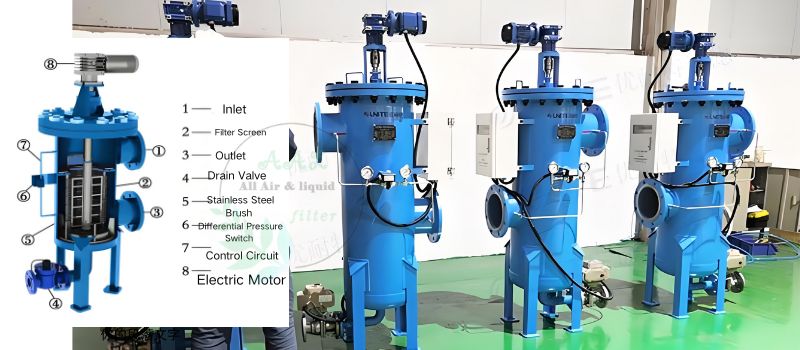

The Automatic Brush Self-Cleaning Filter Housing is an advanced filtration system designed for continuous water purification. It efficiently removes suspended solids, particulates, and other impurities from water, protecting downstream equipment and improving process efficiency.
With a fully automatic cleaning mechanism, it ensures uninterrupted operation while minimizing maintenance requirements.
The intelligent control system (PLC/PAC) automatically detects impurity accumulation and initiates the self-cleaning process, making it ideal for industrial applications requiring high reliability and minimal manual intervention.
Key Features
Continuous Operation: Self-cleaning function ensures uninterrupted water supply during the cleaning process.
High Filtration Precision: Filtering accuracy ranges from 20μm to 3000μm(customizable to 10μm filter ) with multiple filter mesh options available.
Large Filtration Area: Standard filter screen area is 7 to 40 times larger than the inlet pipe area.
Reliable Cleaning System: Multiple control options including manual, differential pressure, time-based, and PLC logic control.
Easy Installation & Maintenance: Modular design allows flexible installation and quick filter element replacement.
Durable Construction: Stainless steel filter element ensures a service life of over 10 years under normal operating conditions.
Customizable Specifications: Available in various sizes and materials (304, 316L, CS) to suit different industrial needs.
Specifications
Parameter | Details |
Filter Element Type | Wedge wire gap type, perforated mesh type (optional 304/316L stainless steel) |
Filtration Precision | 20-3000 μm (Supports custom 10μm ultra-fine filter mesh) |
Flow Range | 20-2500 m³/h |
Working Pressure | 0.6-1.0 MPa (Customizable up to 1.6 MPa for special requirements) |
Operating Temperature | 0-60°C (High-temperature models extend to 95°C) |
Motor Power | 0.55-0.75 kW |
Cleaning Water Consumption | Single cycle: 50-1000 L |
Drain Valve Diameter | DN25-DN80 |
Control Modes | Differential pressure start (default: 0.05 MPa), time start, manual control, PLC remote control |
Shell Material | Carbon steel (CS), 304 stainless steel, 316L stainless steel (optional anti-corrosion coating) |
Model | Pipe Diameter (mm) | Flow Rate (m³/h) | Filtration Area (m²) | Drain Valve (mm) | Cleaning Water Consumption (L) | Motor Power (kW) |
AAL-219 | 50 | 20 | 0.27 | 25 | 80 | 0.55 |
AAL-273 | 80 | 50 | 0.25 | 25 | 80 | 0.55 |
AAL-325 | 100 | 150 | 0.35 | 25 | 80 | 0.55 |
AAL-426 | 200 | 300 | 0.66 | 50 | 150 | 0.55 |
AAL-530 | 250 | 500 | 1.6 | 50 | 150 | 0.75 |
AAL-630 | 300 | 700 | 0.85 | 80 | 350 | 0.75 |
AAL-720 | 350 | 1100 | 1.3 | 80 | 450 | 0.75 |
AAL-820 | 400 | 1500 | 1.4 | 80 | 600 | 0.75 |
AAL-920 | 450 | 2000 | 1.8 | 80 | 800 | 0.75 |
AAL-1020 | 500 | 2500 | 2.3 | 80 | 1000 | 0.75 |
Applications
The Automatic Brush Self-Cleaning Filter Housing is widely used in various industries for water filtration and system protection:
Water Treatment Plants: Removal of large particles, pretreatment for downstream filtration systems.
Cooling Water Systems: Prevent clogging and scaling in heat exchangers and industrial cooling towers.
Spray Nozzle Protection: Ensures uniform spray patterns and prevents clogging in industrial spraying systems.
River/Lake Water Filtration: Removal of sand, debris, and organic matter from natural water sources.
Process Water Filtration: Ensures clean water supply for industrial processes, reducing contamination risks.
Wastewater Treatment: Enhances water reuse efficiency by removing large particulates before advanced filtration stages.
