#2 Side Entry Single Oil Filter Housing – SS304/316L For Oil & Process Fluids
- Side Entry Design
- Compatible with #1 / #2 / #3 / #4 Filter Bags
- General Industrial Construction
- Quick-Release Swing Bolts
- Universal Seal Compatibility
- Sandblasted Finish
Product Overview
The #2 Side Entry Single Oil Filter Housing from AAL Filter is specifically engineered for efficient filtration of oils and process fluids in industrial environments. Designed for low- to medium-viscosity liquids such as lubricating oil, hydraulic oil, and cutting fluids, it offers reliable performance and ease of maintenance.

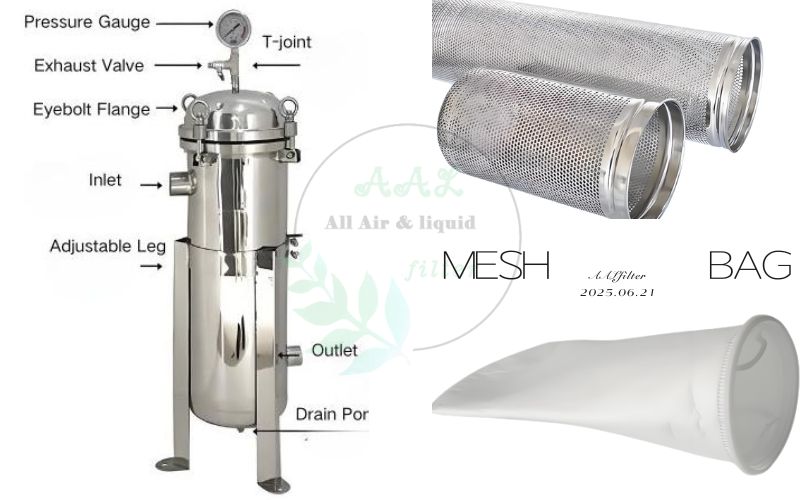

The side inlet and bottom outlet create a smooth horizontal flow path, reducing turbulence and ensuring effective contaminant capture. A swing-bolt closure and internal bag positioning ring provide secure sealing for both welded plastic collar filter bags and traditional sewn filter bags.

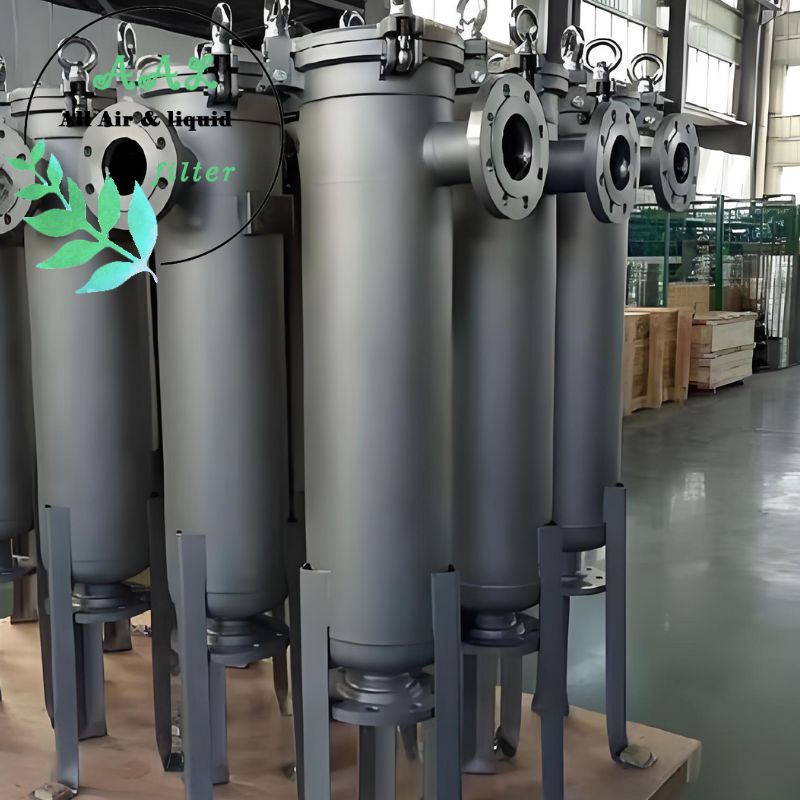

Constructed from SS304 or SS316L stainless steel, this housing resists corrosion and high temperatures, making it ideal for demanding oil filtration processes. Its sandblasted internal and external surfaces simplify cleaning, while compatibility with standard bag sizes (#1, #2, #3, #4) provides versatility for various flow rates and system configurations.
Key Features
Side-entry design for easy horizontal flow and simplified bag change-outs
Compatible with #01 / #02 / #03 / #04 standard filter bags
Secure sealing for both fully welded and sewn bag styles
Quick-open swing bolts for convenient access and operation
Sandblasted stainless steel finish for easy cleaning and corrosion resistance
Wide range of inlet/outlet sizes: DN25 to DN100
Supports multiple connection types: Flange, Tri-Clamp, or Threaded
Operating pressure up to 10 bar and temperature up to 120°C
Specifications
| Parameter | Details |
|---|---|
| Filter Bag Sizes (mm) | 180×450 (#1), 180×810 (#2), 105×230 (#3), 105×380 (#4) |
| Filtration Area (m²) | 0.25 / 0.5 / 0.09 / 0.16 |
| Max Flow Rate (m³/h) | 20 / 40 / 6 / 12 |
| Max Pressure (MPa) | 1.0 (10 bar) |
| Max Temp (°C) | 120 |
| Housing Material | SS304 / SS316L |
| Inlet/Outlet Sizes | DN25, DN38, DN50, DN80, DN100 |
| Connection Options | Flange / Tri-Clamp / Threaded |
| Surface Finish | Sandblasted / Polished |
| Seal Material | Silicone, Fluororubber, PTFE, Buna-N, Teflon |
Applications
This side-entry single bag filter vessel is ideal for general-purpose and medium-duty industrial filtration, including:
Industrial Water Filtration
RO Pre-Filtration Systems
Chemical Processing
Metalworking Fluids
Food & Beverage Manufacturing
Surface Coating and Paint Industries
Electronics and Plating Applications
