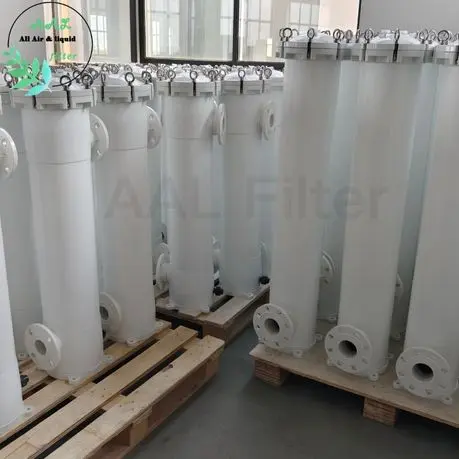

AAL FRP High Flow Cartridge Filter Housing Corrosion-Resistant FRP Industrial Water Filter

The AAL FRP High-Flow Cartridge Filter Housing, designed and manufactured by AAL Filter, is a premium industrial filtration solution built with high-strength FRP (fiberglass reinforced plastic). It provides excellent corrosion resistance, mechanical durability, and long-term stability across seawater, chemical, industrial water treatment, and high-flow liquid processing applications.

Compatible with single 40-inch high-flow filter cartridges, this housing supports large filtration capacity with reduced pressure drop, extended service life, and lower operating cost. It also supports 20-inch and 30-inch high-flow cartridges, enabling greater flexibility for different processes and system requirements.

AAL FRP high-flow housings are fully compatible with major brands such as Pall, Parker, and 3M, ensuring global supply-chain stability and easy cartridge sourcing. With lightweight construction, tool-free operation, and long service life, it is ideal for industrial filtration systems that require high efficiency and strong corrosion resistance.

AAL offers a comprehensive FRP product portfolio—including melt-blown cartridge housings, single-bag housings, high-flow cartridge housings, and multi-stage systems—to ensure full compatibility across flow demands and installation layouts.

Key Features

1. High-Capacity Design for 40-Inch High-Flow Cartridges

Engineered to support one 40-inch high-flow filter cartridge, delivering high flow rates, long filtration cycles, and reduced downtime.
Optional 20-inch and 30-inch versions are available upon request.

2. Corrosion-Resistant FRP Construction

Built from premium glass-fiber-reinforced plastic, the housing offers outstanding resistance to seawater, chemicals, and corrosive fluids, ensuring long-term reliability.

3. Compatible with Pall / Parker / 3M High-Flow Cartridges

Interchangeable with globally recognized brands, enabling users to adopt the most cost-effective and accessible filter supply.

4. Compression-Molded Components for Maximum Strength

All major FRP parts are compression-molded to achieve superior mechanical strength, impact resistance, and structural stability.

5. Easy Operation with Tool-Free Opening

Equipped with a manual lifting ring, operators can easily open or close the housing without tools—minimizing maintenance time.

6. Flexible Connection Options

Inlet/outlet connection type can be selected as:Flange、Clamp、Threaded

Available sizes: DN40, DN50, DN65, DN80

7. Wide Operating Range

Max Working Pressure: 0.8 MPa, Working Temperature: 5 – 66°C

Working Principle

The AAL FRP High-Flow Cartridge Filter Housing is a pressure-type filtration system. During operation, the liquid enters the vessel and passes through the high-flow pleated cartridge. Suspended solids, fine particles, colloids, and impurities are trapped within the filtration media, while the clean liquid flows out through the outlet.

With filtration ratings typically ranging from 1 to 100 μm, the housing ensures stable pre-filtration, coarse filtration, or medium-precision liquid purification in high-flow applications.

Model Specifications

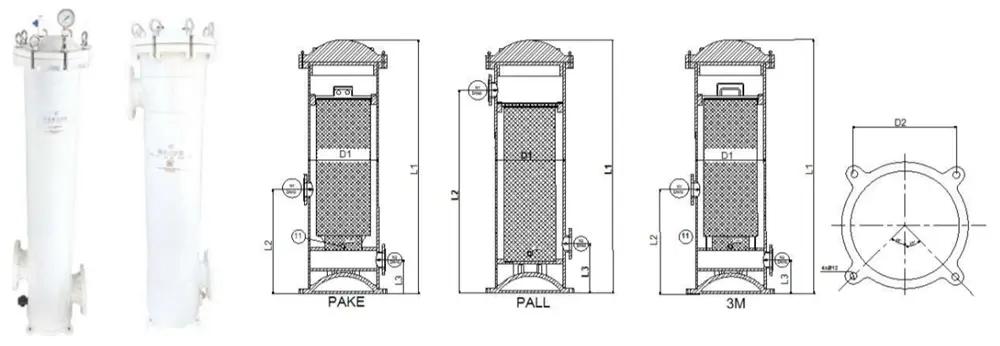

Installation Dimensions

Specifications

Note:The inlet and outlet connections can be selected as flange, clamp, or threaded type. The inlet and outlet sizes are available in DN40, DN50, DN65 and DN80.

Working Temp：5-66℃ .

Max Working pressure: 0.8 MPa,Dimension unit: mm .

Precautions

1.Ensure the high-flow cartridge is correctly installed; rotate the locking block 60° to secure it.

2.Do not exceed the rated pressure: ≤ 6 kg/cm².

3.Before startup, open the air-release valve to remove internal air; close it when fully filled.

4.Ensure the inlet–outlet pressure difference does not exceed 1.5 kg/cm². Replace filter media promptly when required.

Typical Applications

The AAL FRP high-flow housing is widely used in industries requiring high-capacity filtration and corrosion resistance, including:

● Seawater desalination & pretreatment
● Industrial water treatment & cooling systems
● Chemical processing & corrosive liquids
● Food & beverage production
● Power plants & boiler feedwater systems
● Environmental protection & wastewater treatment
● Electronics & fine chemical manufacturing

Your Reliable Partner for High-Flow FRP Filtration

With excellent corrosion resistance, long service life, and compatibility with global high-flow cartridge brands, the AAL FRP High-Flow Cartridge Filter Housing provides stable, efficient, and cost-effective operation for industrial filtration systems.

Contact us for detailed specifications, price quotations, or cartridge selection support—AAL Filter is ready to enhance your high-flow filtration performance.
