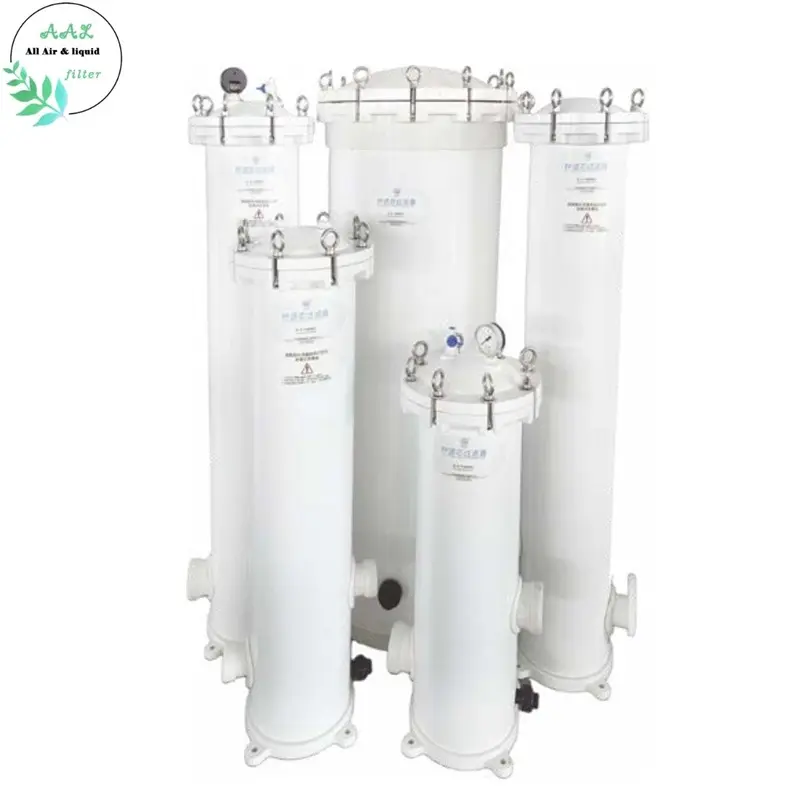

AAL FRP PP Melt-Blown Cartridge Filter Housing 5–31 element for Industrial & Seawater Pre-Filtration

The AAL FRP PP Melt-Blown Cartridge Filter Housing, designed and manufactured by AAL Filter, is built using high-strength fiberglass reinforced plastic (FRP) to deliver exceptional corrosion resistance, structural reliability, and long operational life—making it ideal for demanding industrial liquid filtration environments.

Compatible with multiple PP melt-blown cartridge configurations, this FRP housing supports: 20" 5 cartridges, 30" 5 cartridges, 40" 5 cartridges, 40" 12 cartridges, 40" 22cartridges, 40" 31 cartridges .

This provides unmatched flexibility across different filtration capacities, flow rates, and system designs. The housing serves as a key component in AAL’s FRP filtration product line, which includes FRP bag filter housings, high-flow cartridge housings, and multi-stage filtration systems—ensuring seamless compatibility and process integration.

With lightweight construction, excellent anti-corrosion performance, and easy maintenance, the AAL FRP PP Melt-Blown Cartridge Filter Housing is an efficient, reliable solution for industrial water treatment, seawater pre-filtration, chemical liquid purification, and general process filtration.

Key Features

1. Advanced FRP Winding Construction for Superior Strength

Manufactured with precision fiberglass winding technology, the housing provides exceptional corrosion resistance, high mechanical strength, and stable pressure performance—ideal for seawater, chemical liquids, and harsh industrial conditions.

2. Optimized Cartridge Positioning and Sealing Structure

The internal supporting plate and cartridge positioning design ensure stable installation, precise alignment, and reliable sealing, preventing bypass and enhancing filtration efficiency.

3. Full FRP Compression-Molded Components

All major structural parts are made using compression-molded FRP to guarantee long-term strength, excellent chemical resistance, and zero rusting—outperforming traditional metal housings in corrosive applications.

4. Multiple Cartridge Configurations for High Flow and Long Service Cycles

Supports up to 31 cartridges, achieving high flow capacity, extended operation time, and reduced maintenance frequency—perfect for large-scale industrial filtration systems.

5. Tool-Free Maintenance with Manual Lifting Ring

The manual lifting ring enables quick opening and closing without tools, simplifying cartridge replacement and reducing operating downtime.

6. Wide Compatibility with Standard PP Melt-Blown Cartridges

Fully compatible with standard 20", 30", and 40" melt-blown cartridges and interchangeable with leading brands such as Pall, Parker, and 3M—offering supply chain flexibility and lower operating cost.

7. Customizable Connections and Inlet/Outlet Sizes

Flange, clamp, or threaded connections optional.
Size options include DN40, DN50, DN65, DN80, DN100, DN150, suitable for different installation requirements and flow conditions.

Working Principle

The AAL FRP PP Melt-Blown Cartridge Filter Housing operates as a pressure filtration system. Liquid enters the housing and flows through PP melt-blown cartridges, where suspended solids, fine particles, colloids, and impurities are trapped on the fiber layers.

Available filtration accuracy ranges from 1 μm to 100 μm, achieving stable pre-filtration and polishing performance in a wide range of liquids.

The FRP structure ensures excellent resistance to corrosion, making the housing suitable for seawater desalination pretreatment, industrial water filtration, chemical processing, and wastewater purification.

Model Specifications

Installation Dimensions

Specifications

Max Working pressure: 0.8 MPa       Dimension unit: mm

Note:The inlet and outlet connections can be selected as flange, clamp, or threaded type. The inlet and outlet sizes are available in DN40, DN50, DN65, DN80, DN100 and DN150.

Working Temp：5-66℃ .

Precautions

1. Ensure the filter cartridges are properly installed and tighten the sealing block nut.

2. Do not exceed the rated working pressure (≤ 6 kg/cm²).

3. Before startup, open the air release valve; close it only after all air has been expelled.

4. Keep inlet–outlet differential pressure ≤ 1.5 kg/cm²; replace cartridges promptly when pressure rises.

Applications

The AAL FRP PP Melt-Blown Cartridge Filter Housing is widely used in industries requiring strong chemical resistance and long-term filtration stability, including:

● Industrial water treatment systems

● Seawater desalination pretreatment

● Chemical and corrosive liquid filtration

● Food & beverage processing

● Electronics and ultrapure water pre-treatment

● Environmental protection & wastewater treatment

● Pharmaceuticals and fine chemicals

AAL Filter ensures high reliability, stable performance, and lower operating cost across diverse industrial applications.

Your Reliable FRP Melt-Blown Cartridge Filtration Partner

Enhance your system’s efficiency, corrosion resistance, and operational stability with the AAL FRP PP Melt-Blown Cartridge Filter Housing. Designed for modern industrial filtration needs, it delivers robust performance and flexible configuration for a wide variety of liquids.

Contact us for product manuals, technical support, or quotation assistance—we are ready to support your filtration projects.
