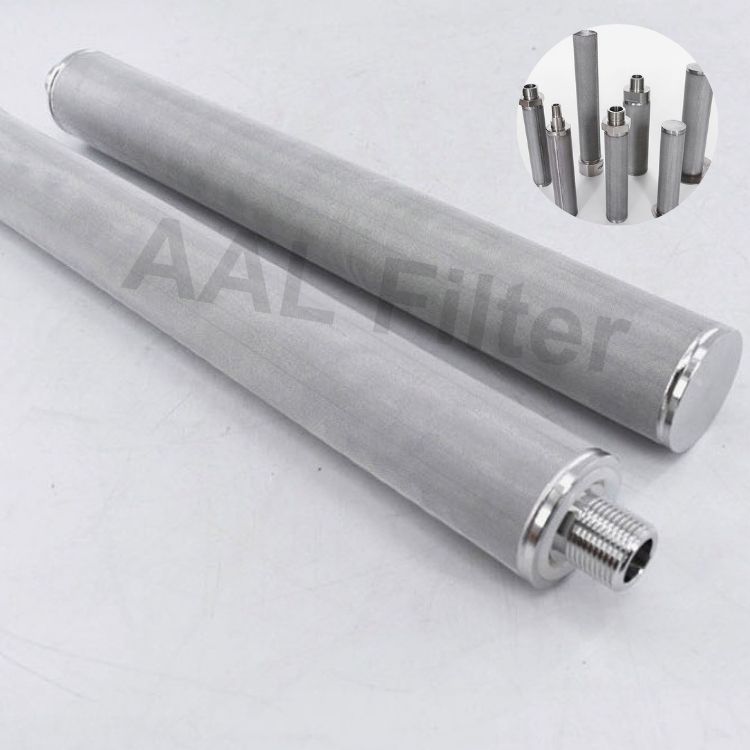

AAL-FSMM Five-Layer Sintered Metal Mesh Filter Cartridge:Reliable Solid-Liquid Separation with Five-Layer Sintered Stainless Steel Technology

Product Overview

The AAL-FSMM Five-Layer Sintered Metal Mesh Filter Cartridge is a robust, high-performance all-metal filter crafted from five layers of stainless steel wire mesh, seamlessly integrated through precision layering and high-temperature vacuum sintering. Renowned for its exceptional mechanical strength, resistance to high temperatures, high pressures, and corrosive environments, this cartridge is designed for solid-liquid separation in demanding industrial applications. It is widely used in critical filtration processes across petrochemical, power, metallurgy, food, and pharmaceutical industries.

What Are Metal Filter Cartridges?

Metal filter cartridges are engineered for challenging conditions where traditional filter media fall short, such as high temperatures, high pressures, corrosive chemical media, or scenarios requiring frequent cleaning and reuse. Typically made from 316L or 304 stainless steel, they can also incorporate titanium alloys for enhanced corrosion resistance and strength in extreme environments.

AAL Filter’s Metal Series

AAL Filter’s AAL-FSMM metal cartridge series is tailored for efficient solid-liquid separation in extreme conditions. Constructed from five layers of stainless steel wire mesh and processed with high-temperature vacuum sintering, these cartridges ensure high strength, stable pore distribution, and superior backwashing performance. The all-metal, integrated structure enhances mechanical durability and corrosion resistance, enabling multiple cleaning cycles and significantly extending service life. AAL-FSMM is a reliable choice for heavy-duty industrial filtration applications.

What Is the AAL-FSMM Five-Layer Sintered Mesh Cartridge?

The AAL-FSMM metal cartridge is crafted from five layers of stainless steel wire mesh, sintered at high temperatures to form a cohesive structure. Its multi-layer design includes a protective layer, control layer, dispersion layer, reinforcement layer, and support layer, each contributing to a graduated pore structure for uniform, precise filtration.

With consistent pore distribution, excellent backwashing capabilities, and robust mechanical strength, AAL-FSMM excels in high-efficiency solid-liquid separation for fluids containing rigid particles, high viscosity, or high temperatures.

Product Highlights

1️⃣ Five-Layer Sintered Structure: High-temperature sintering ensures uniform, stable pores and high strength with no deformation.
2️⃣ All-Stainless Steel Material: Ideal for corrosive media, high temperatures, and high-pressure conditions.
3️⃣ High Dirt-Holding Capacity: Large flow design extends replacement cycles for particle-laden fluids.
4️⃣ Superior Backwashing Performance: Rigid structure resists clogging and supports high-pressure backwashing for multiple reuse cycles.
5️⃣ No Fiber Shedding: Prevents secondary contamination, perfect for food, pharmaceutical, and high-cleanliness industries.
6️⃣ Customizable Design: Adjustable length, interface, and filtration precision to meet specific needs.
7️⃣ High-Temperature & High-Pressure Resilience: Stable performance up to 480°C and 30MPa.

Technical Specifications

 Applicable Scenarios

With its stable structure and superior performance, the AAL-FSMM cartridge is widely used in the following conditions and industries:

🔹High-efficiency solid-liquid separation for particle-laden fluids.

🔹Precision filtration of gases and liquids under high temperatures and pressures.

🔹Petrochemical and natural gas pipeline filtration.

🔹Lubricating oil and hydraulic oil filtration in petrochemical equipment.

🔹Cooling water and lubrication system filtration in power and steel industries.

🔹High-cleanliness process filtration in food, pharmaceutical, and beverage industries.

🔹Liquid purification systems in electronics and precision machinery.

Cleaning Methods

Online Backwashing

🔹During system operation, close the feed valve and inject clean water or cleaning fluid through the cartridge outlet at 5–6 kg/cm² pressure to remove surface and pore contaminants effectively.

Offline Chemical Cleaning

🔹Remove the cartridge and place it in ultrasonic equipment or a heated tank with alkaline, acidic, or organic cleaning agents (selected based on media type). After cleaning, air-dry or bake for reuse.

Post-cleaning, the cartridge can return to near-original filtration performance, supporting dozens of reuse cycles.

Frequently Asked Questions (FAQ)

Q1: What advantages does the five-layer sintered mesh cartridge offer over standard filters?
🅰️Its integrated structure, stable pore size, high mechanical strength, and excellent backwashing make it superior to single-layer mesh or fiber filters for demanding industrial applications.

Q2: Is it suitable for food or pharmaceutical industries?
🅰️Yes, AAL-FSMM’s material meets stringent cleanliness and non-shedding requirements for food and pharmaceutical applications.

Q3: How many times can it be cleaned, and what is its lifespan?
🅰️With proper use and regular cleaning, it can be reused dozens to hundreds of times, significantly reducing costs.

Q4: Can interfaces or sizes be customized?
🅰️Absolutely. We offer customization for cartridge length, diameter, connection types, and precision grades to match your equipment standards.

Conclusion

The AAL-FSMM Five-Layer Sintered Metal Mesh Filter Cartridge combines high-strength construction, precise filtration, and exceptional regeneration capabilities, making it an ideal choice for demanding conditions. Whether tackling high temperatures, pressures, corrosive media, or high-precision separation, AAL-FSMM delivers stable, efficient, and cost-effective filtration solutions.

AAL Filter: Your Trusted Partner in Premium Industrial Filtration Solutions

Contact us For more product details or to request a sample, contact our technical sales team. AAL Filter is committed to delivering high-performance, reliable industrial filtration solutions globally.
