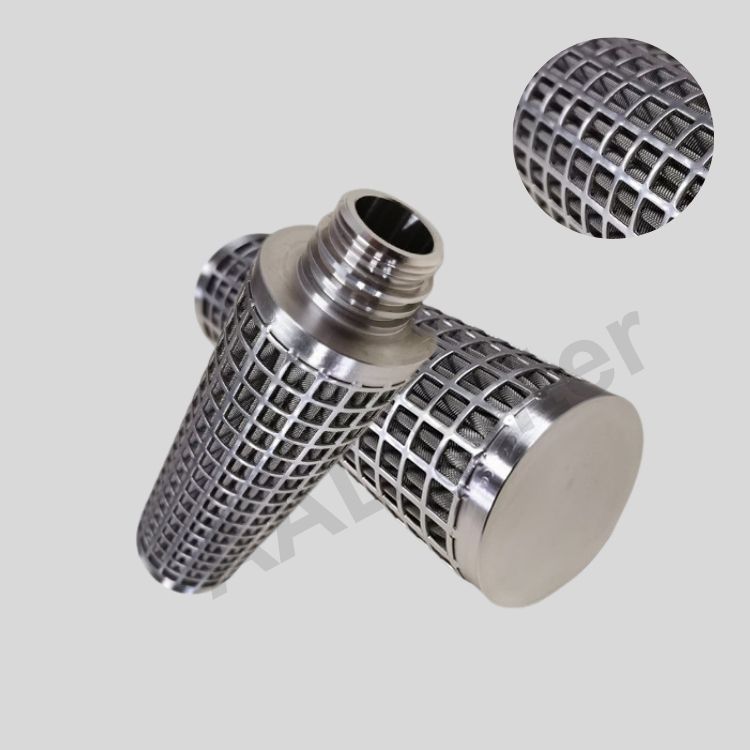

AAL PSM Pleated Stainless Steel Mesh Melt Filter Cartridge: Durable, Reusable Filtration for High-Temperature Melt and Viscous Fluid Applications

Product Overview

The AAL PSM Pleated Stainless Steel Mesh Melt Filter Cartridge is engineered with woven stainless steel mesh as its primary filter media, utilizing a precision pleated structure to significantly enhance filtration surface area and flow efficiency. Renowned for its exceptional temperature and pressure resistance, this cartridge excels in precision filtration for demanding conditions involving molten materials, high-temperature liquids, and corrosive media.

What Are Metal Filter Cartridges?

Metal filter cartridges are designed for challenging applications where conventional filter media fall short, such as high temperatures, high pressures, corrosive chemical media, or scenarios requiring frequent cleaning and reuse. Typically crafted from 316L or 304 stainless steel, they can also incorporate titanium alloys for enhanced corrosion resistance and strength in extreme environments.

AAL Filter’s Metal Series

AAL Filter’s AAL PSM metal cartridge series is specifically developed for high-temperature, high-pressure, and high-viscosity molten media filtration needs. Featuring multi-layered woven stainless steel mesh as the core filter media, combined with precision pleating and full-welded construction, the AAL PSM delivers a robust, corrosion-resistant cartridge with an expansive filtration surface area.

Through optimized pleated design, the AAL PSM maximizes filtration efficiency while maintaining a compact form factor, making it ideal for high-viscosity fluids and precision filtration applications. Its all-stainless steel construction ensures outstanding high-temperature performance and mechanical strength, supporting multiple regeneration methods like backwashing, ultrasonic, and chemical cleaning. This reusability reduces operating costs and extends equipment lifecycle, positioning AAL PSM as a trusted industrial filtration solution for rigorous conditions.

What Is the AAL PSM Pleated Stainless Steel Mesh Melt Cartridge?

The AAL PSM metal cartridge employs multi-layered woven stainless steel mesh as its primary filter media, formed through precision pleating to create a large filtration surface area and stable flow path. Its typical structure comprises inner and outer support meshes, a primary filtration layer, and a protective layer, sealed with argon arc welding for superior structural integrity and leak-proof performance.

With uniform pore distribution, exceptional high-temperature and high-pressure resistance, and excellent cleanability, the AAL PSM is optimized for efficient filtration of high-temperature molten materials, viscous liquids, or particle-laden chemical media. Its all-metal construction ensures long-term stability in complex conditions, meeting the stringent demands of industrial filtration for strength, efficiency, and reusability.

Product Highlights

1️⃣ All-Stainless Steel Construction: Made from 304/316L high-quality stainless steel mesh, offering excellent mechanical strength and chemical compatibility.
2️⃣ Reusable & Cleanable: Supports backwashing, high-pressure water, ultrasonic, and chemical cleaning methods.
3️⃣ High-Temperature & High-Pressure Resilience: Withstands up to 650°C and 30MPa pressure.
4️⃣ Precision Welded Structure: Argon arc welding ensures robust seams with zero leakage risk.
5️⃣ Uniform Pore Consistency: Woven mesh delivers stable pore sizes for consistent filtration precision.
6️⃣ Customizable Filter Layers: Multi-layer designs with coarse-to-fine gradients enhance dirt-holding capacity and filtration depth.
7️⃣ High-Viscosity Media Friendly: Ideal for molten materials, colloids, heavy oils, and polymers.

Technical Specifications

Applicable Scenarios

With its superior adaptability to high temperatures and pressures, coupled with robust structural integrity, the AAL PSM Pleated Metal Cartridge is widely used in the following industrial applications:

🔹Melt Filtration: Molten plastics, fibers, and rubber.

🔹High-Temperature Liquid Precision Filtration: Heat transfer oils, resins, and polymers.

🔹Viscous Chemical Media Processing: Handling corrosive and particle-laden fluids.

🔹High-Pressure Reactor System Filtration: Critical process filtration.

🔹Petrochemical, Metallurgy, and Pharmaceutical Industries: High-purity process filtration.

🔹Food Industry: Purification of syrups, pectin, and condiments.

Cleaning and Maintenance

Online Backwashing

🔹Close inlet and outlet valves and use clean reverse fluid at 5–6 kg/cm² pressure to flush the cartridge interior, suitable for light blockages or routine maintenance.

Offline Cleaning

🔹Remove the cartridge and soak it in alkaline/acidic cleaning solutions. Combine with ultrasonic or hot water cleaning to thoroughly remove adhered impurities, extending cartridge lifespan.

Frequently Asked Questions (FAQ)

Q1: What media can the AAL PSM filter?
🅰️Suitable for molten materials, hot oils, colloids, viscous chemicals, steam, and other high-temperature, high-pressure fluids, as well as precision particle retention.

Q2: How many times can the cartridge be reused?
🅰️Under proper conditions, the cartridge can be cleaned and regenerated dozens of times, significantly reducing operational costs and replacement frequency.

Q3: Can special interfaces or sizes be customized?
🅰️Yes. AAL offers customization for sizes, threaded interfaces, and precision grades.

Q4: What are the structural advantages of this cartridge?
🅰️Its multi-layer pleated structure and precision argon arc welding ensure high strength, long lifespan, no fiber shedding, and online backwashing capability, surpassing traditional cartridges.
