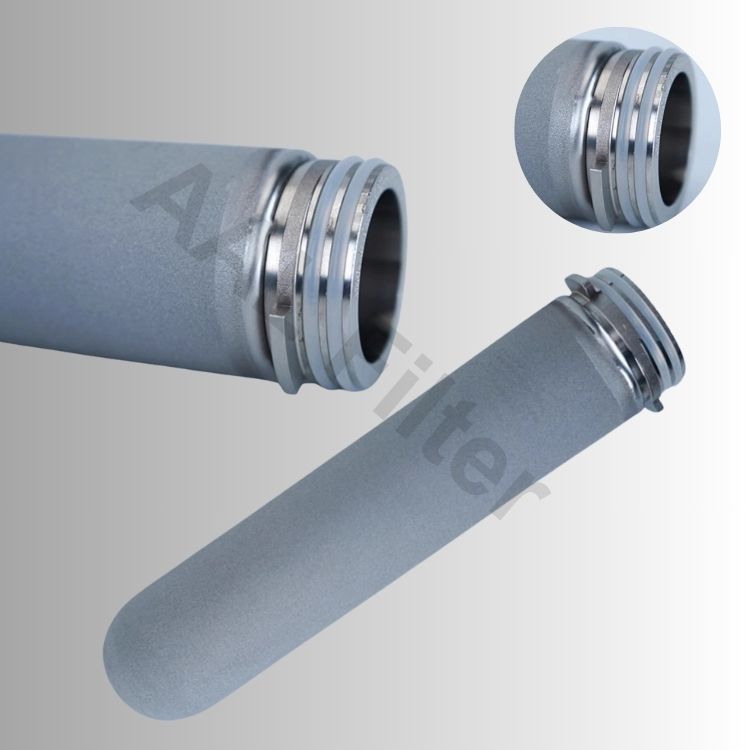

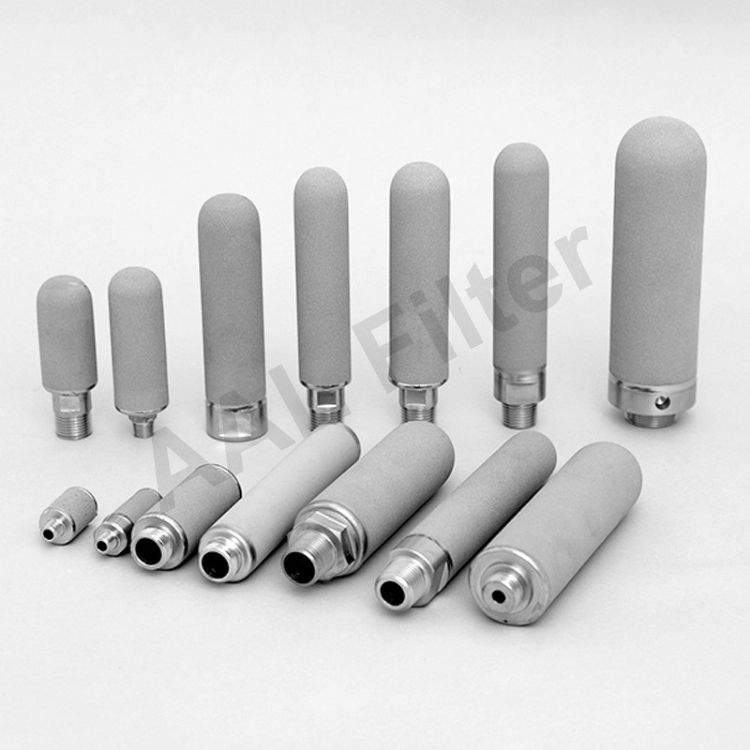

AAL-TPS Titanium Powder Sintered Filter Cartridge: High-Purity Titanium Filtration for Extreme Temperatures, Corrosive Media, and Ultra-Clean Applications

Product Overview

The AAL-TPS Titanium Powder Sintered Filter Cartridge is crafted from high-purity industrial titanium powder through high-temperature sintering, delivering a dense structure, high filtration precision, exceptional corrosion resistance, and zero particle shedding. Its high porosity and uniform porous structure ensure outstanding performance in liquid-solid and gas-solid separation, making it ideal for critical filtration in high-temperature, highly corrosive, and high-purity processes.

What Are Metal Filter Cartridges?

Metal filter cartridges are designed for challenging conditions where conventional filter media fall short, such as high temperatures, high pressures, corrosive chemical media, or applications requiring frequent cleaning and reuse. Common materials include 316L or 304 stainless steel, with titanium alloys used in extreme environments for enhanced corrosion resistance and strength.

AAL Filter’s Metal Series

AAL Filter’s AAL-TPS Titanium Powder Sintered Cartridge series is engineered for efficient solid-liquid separation in high-temperature, highly corrosive, and high-purity conditions. Made from ≥99.4% high-purity industrial titanium powder via high-temperature and high-pressure sintering, these cartridges form a uniform, stable porous metal medium. The all-titanium, integrated structure offers superior mechanical strength, chemical stability, and long-term reliability in harsh environments. Supporting multiple cleaning and regeneration cycles, AAL-TPS significantly reduces maintenance costs, making it an ideal choice for demanding filtration applications.

What Is the AAL-TPS Titanium Powder Sintered Cartridge?

The AAL-TPS cartridge features a uniform porous structure with a narrow pore size distribution, ensuring efficient solid-liquid separation. Available in flexible formats such as tubular, plate, or disc configurations, it is widely used in high-standard industries like pharmaceuticals, food, electronics, petrochemicals, and water treatment.

Core Advantages of AAL-TPS Titanium Filter Cartridge

1️⃣ High-Purity Titanium Structure: Made from >99.4% pure titanium, non-magnetic, non-toxic, and compliant with GMP standards for food and pharmaceuticals.
2️⃣ High-Temperature & Corrosion Resistance: Stable operation up to 280°C, with excellent resistance to acids, alkalis, and oxidation.
3️⃣ High Porosity Design: 28–45% porosity ensures excellent flow rates and low pressure drop.
4️⃣ No Particle Shedding: Prevents secondary contamination, ideal for ultra-pure processes.
5️⃣ Reusable & Cleanable: Supports high-temperature, ultrasonic, or chemical cleaning, offering a lifespan far exceeding conventional cartridges.
6️⃣ Strong Microbial Inertness: Does not react with microorganisms, perfect for high-cleanliness requirements.

Technical Specifications

Applicable Scenarios

The AAL-TPS Titanium Powder Sintered Cartridge is designed for high-purity, high-temperature, and highly corrosive filtration processes, with applications in:

🔹Pharmaceutical Industry: Decarbonization filtration in large-volume injectables, small injections, eye drops, and oral liquids; impurity removal, decarbonization, and fine filtration in API production.

🔹Water Treatment: Security filtration for UF, RO, and EDI systems; post-ozone sterilization filtration; pre-RO filtration in seawater desalination.

🔹Food & Beverage: Clarification filtration for beverages, juices, liquors, beers, vegetable oils, mineral water, soy sauce, and vinegar.

🔹Chemical Industry: Decarbonization and precision filtration of liquid products, raw materials, and pharmaceutical intermediates; filtration and recovery of ultrafine crystals and catalysts; precision filtration post-resin adsorption; impurity removal in heat transfer oils and materials; high-temperature decarbonization and clay removal in dyes.

🔹Petroleum Industry: Filtration of reinjected water, high-temperature heat transfer oil, and impurity recovery.

🔹Gas Purification: High-temperature, high-pressure purification of steam, compressed air, and catalytic gases.

Cleaning and Regeneration Methods

Online Backwashing

🔹Introduce clean fluid through the outlet port at medium to low pressure to reverse-flush the filter media, effectively removing surface contaminants.

Offline Ultrasonic Cleaning

🔹Soak the cartridge in a specialized cleaning solution (e.g., citric acid or sodium carbonate) and use ultrasonic or high-temperature cyclic cleaning devices for multiple regeneration cycles.

Frequently Asked Questions (FAQ)

Q1: What advantages do titanium cartridges have over stainless steel?
🅰️Titanium offers superior corrosion resistance and chemical stability, especially in strong acids, alkalis, and high-purity media, with no metal ion leaching.

Q2: Are they suitable for food and pharmaceutical industries?
🅰️Yes. AAL-TPS cartridges use high-purity titanium, which is non-toxic, non-magnetic, and GMP-compliant for food and pharmaceutical applications.

Q3: Can special structures be customized?
🅰️Absolutely. We offer full customization of cartridge dimensions, structure types, and connection interfaces.

Q4: How do I know when to replace the cartridge?
🅰️Replacement is typically determined by rising pressure differentials, reduced flow rates, or reaching the maximum cleaning cycles. Use pressure differential monitoring devices for optimal management.
