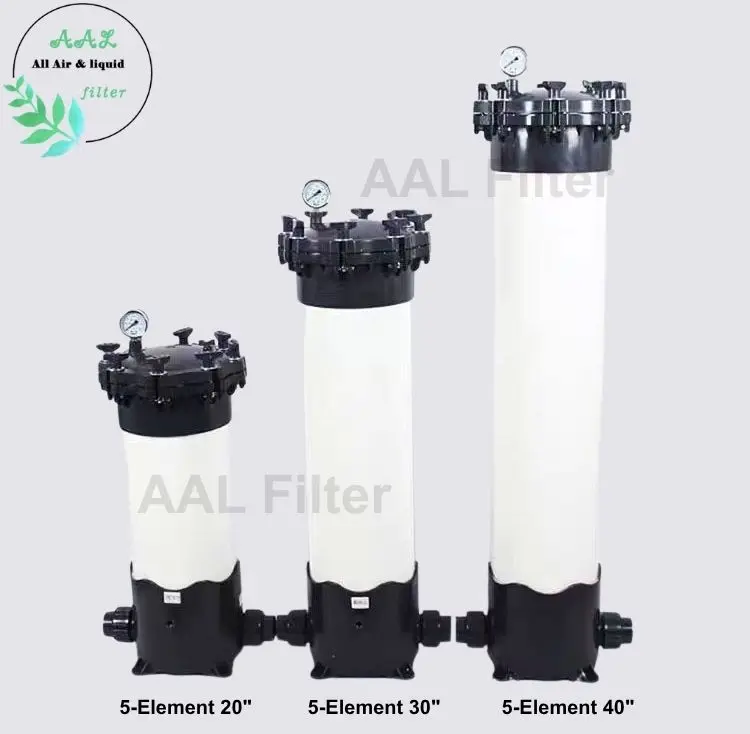

AAL3C & AAL5C UPVC Cartridge Filter Housing High-Precision and Corrosion-Resistant

Product Overview

The AAL3C & AAL5C UPVC Cartridge Filter Housing from AAL Filter is a high-precision filtration unit designed for a wide range of industrial and commercial water treatment applications.

Manufactured from unplasticized polyvinyl chloride (UPVC), this cartridge filter housing offers excellent chemical resistance and corrosion protection, making it ideal for harsh environments where metal materials may degrade.

As a security filter housing (also known as a precision filter housing), it plays a crucial role in pre-filtration processes—protecting downstream equipment such as reverse osmosis membranes, ion exchange systems, and fine filters.

With 3-core (AAL3C) and 5-core (AAL5C) configurations, AAL Filter provides flexible solutions to meet different flow rate and filtration capacity requirements.

Each housing is engineered for durability, easy maintenance, and leak-free performance, ensuring stable operation and long service life under various working conditions.

Whether you are upgrading your industrial water treatment plant or building a compact filtration unit, AAL Filter’s UPVC cartridge filter housing delivers dependable, efficient, and cost-effective filtration performance.

Key Features

1.High-Quality UPVC Construction

The filter housing is manufactured from durable UPVC material through one-piece molding, ensuring structural integrity and consistent quality. Its lightweight design allows for easy installation, cartridge replacement, and maintenance.

2. Inline Inlet and Outlet Configuration

Both the inlet and outlet are positioned on the same horizontal axis and connected via 1.5” or 2” union joints, providing a compact, space-saving layout with a clean and professional appearance.

3. Optimized Water Distribution System

The internal flow path is precisely engineered to allow water to enter from the center bottom and flow evenly outward, minimizing pressure loss and ensuring uniform filtration. An air vent valve on the top enables convenient air release and stable system operation.

4. Integrated Structure for Leak Prevention

Both the bottom distribution system and top cartridge clamping plate are designed as integrated assemblies, simplifying cartridge installation and ensuring reliable compression. This design effectively prevents internal leakage and enhances sealing performance.

5. Reliable and Flexible Sealing Design

Type A: Utilizes a wide-thread cap connection between the cover and body, ensuring strong sealing and effortless cartridge replacement.

Type B/C: Employs a flange and eye-bolt sealing system, allowing the housing to withstand higher operating pressure and maintain long-term stability.

6. Superior Corrosion Resistance and Cost Efficiency

Constructed entirely from UPVC, this filter housing delivers excellent corrosion resistance, especially suitable for acidic, alkaline, or saline environments where stainless steel may fail. It provides a cost-effective and durable solution for chemical processing and water treatment industries.

Model Specifications

Optional Bolts and Pressure Gauge Configurations

Specifications

AAL3C Model – 3-Cartridge UPVC Filter Housing Specifications

The AAL3C UPVC Cartridge Filter Housing is designed to hold three filter cartridges, offering compact size and stable filtration performance for small to medium-capacity water treatment systems. It is ideal for applications requiring high-precision pre-filtration with limited installation space.

Reference Flow (m³/h) is calculated based on the data of 40'' Cartridge Filter (5μm): 1.5–2 m³/h

AAL5C Model – 5-Cartridge UPVC Filter Housing Specifications

The AAL5C UPVC Cartridge Filter Housing accommodates five filter cartridges, providing higher flow capacity and longer filtration cycles. It is suitable for large-scale pure water systems, seawater desalination, and industrial liquid treatment processes.

 Reference Flow (m³/h) is calculated based on the data of 40'' Cartridge Filter (5μm): 1.5–2 m³/h

Note:

● Inside the housing, various filter cartridges with an inner diameter of 28–30 mm and an outer diameter of 60–70 mm can be installed, available in different materials and micron ratings. The design accommodates flat-end cartridges or standard 222 O-ring cartridges, in 3-cartridge or 5-cartridge configurations.

● The maximum operating temperature is 45°C.

● The top cover is equipped with threaded ports (size G1/4") for installing an air vent valve and a pressure gauge.

● When using a metric pressure gauge, an adapter is required.

● If a PP diaphragm pressure gauge is needed, please specify this when placing the order.

Applications

The AAL3C & AAL5C UPVC Cartridge Filter Housing is widely used across multiple industries that require reliable and chemical-resistant filtration solutions, including:

● Water purification and pretreatment systems

● Seawater desalination and brackish water treatment plants

● Chemical processing and acid-alkaline liquid filtration

● Electronics and semiconductor manufacturing

● Food and beverage production

● Pharmaceutical and laboratory water systems

● Household and commercial waterurification units

Its UPVC construction makes it particularly suitable for corrosive or high-salinity environments, where stainless steel filters may suffer from degradation.
