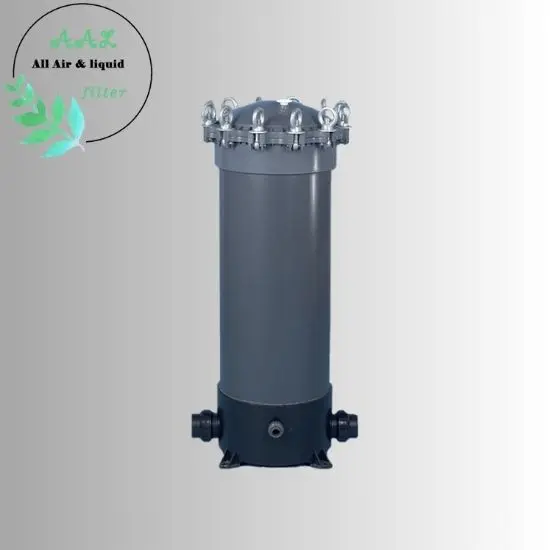

AAL8C & AAL9C UPVC Cartridge Filter Housing Corrosion-Resistant Filtration High Flow Water Treatment

Product Overview

The AAL8C & AAL9C UPVC Cartridge Filter Housing from AAL Filter is a high-precision security filter (also known as a precision filter housing) designed for medium-to-large flow industrial and commercial water treatment processes. Built from high-quality unplasticized polyvinyl chloride (UPVC), this housing delivers excellent corrosion resistance and long-term reliability, especially in environments where stainless steel may suffer degradation.

Engineered for pre-filtration applications, the housing effectively removes suspended solids and protects downstream equipment such as RO membranes, ultrafiltration modules, ion-exchange systems, and fine polishing filters.

Available in 8-cartridge (AAL8C) and 9-cartridge (AAL9C) configurations, this UPVC security filter offers higher flow capacity, longer service cycles, and improved filtration efficiency—making it an ideal solution for pure water systems, seawater desalination plants, brackish water treatment units, chemical processing, and household/commercial purification systems.

Designed for durability, operational stability, and easy maintenance, the AAL8C & AAL9C UPVC Cartridge Filter Housing ensures dependable performance even under corrosive, high-salinity, or chemically aggressive conditions.

Key Features

1. High-Quality One-Piece UPVC Construction

The housing body is manufactured from durable UPVC material using a single-piece molding process to ensure structural strength and standardized production quality. Its lightweight nature allows easy installation, filter replacement, and routine maintenance.

2. Inline 3-Inch Inlet and Outlet Design

The inlet and outlet ports are positioned along the same horizontal axis and connected with 3” union joints, offering:

● A compact installation layout

● Simple system integration

● A visually neat and professional appearance

This design is particularly suitable for modular filtration systems and confined installation spaces.

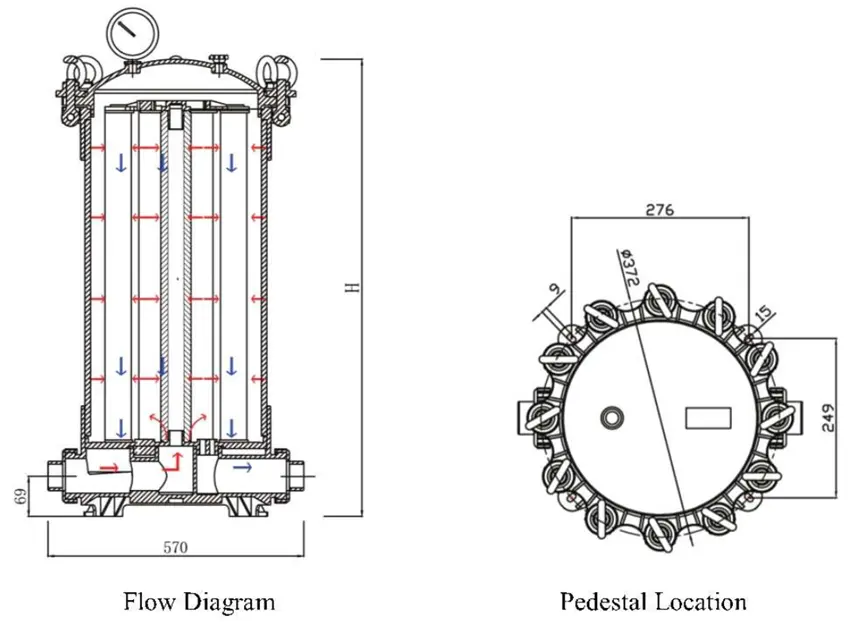

3. Optimized Water Distribution System

The internal hydraulic structure is precisely engineered to deliver:

● Even water distribution from the center bottom outward

● Minimal pressure drop

● Uniform cartridge utilization

● Stable and efficient filtration performance

The top cover is equipped with an air vent valve to allow easy exhaust of trapped air during initial startup.

4. Integrated Leak-Proof Cartridge Support System

The bottom water distribution structure and the upper cartridge clamping assembly are designed as integrated components. This ensures:

● Secure and precise cartridge compression

● Excellent sealing performance

● Simplified and error-free cartridge installation

● Effective prevention of internal bypass leakage

5. Flexible Cartridge Compatibility

Inside the housing, users can install a variety of industrial filter cartridges:

● Inner diameter: 28–30 mm

● Outer diameter: 60–70 mm

● Flat-end cartridges

● Standard 222 O-ring cartridges

● Multiple micron ratings and materials (PP, PES, PTFE, etc.)

Both 8-core and 9-core configurations are available to accommodate different filtration demands.

6. Excellent Chemical and Corrosion Resistance

UPVC construction ensures superior resistance to:

● Acidic and alkaline liquids

● High-salinity seawater

● Corrosive chemical solutions

This makes the AAL8C/AAL9C housing a cost-effective alternative to stainless steel systems in severe environments.

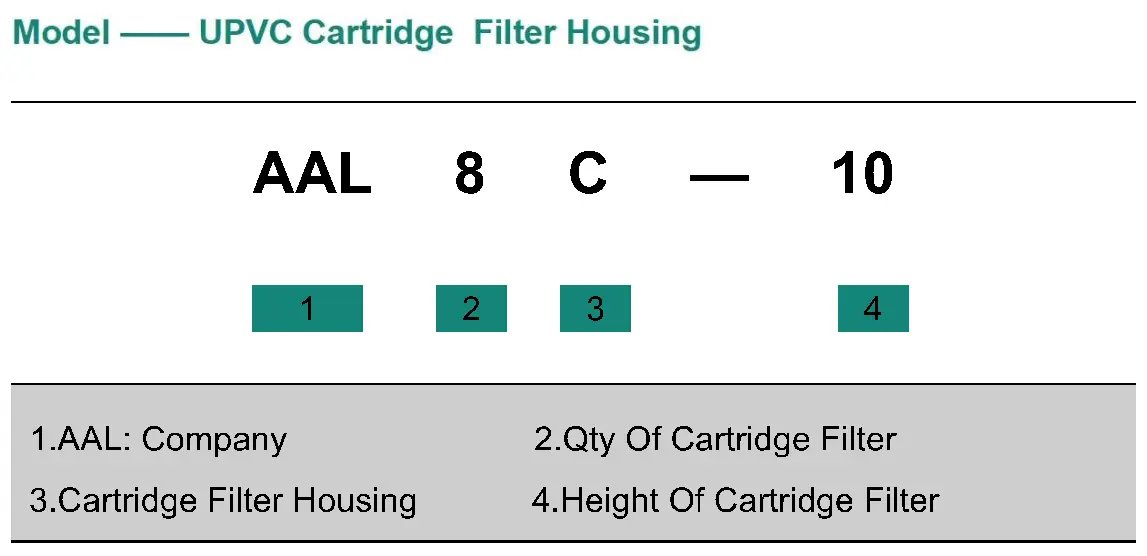

Model Specifications

Different Bolts and Pressure Gauge are available

Specifications

AAL8C UPVC Cartridge Filter Housing – 8-Cartridge Specifications

The AAL8C UPVC Cartridge Filter Housing is engineered to accommodate eight filter cartridges, delivering a balanced combination of high flow capacity and stable filtration performance. With compatibility for 20'', 30'', and 40'' cartridge lengths, it is suitable for medium to large water treatment systems that require efficient pre-filtration and extended service life. Its UPVC construction ensures excellent corrosion resistance, making it ideal for pure water production, seawater desalination, brackish water treatment, and chemical liquid filtration applications.

Reference Flow (m³/h) is calculated based on the data of 40'' Cartridge Filter (5μm): 1.5–2 m³/h

AAL9C UPVC Cartridge Filter Housing – 9-Cartridge Specifications

The AAL9C UPVC Cartridge Filter Housing is designed to hold nine filter cartridges, offering even greater filtration capacity, higher flowrates, and longer filtration cycles compared with lower-core models. It supports 20'', 30'', and 40'' standard filter cartridges and provides robust performance for large industrial water treatment systems, high-salinity environments, and demanding chemical processing applications. Its durable UPVC structure delivers outstanding corrosion resistance, making it a cost-effective solution for high-volume and continuous operation scenarios.

Reference Flow (m³/h) is calculated based on the data of 40'' Cartridge Filter (5μm): 1.5–2 m³/h

Note:Inside the housing, various filter cartridges with an inner diameter of 28–30 mm and an outer diameter of 60–70 mm can be installed, available in different materials and micron ratings. The design accommodates flat-end cartridges or standard 222 O-ring cartridges, in 8-cartridge or 9-cartridge configurations.

The maximum operating temperature is 45°C.

The top cover is equipped with threaded ports (size G1/4") for installing an air vent valve and a pressure gauge.

When using a metric pressure gauge, an adapter is required.

If a PP diaphragm pressure gauge is needed, please specify this when placing the order.

Applications

The AAL8C & AAL9C UPVC Cartridge Filter Housing is suitable for a wide range of water treatment and industrial processes, including:

Pure water production and pretreatment lines

● Seawater desalination and brackish water treatment

● Acid and alkaline liquid filtration

● Chemical processing and corrosive fluid treatment

● Electronics and semiconductor manufacturing

● Food & beverage processing

● Pharmaceutical RO and ultrapure water systems

● Household and commercial purification equipment

Its corrosion-resistant design makes it especially advantageous in marine, chemical, and high-salinity industrial environments.

Your Trusted Choice for High-Capacity UPVC Cartridge Filtration – Precision, Reliability, and Corrosion Resistance

Ensure consistent, efficient, and high-precision filtration for your medium-to-large flow systems with the AAL8C & AAL9C UPVC Cartridge Filter Housing. Designed for durability, chemical resistance, and uniform filtration performance, it is an ideal choice for pure water, desalination, and industrial liquid treatment applications.

Whether you are scaling up your filtration system or designing a new treatment line, our 8-core and 9-core UPVC filter housings provide the flexibility and performance you need.

Contact us for product manuals, quotations, or replacement assistance — we’re here to support your filtration needs.
