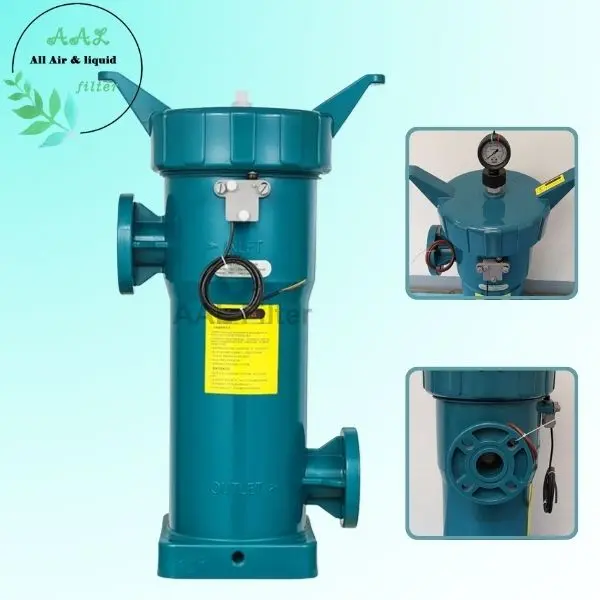

AALBF-1A PPH Filter Housing High-Performance Filter for Chemical and Industrial Filtration

Product Overview

The AALBF-1A PPH Filter Housing, developed and manufactured by AAL Filter, is a high-performance liquid filtration system designed for precision, durability, and chemical resistance.Made from premium imported Polypropylene Homopolymer (PPH) using one-piece injection molding, it offers a seamless, weld-free construction that ensures superior strength and zero leakage risk, even under demanding industrial conditions.

This model supports both bag and cartridge filtration, providing exceptional flexibility for various process applications. Fully compatible with international filter bag brands such as EATON, FSI, and PALL, the AALBF-1A delivers efficient and cost-effective solid–liquid separation for a wide range of industries.

Engineered with a lightweight UV-resistant body, easy screw-cap access, and optimized internal flow design, the AALBF-1A minimizes energy consumption and simplifies maintenance. With an operating pressure of up to 8 bar (116 psi) and temperature resistance up to 90°C (194°F), it performs reliably across sectors including municipal wastewater, chemical processing, electronics, electroplating, pharmaceuticals, and desalination.

Backed by AAL Filter’s expertise in advanced filtration technologies, the AALBF-1A PPH Filter Housing stands as a trusted solution for handling corrosive liquids and achieving high-efficiency industrial filtration.

Key Features

1.Versatile Filtration Design

Compatible with both filter bags and cartridges for flexible industrial applications.

The AALBF-1A filter housing is designed to accommodate a standard #1 filter bag (Φ180×450mm) and can also hold six cartridges (Ø62mm×10") or five cartridges (Ø68mm×10"). This versatile configuration enables users to switch between bag or cartridge filtration according to process conditions, ensuring optimal flexibility and performance.

2.Global Standard Compatibility

Fully compatible with filter bags from global and domestic brands.

Designed and manufactured to international standards, the AALBF-1A PPH Filter Housing fits world-renowned filter bag brands such as EATON, FSI, and PALL, as well as local standard bags, ensuring easy sourcing and replacement worldwide.

3.One-Piece Molded Construction

Seamless, high-strength structure eliminates leakage risks.

The one-piece molded body ensures a robust, leak-free design with no welded joints, providing superior strength and long-term sealing reliability for consistent performance.

4.Premium PPH Material

Made from imported PPH for superior chemical resistance and strength.

Constructed with imported Polypropylene Homopolymer (PPH) via one-piece injection molding, this housing is lightweight, durable, and highly resistant to acids and most chemicals. Optional materials such as PVDF, ETFE, and PFA are available upon request.

5.UV-Resistant and Weatherproof

UV-resistant additives prevent aging under sunlight, making the AALBF-1A durable and suitable for both indoor and outdoor applications in various environments.

6.Easy Screw-Cap Operation

Tool-free screw-top design for quick filter replacement.

The screw-type top cover allows for fast, tool-free opening and closing, simplifying maintenance and minimizing system downtime.

7.Polished Inner Surface

Smooth polished interior prevents buildup and eases cleaning.

A finely polished inner surface prevents crystallization and residue buildup, ensuring easy manual cleaning and maintaining stable filtration performance over time.

8.Optimized Flow Dynamics

Optimized basket spacing for smooth flow and reduced energy use.

The spacing between the basket, inner wall, and bottom is designed to maintain smooth liquid flow, reduce turbulence, and lower pump energy consumption, extending system lifespan.

9.Precision Sealing Basket Design

Handle-equipped basket with leak-free radial sealing.

Featuring a convenient handle for easy removal and installation, the basket uses a radial sealing structure that completely prevents internal bypass, ensuring ultra-high precision filtration.

10.High Pressure and Temperature Resistance

Performs reliably under high pressure and temperature.

The AALBF-1A operates safely at up to 116 psi (8 bar) and 194°F (90°C), providing consistent reliability for demanding filtration applications.

11.Robust Flanged Connections

Durable, internationally compatible flanged connections.

The reinforced flanged inlet and outlet connections ensure structural strength and compatibility with international piping standards, providing safe installation and leak-free operation.

12.Wide Micron Range

Covers a wide filtration range from 0.1–800 microns.

Supporting filtration precision from 0.1 to 800 microns, the AALBF-1A accommodates both fine and coarse filtration needs across various industries.

13.Extensive Industrial Applications

Suitable for diverse industrial filtration and recovery processes.

The AALBF-1A PPH Filter Housing is widely used in municipal wastewater treatment, copper and gold recovery, chemical processing, petroleum, biotechnology, pharmaceuticals, electronics, electroplating, industrial wastewater, desalination, dyeing, and papermaking—offering exceptional corrosion resistance and durability.

Model Specifications

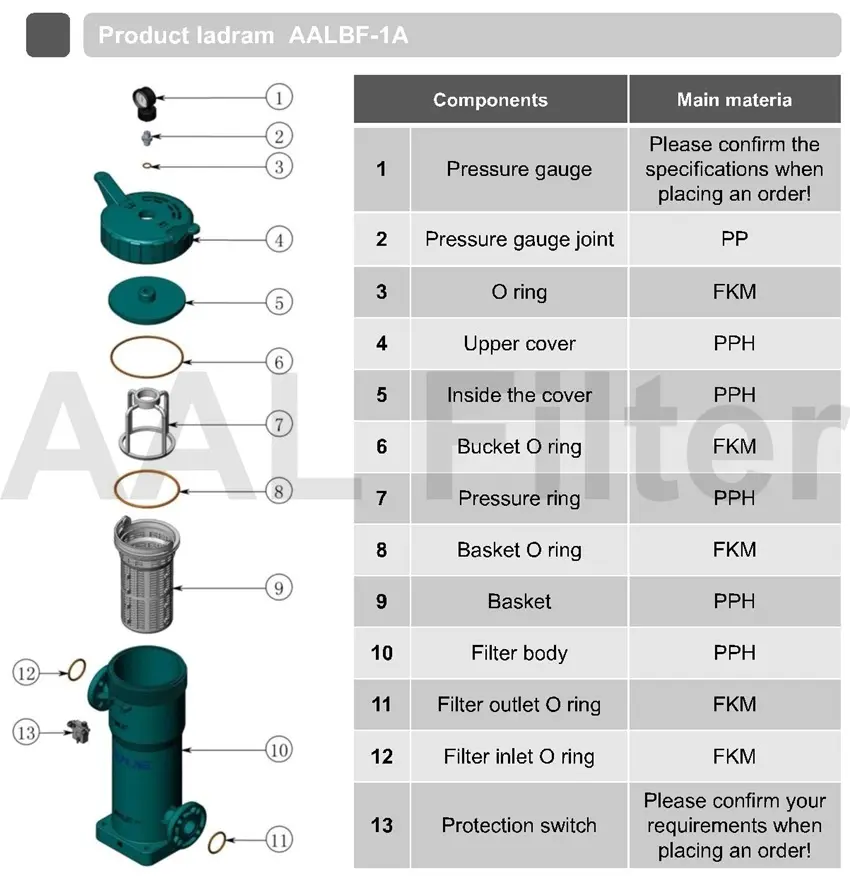

AALBF-1A Product Diagram

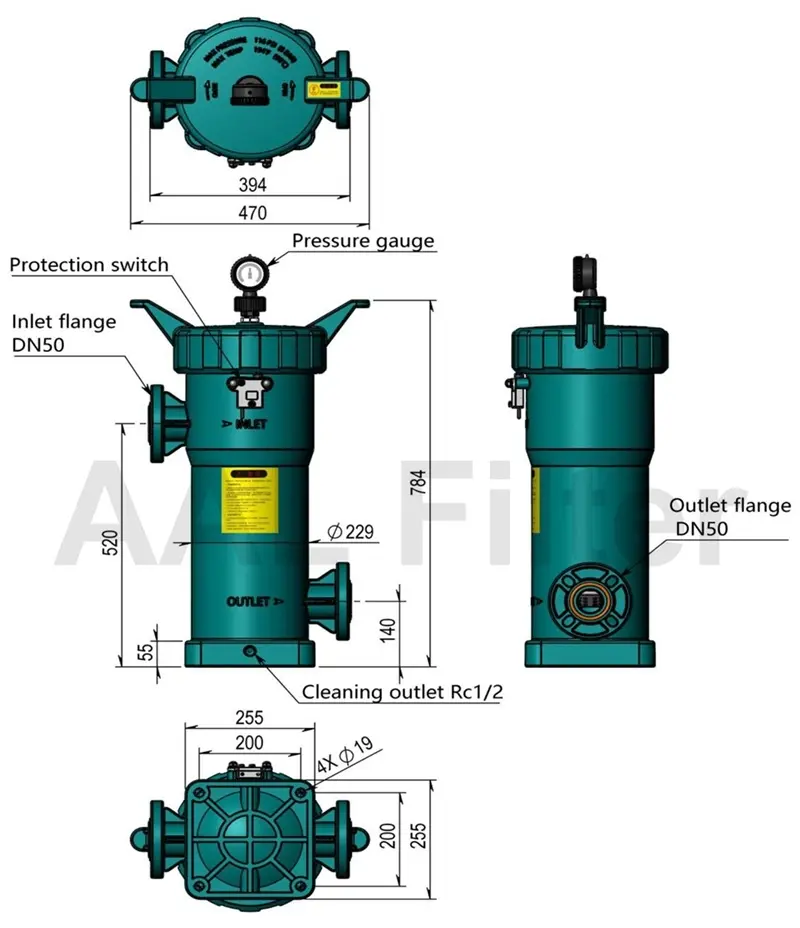

AALBF-1A Installation Dimensions

Specifications

Applications

The AALBF-1A PPH Filter Housing is widely applied across industries that demand high chemical resistance and reliable liquid filtration performance, including:

● Chemical processing and acid-alkaline solution filtration
● Electroplating and surface treatment systems
● Electronics and semiconductor manufacturing
● Wastewater and recycling treatment plants
● Food and beverage processing lines
● Pharmaceutical, laboratory, and ultrapure water systems

With its PPH (Polypropylene Homopolymer) construction, the AALBF-1A delivers exceptional corrosion resistance and durability, making it ideal for handling aggressive liquids and high-purity filtration applications where metal housings are unsuitable.

Your Reliable Partner for Chemical-Resistant Filtration – Efficient and Durable PPH Design

Experience stable, precise, and long-lasting filtration performance with the AALBF-1A PPH Filter Housing, engineered to handle aggressive chemical liquids and high-purity applications. Its corrosion-resistant structure ensures dependable operation in chemical processing, electroplating, and ultrapure water systems.

Whether you’re optimizing an existing filtration line or developing a new process, AAL Filter provides the expertise and support you need.

Contact us for product manuals, quotations, or replacement assistance — we’re here to support your needs.
