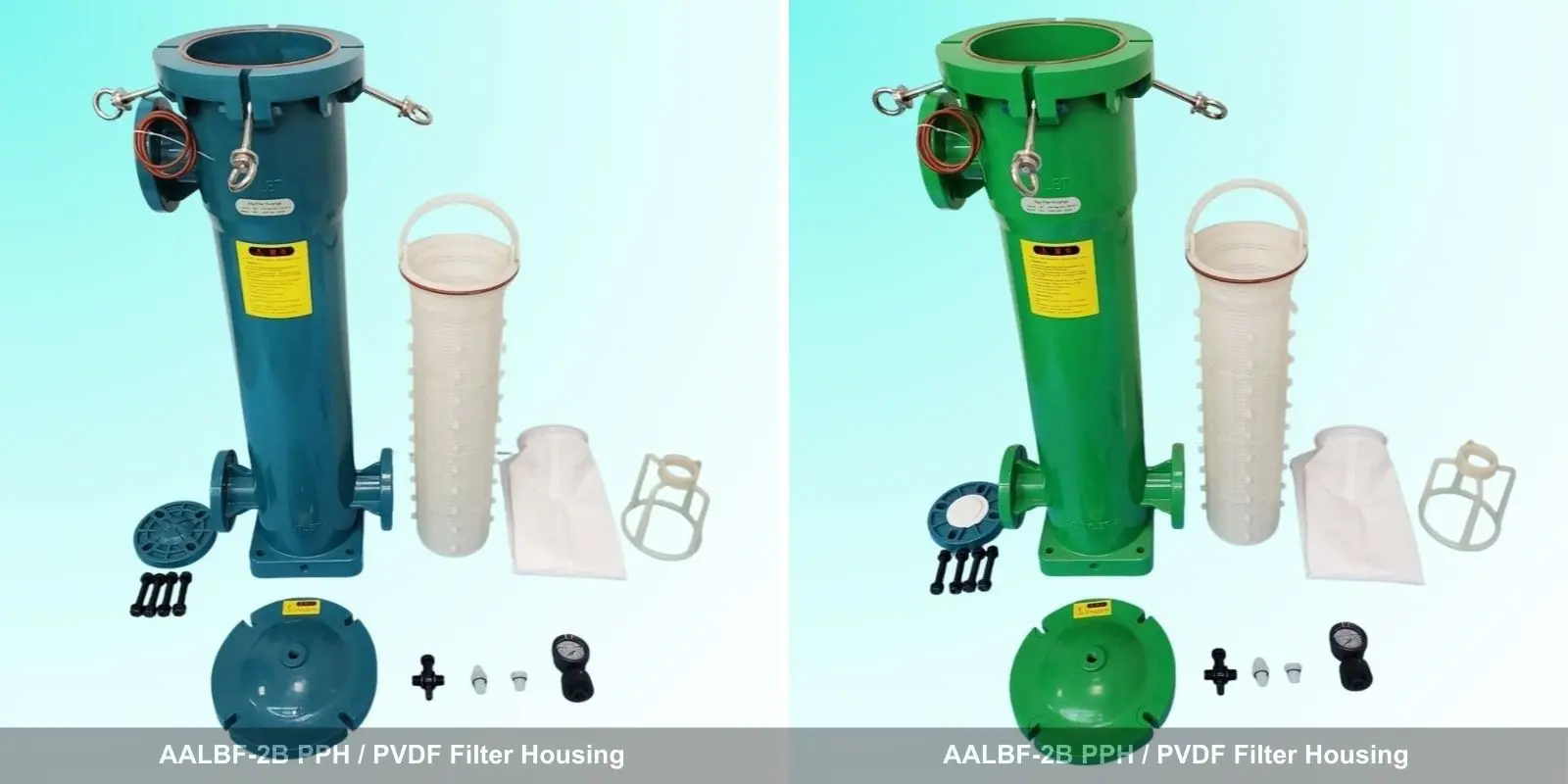

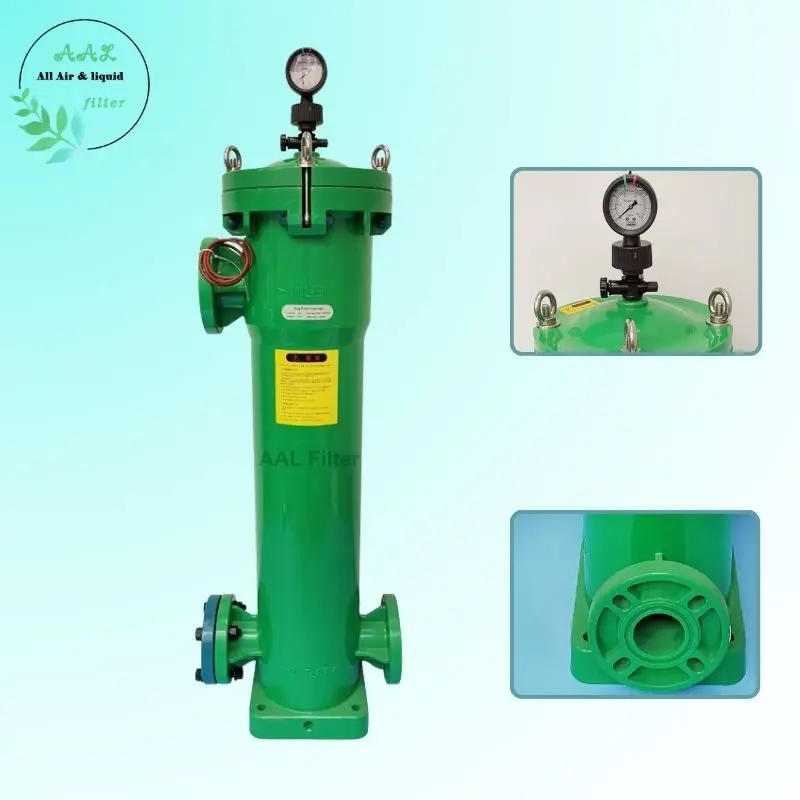

AALBF-2B PPH / PVDF Filter Housing for Chemical, Electroplating, Pharmaceutical & Water Treatment

The AALBF-2B PPH Filter Housing, engineered and manufactured by AAL Filter, is a high-capacity liquid filtration system designed for high-flow applications, extended operating cycles, and aggressive chemical environments. Made from imported Polypropylene Homopolymer (PPH) using a one-piece injection molding process, the housing features a seamless, weld-free structure that completely eliminates leakage risks.

Designed to accommodate Size #2 filter bags as well as multiple 30″ and 40″ filter cartridge configurations, the AALBF-2B offers exceptional flexibility for industrial processes ranging from coarse pre-filtration to high-precision polishing filtration. Its international-standard design ensures full compatibility with globally recognized filter bag brands such as EATON, FSI, and PALL, enabling easy sourcing and global replacement.

With excellent chemical resistance, optimized internal flow paths, and a user-friendly swing bolt closure, the AALBF-2B PPH Filter Housing is widely used in chemical processing, biotechnology, electronics, electroplating, industrial wastewater treatment, and seawater desalination—providing a reliable non-metal alternative for corrosive liquid filtration.

Key Features

1. High-Capacity Long Bag & Multi-Cartridge Design

● Designed for standard Size #2 filter bags (φ180 × 810 mm), the housing also supports:

● Six 30″ filter cartridges (OD 62 mm)

● Five 30″ filter cartridges (OD 68 mm)

● One 30″ high-flow filter cartridge

● Extended version(AALCF-2BH) for six 40″ cartridges (OD 62 mm), five 40″ cartridges (OD 68 mm), or one 40″ high-flow cartridge

This versatile configuration allows seamless switching between bag and cartridge filtration.

2. Global Standard Compatibility

Manufactured to international standards, fully compatible with filter bags from EATON, FSI, PALL, and other global or domestic brands.

3. One-Piece Molded Construction

The seamless, weld-free housing ensures exceptional mechanical strength and completely eliminates leakage risks.

4. Premium Imported PPH Material

Lightweight yet highly resistant to acids, alkalis, and most chemicals. Optional materials such as PVDF, ETFE, or PFA are available upon request.

5. UV-Resistant and Weatherproof Design

UV-resistant additives provide long-term durability, making the housing suitable for indoor and outdoor installations under various climates.

6. Swing Bolt Cover for Easy Operation

The swing bolt closure enables quick opening and secure tightening, even in confined spaces, simplifying filter bag and cartridge replacement.

7. Polished Inner Surface

A smooth interior surface prevents crystallization and residue buildup, facilitating easy manual cleaning and stable long-term performance.

8. Optimized Flow Dynamics

Enlarged spacing between the basket, inner wall, and bottom improves liquid flow, reduces pressure drop, and lowers pump energy consumption.

9. Precision Radial Sealing Basket

The handle-equipped basket allows quick removal and installation, while radial sealing prevents internal bypass for high-precision filtration.

10. High Pressure and Temperature Resistance

Rated for operating pressures up to 116 psi (8 bar) and temperatures up to 194°F (90°C).

11. Robust Flanged Connections

Durable flanged inlet and outlet connections ensure compatibility with international piping standards and secure installation.

12. Wide Micron Range

Supports filtration ratings from 0.1 to 800 microns, covering both coarse and fine filtration requirements.

13. Proven Industrial Applications

Widely applied in municipal wastewater treatment, copper and precious metal recovery, chemical and petrochemical processing, biotechnology, pharmaceuticals, electronics, electroplating, industrial wastewater, seawater desalination, textile dyeing, and paper manufacturing.

Model Specifications

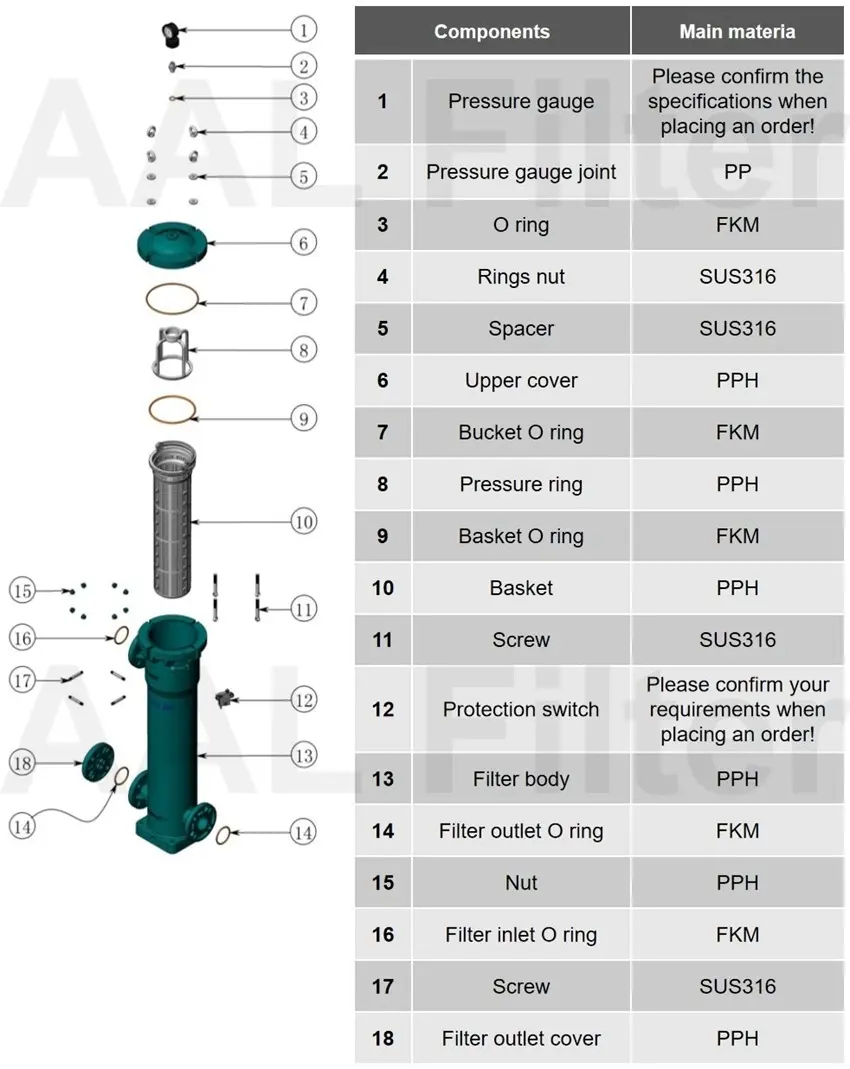

AALBF-2B Product Diagram

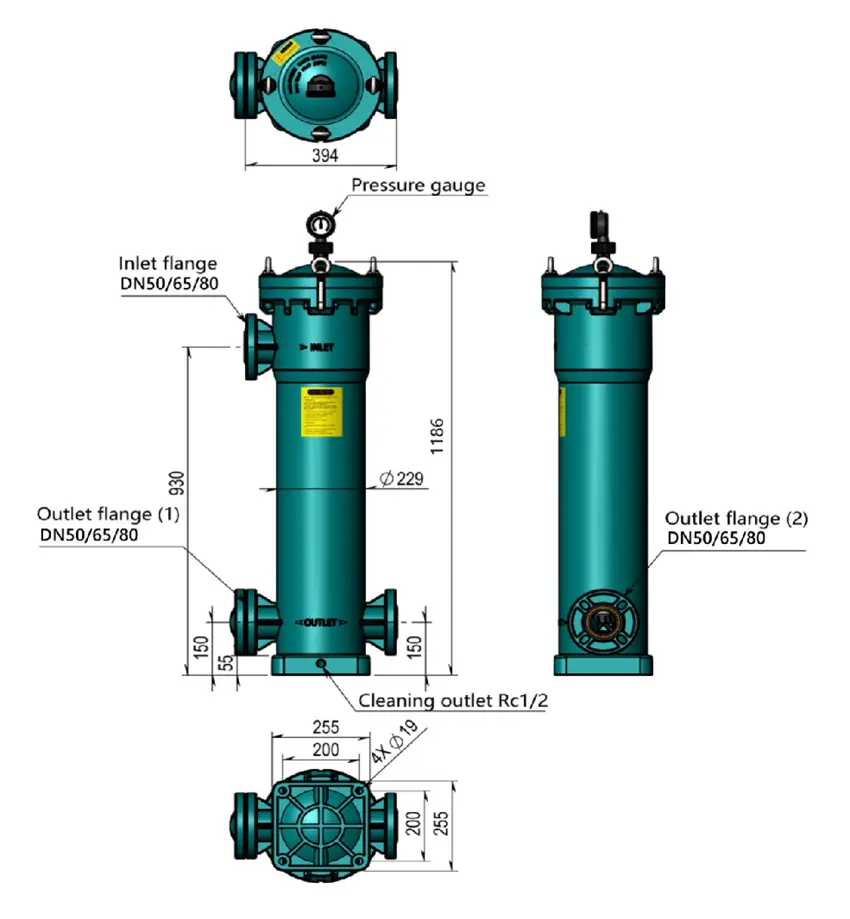

AALBF-2B Installation Dimensions

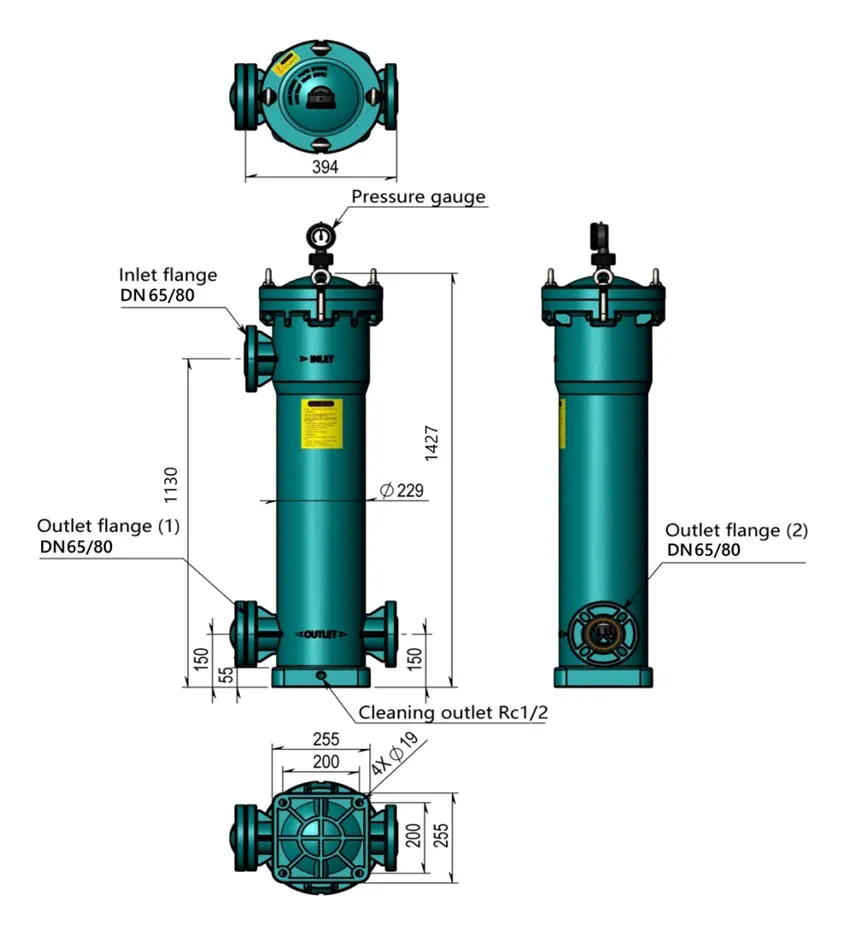

AALCF-2BH Installation Dimensions

AALBF-2B Specifications

AALCF-2BH Specifications

Applications

The AALBF-2B PPH / PVDF Filter Housing is engineered for demanding liquid filtration processes where high chemical resistance, stable performance, and flexible configuration are required. Typical applications include, but are not limited to:

● Chemical & Petrochemical Processing

Filtration of acids, alkalis, solvents, catalysts, intermediates, and corrosive chemical solutions in batch and continuous processes.

● Electroplating & Surface Treatment

Removal of particulate contaminants from plating baths, rinsing water, recovery systems, and chemical dosing lines to ensure surface quality and bath stability.

● Pharmaceutical, Biotechnology & Medical Industries

Process water filtration, intermediate liquid clarification, buffer solutions, CIP systems, and pre-filtration for high-purity and GMP-related processes.

● Water Treatment & Environmental Engineering

Municipal wastewater treatment, industrial wastewater filtration, water reuse systems, zero liquid discharge (ZLD), and seawater desalination pretreatment.

● Electronics & Semiconductor Manufacturing

Filtration of chemicals, ultrapure water (UPW), cleaning solutions, and process liquids to protect sensitive components and ensure product yield.

● Food & Beverage Processing

Filtration of process water, cleaning solutions, additives, syrups, and liquid ingredients where corrosion resistance and hygiene are critical.

● Energy, Power & New Energy Industries

Filtration of cooling water, process liquids, chemical additives, and auxiliary fluids in power generation, offshore wind, and energy storage applications.

● Automotive, Aerospace & Precision Manufacturing

Liquid filtration for surface treatment lines, washing systems, cutting fluids, and chemical processing units.

● Textile Dyeing, Papermaking & Fine Chemicals

Removal of fibers, pigments, and solid impurities from dyes, coatings, and chemical formulations to improve product consistency and system reliability.

Why Choose AALBF-2B PPH / PVDF Filter Housing?

When compared with conventional stainless steel or metal filter vessels, the AALBF-2B PPH / PVDF Filter Housing offers distinct advantages in corrosive, high-purity, and cost-sensitive industrial applications:

Superior Chemical Resistance

Unlike metal housings that may suffer from corrosion, pitting, or chemical attack, PPH and PVDF materials provide outstanding resistance to acids, alkalis, salts, and most aggressive chemicals—ensuring long service life in harsh environments.

No Corrosion, No Contamination Risk

Metal filter housings can introduce metal ions or corrosion by-products into process liquids. The AALBF-2B’s non-metallic construction eliminates contamination risks, making it ideal for pharmaceutical, biotechnology, electronics, and ultrapure water applications.

Leak-Free One-Piece Molded Design

Traditional metal vessels rely on welded joints that may weaken over time. The AALBF-2B features a one-piece injection-molded body with no welds, ensuring excellent structural integrity and long-term leak-free operation.

Lightweight and Easy Handling

PPH / PVDF filter housings are significantly lighter than stainless steel vessels, reducing installation effort, simplifying maintenance, and lowering overall system load—especially beneficial for large-size or high-capacity filtration systems.

Lower Total Cost of Ownership

Compared to metal filter housings, the AALBF-2B requires less corrosion protection, fewer maintenance interventions, and no costly surface treatments, resulting in reduced operating and lifecycle costs.

Optimized for High-Flow Industrial Filtration

Designed for long filter bags, multiple cartridges, and high-flow cartridges, the AALBF-2B delivers high throughput with low pressure drop—matching or exceeding the performance of metal vessels in many industrial processes.

Flexible Material Options for Different Media

While PPH is suitable for most chemical and water treatment applications, optional PVDF, ETFE, or PFA materials are available for higher temperature or more aggressive chemical environments, offering flexibility beyond standard metal solutions.

A Smart Alternative to Metal Filter Vessels

For applications involving corrosive liquids, high chemical purity, frequent maintenance, or outdoor installation, the AALBF-2B PPH / PVDF Filter Housing is a proven, reliable, and economical alternative to stainless steel filter vessels.

Reliable Chemical-Resistant Filtration for High-Flow Applications

Engineered for durability, efficiency, and operational flexibility, the AALBF-2B PPH Filter Housing delivers stable and long-lasting filtration performance in the most demanding industrial environments.

Whether you are upgrading an existing filtration system or developing a new process line, AAL Filter is your trusted partner.

Contact us today for technical datasheets, quotations, or filtration solutions tailored to your application.
