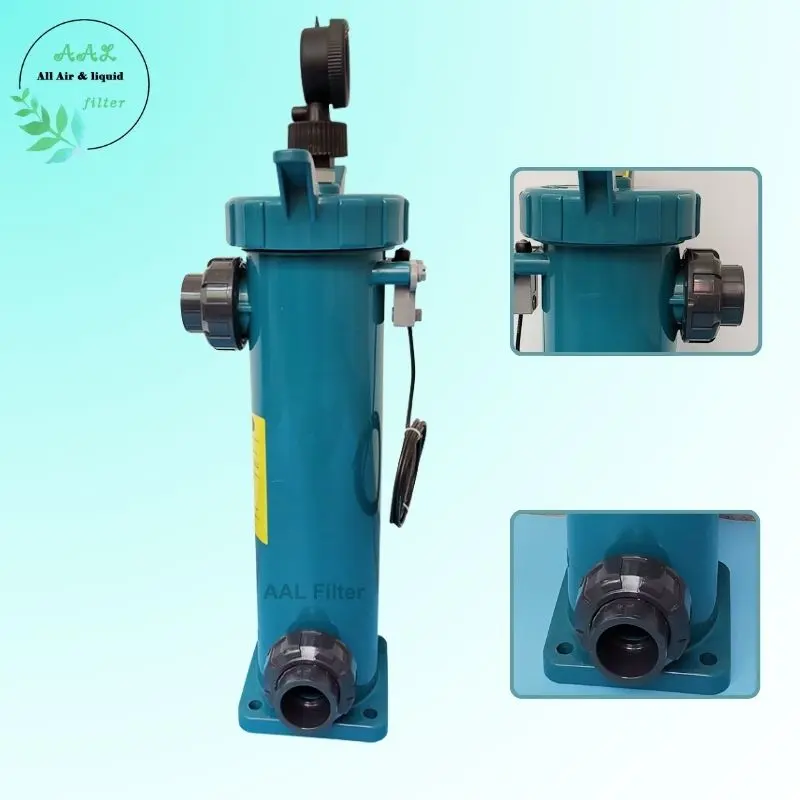

AALBF-4AX Compact Screw-Cap PPH Bag Filter Housing with Union-Type Connections industrial filtration

The AALBF-4AX PPH Filter Housing, is a compact and highly chemical-resistant liquid filtration solution designed for precision industrial and process filtration. Featuring a screw-cap (threaded) top cover and union-type inlet and outlet connections, this model ensures fast maintenance, flexible installation, and reliable sealing performance in demanding operating environments.

Manufactured from imported Polypropylene Homopolymer (PPH) using one-piece injection molding, the AALBF-4AX offers a seamless, weld-free structure that completely eliminates leakage risks commonly associated with welded housings. Its lightweight yet robust construction provides excellent resistance to acids, alkalis, and most aggressive chemicals.

The AALBF-4AX is primarily designed as a bag-type filter housing compatible with standard Size #4 filter bags (φ105 × 380 mm). When required, it can also be modified into a single-cartridge configuration accommodating one 10″ filter cartridge, offering additional process flexibility.

Fully compliant with international manufacturing standards, the AALBF-4AX is compatible with filter bags from globally recognized brands such as EATON, FSI, and PALL, as well as domestic standard filter bags—ensuring easy sourcing and worldwide replacement availability.

With a polished inner surface, optimized internal flow design, and radial sealing basket structure, the AALBF-4AX delivers stable, high-efficiency solid–liquid separation while reducing pump energy consumption and simplifying cleaning and maintenance. The housing is rated for operating pressures up to 6 bar (87 psi) and temperatures up to 90°C (194°F), making it suitable for a wide range of chemical and industrial filtration applications.

Key Features

1. Compact Bag Filter Design with Cartridge Option

Designed for Size #4 filter bags (φ105 × 380 mm), the AALBF-4AX can also be converted into a cartridge-type housing holding one 10″ filter cartridge, enabling users to adapt filtration methods according to process requirements.

2. International Brand Compatibility

Manufactured to international standards and compatible with filter bags from EATON, FSI, PALL, and other global or local brands, ensuring easy replacement and global usability.

3. One-Piece Molded PPH Housing

The seamless, one-piece injection-molded body eliminates welding points, providing superior mechanical strength, long-term sealing reliability, and zero leakage risk.

4. Premium Imported PPH Material

Constructed from imported Polypropylene Homopolymer (PPH), the housing is lightweight, corrosion-resistant, and suitable for most chemical media. Optional materials such as PVDF, ETFE, and PFA are available upon request.

5. UV-Resistant and Weatherproof Design

UV-resistant additives prevent material aging, making the AALBF-4AX suitable for both indoor and outdoor installations across various climates.

6. Screw-Cap (Threaded) Top Cover

The rotating screw-cap design allows tool-free opening and closing, significantly reducing maintenance time and simplifying routine filter bag replacement.

7. Polished Inner Wall

A smooth, polished internal surface prevents chemical crystallization and residue buildup, enabling easy manual cleaning and maintaining stable filtration performance.

8. Optimized Internal Flow Structure

Increased spacing between the basket, housing wall, and bottom improves liquid flow paths, reduces turbulence, and lowers pump energy consumption.

9. Precision Basket with Radial Sealing

The basket features a handle-assisted design for easy removal and installation. Radial sealing between the basket and housing wall completely prevents internal bypass, meeting high-precision filtration requirements.

10. Pressure and Temperature Resistance

Designed for operation at up to 87 psi (6 bar) and 194°F (90°C), ensuring stable performance in demanding industrial environments.

11. Union-Type Inlet and Outlet Connections

The union-type (removable) inlet and outlet connections provide flexible installation, easy alignment, and compatibility with various pipe sizes and materials.

12. Wide Filtration Range

Supports filtration ratings from 0.1 μm to 800 μm, suitable for both fine and coarse filtration processes.

13. Broad Industrial Applications

Widely applied in municipal wastewater treatment, copper powder and gold recovery, chemical processing, petroleum, bioengineering, pharmaceuticals, electronics, electroplating, industrial wastewater, seawater desalination, dyeing, and paper manufacturing.

Model Specifications

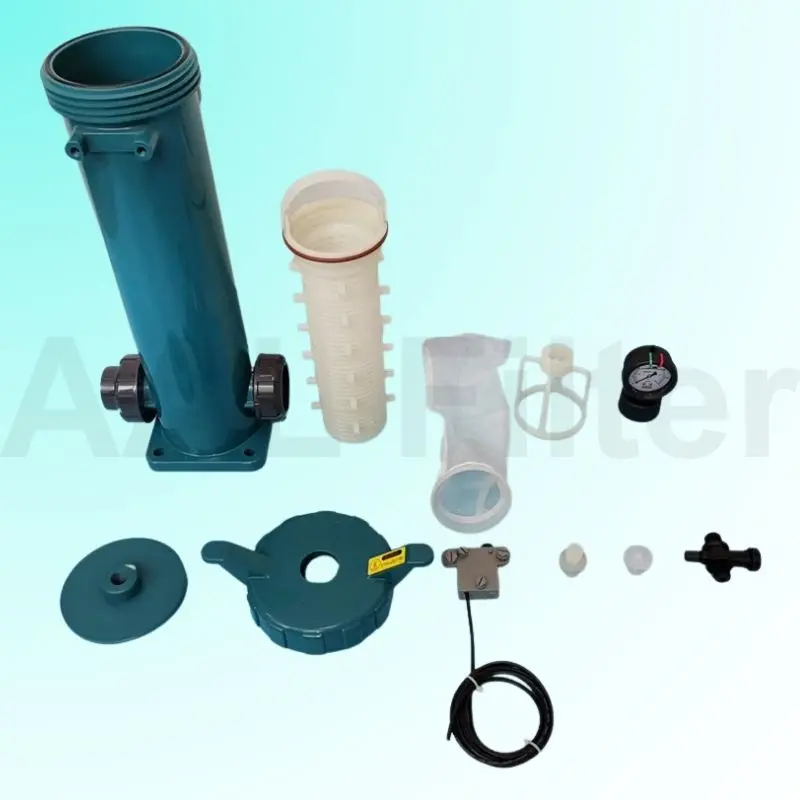

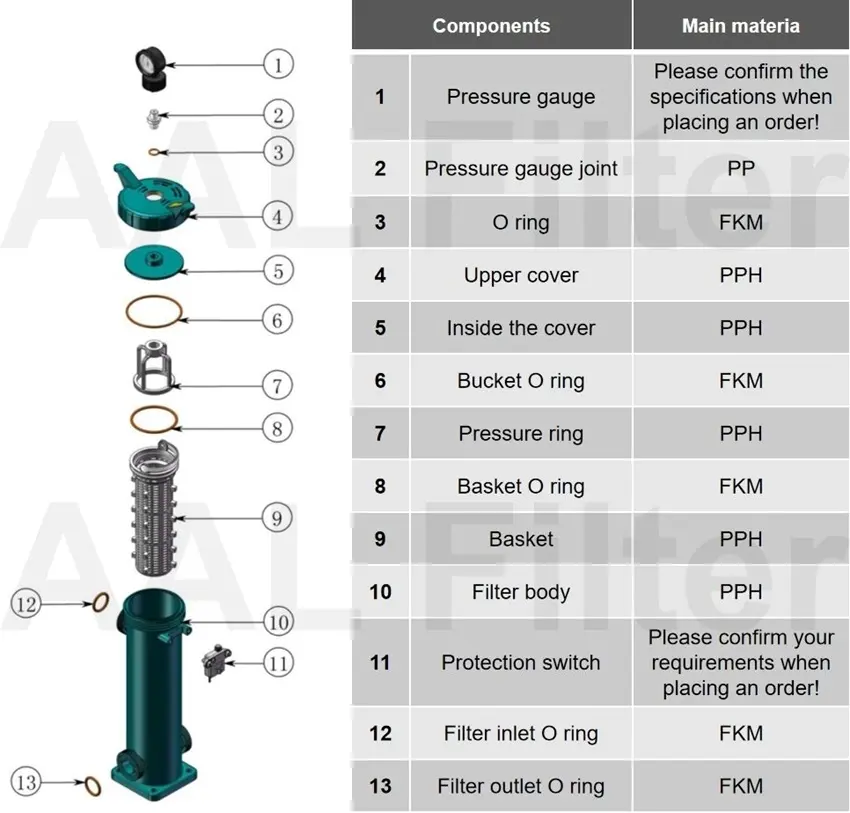

AALBF-4AX Product Diagram

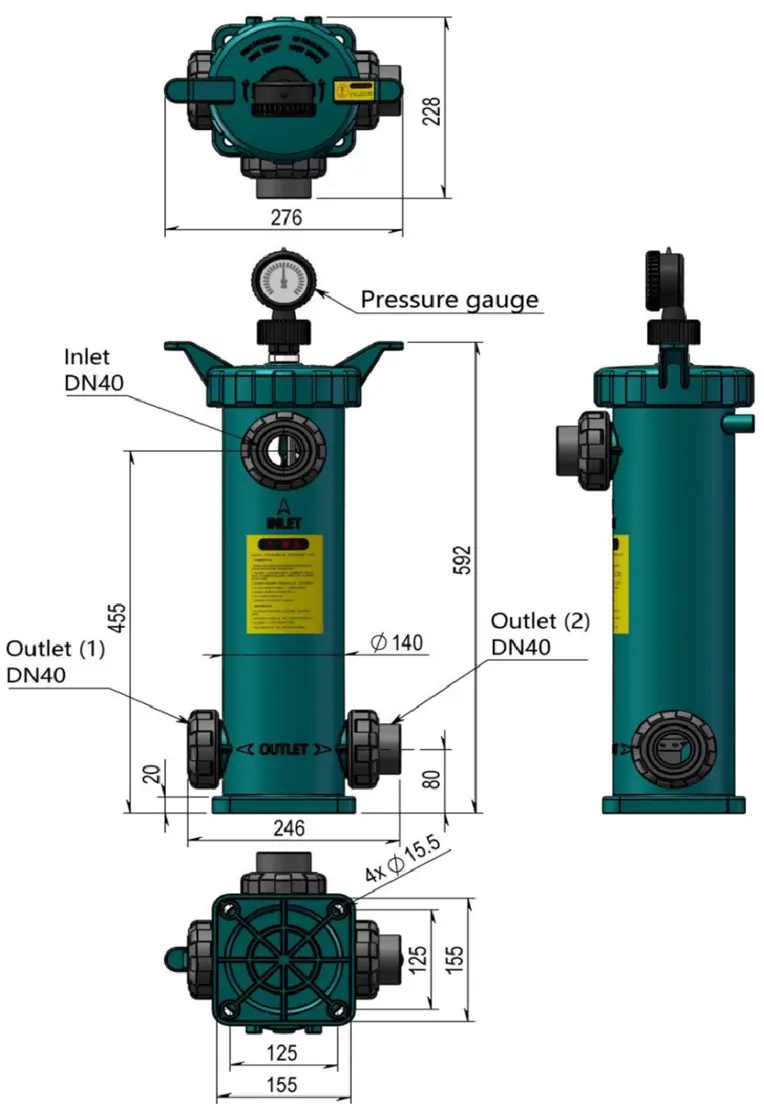

AALBF-4AX Installation Dimensions

Specifications

Applications

The AALBF-4AX PPH Filter Housing is ideal for industries requiring high chemical resistance, compact system design, and reliable liquid filtration performance, including:

● Biotechnology and pharmaceutical processing

● Medical and laboratory filtration systems

● Food and beverage production

● Microelectronics and optoelectronics

● Aerospace and aviation support systems

● Fuel, petrochemical, and fine chemical industries

● Environmental protection and water treatment

● Electroplating and surface treatment

● Automotive, dyeing, printing, and papermaking

● Water reuse, industrial wastewater treatment, and seawater desalination

● Marine engineering and offshore wind power applications

Operating Instructions

1.Clean all O-rings and sealing grooves before use and place the O-rings correctly without twisting.

2.Insert the filter bag into the support basket, ensuring the bag ring fits tightly against the housing or basket wall.

3.Place the bag hold-down ring vertically and press evenly to secure the filter bag.

4.Install the inner pressure plate and ensure it presses evenly on the sealing ring.

5.Tighten the housing cover clockwise until fully sealed.

6.Install the pressure gauge and fittings securely.

7.Close the drain valve, open inlet and outlet valves slowly, and start the pump.

Filter Bag Replacement Procedure

1.Stop the pump, close inlet and outlet valves, and open the drain valve to discharge all liquid inside the housing.

2.Confirm that internal pressure is fully released, then open the cover counterclockwise.

3.Remove the inner pressure plate and bag hold-down ring.

4.Take out the used filter bag and clean the housing interior and components.

5.Install a new filter bag following the operating instructions above.

6.Restart the system after confirming proper installation and sealing.

Important Notice:Never open the filter housing cover while the system is under pressure or in operation.

Compact, Chemical-Resistant Filtration You Can Trust

With its screw-cap PPH design, union-type connections, and high-precision sealing structure, the AALBF-4AX PPH Filter Housing delivers efficient, stable, and long-lasting filtration performance for corrosive and high-purity liquid applications.

Whether you are upgrading an existing filtration system or designing a new process line, AAL Filter provides professional support, detailed documentation, and reliable solutions tailored to your needs.
Contact us today for product manuals, technical consultation, or quotations.
