AALBF-5A Screw Cap Type PPH Polypropylene Homopolymer Bag Filter Housing for Industrial Filtration

The AALBF-5A PPH Bag Filter Housing is a high-performance liquid filtration solution designed for applications requiring excellent chemical resistance, secure sealing, and easy maintenance.

Manufactured from imported Polypropylene Homopolymer (PPH) using one-piece injection molding, the AALBF-5A features a seamless, weld-free structure that eliminates leakage risks and ensures long-term mechanical strength. Its screw-cap type design allows for fast, tool-free operation, making it ideal for frequent filter bag replacement and routine maintenance.

Designed as a bag-type filter housing, the AALBF-5A is compatible with standard Size #5 filter bags (φ150 × 510 mm) and can also be modified into a cartridge filter housing capable of holding three 20-inch filter cartridges, offering excellent flexibility for different filtration processes.

Fully compliant with international standards, the AALBF-5A is compatible with globally recognized filter bag brands such as EATON, FSI, and PALL, as well as domestic standard bags, ensuring easy sourcing and global applicability.

With a maximum operating pressure of 8 bar (116 psi) and temperature resistance up to 90°C (194°F), the AALBF-5A delivers stable and reliable filtration performance across demanding industrial environments, including chemical processing, pharmaceuticals, electronics, wastewater treatment, and desalination.

Key Features

1. Versatile Bag & Cartridge Filtration Design

Designed for Size #5 filter bags (φ150 × 510 mm) and optionally configurable to hold three 20″ filter cartridges, allowing users to adapt the system to changing process requirements.

2. Global Brand Compatibility

Manufactured according to international standards, compatible with filter bags from EATON, FSI, PALL, and other standard brands worldwide.

3. One-Piece Molded Construction

The seamless, one-piece molded housing eliminates welding joints, ensuring zero leakage risk and superior structural integrity.

4. Premium Imported PPH Material

Made from high-quality Polypropylene Homopolymer (PPH), offering excellent resistance to acids, alkalis, and most chemicals. Optional materials such as PVDF, ETFE, and PFA are available upon request.

5. UV-Resistant and Weatherproof

UV-resistant additives prevent material aging, making the housing suitable for indoor and outdoor installations in various climates.

6. Screw Cap Type, Tool-Free Operation

The screw-cap cover design allows quick opening and closing without tools, reducing maintenance time and operational downtime.

7. Polished Inner Surface

A smooth, polished internal surface prevents chemical crystallization and residue buildup, ensuring easy cleaning and consistent filtration efficiency.

8. Reliable Precision Sealing

The tight fit between the filter bag ring and housing inner wall ensures a secure seal, effectively preventing internal bypass and achieving true precision filtration.

9. High Pressure & Temperature Resistance

Safe operation up to 8 bar (116 psi) and 90°C (194°F) for demanding industrial filtration processes.

10. Robust Flanged Connections

Durable inlet and outlet flanges are compatible with international piping standards, ensuring secure installation and leak-free operation.

11. Wide Filtration Range

Supports filtration ratings from 0.1 μm to 800 μm, suitable for both fine and coarse filtration applications.

12. Broad Industrial Applications

Widely used in municipal wastewater treatment, copper powder recovery, gold recovery, chemical processing, petroleum, bioengineering, pharmaceuticals, electronics, electroplating, industrial wastewater treatment, seawater desalination, dyeing, and paper manufacturing industries.

Model Specifications

AALBF-5A Product Diagram

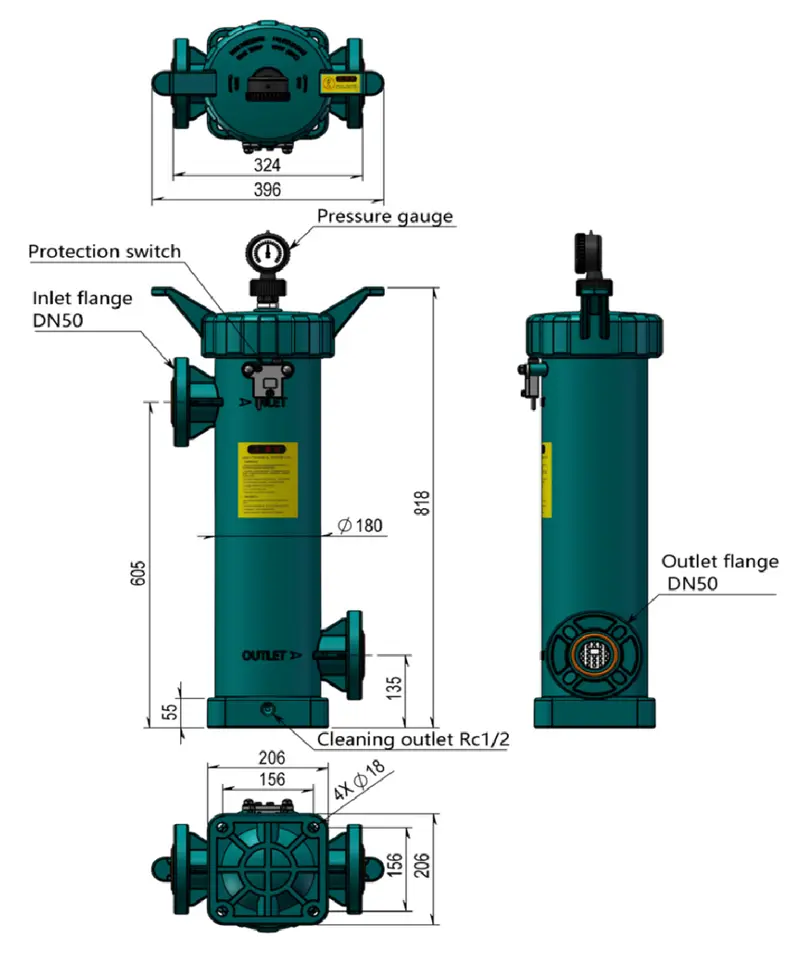

AALBF-5A Installation Dimensions

Specifications

Applications

The AALBF-5A PPH Bag Filter Housing is ideal for industries requiring high chemical resistance and reliable liquid filtration, including:

● Biotechnology and pharmaceutical processing

● Medical and laboratory filtration systems

● Food and beverage production

● Microelectronics and semiconductor manufacturing

● Aerospace and automotive industries

● Petrochemical and fuel processing

● Environmental protection and wastewater treatment

● Fine chemicals, electroplating, and surface treatment

● Seawater desalination and marine engineering

● Industrial water reuse and power generation systems

Reliable PPH Filtration Solution for Demanding Applications

Engineered for durability, efficiency, and chemical resistance, the AALBF-5A Screw Cap Type PPH Bag Filter Housing provides a dependable filtration solution for aggressive liquids and high-purity processes where metal housings are unsuitable.

Whether upgrading an existing filtration system or designing a new process line, AAL Filter offers professional technical support and customized solutions.

Contact us today for product manuals, quotations, or replacement filter options — we’re ready to support your filtration needs.
