AAL UPVC High Flow Filter Housing Skid Units Modular Design High Flow Capacity Compact Footprint

The AAL UPVC High Flow Cartridge Filter Housing Skid Package Units are integrated filtration systems engineered by AAL Filter for medium to large-scale water treatment and industrial liquid filtration applications.

Built around UPVC high flow cartridge filter housings, these skid-mounted units combine standardized piping, valves, instruments, and structural frames into a plug-and-play modular filtration solution.

With advantages such as high flow rate, small footprint, and excellent corrosion resistance, this system is widely used in brackish water and seawater desalination, pure water and bottled water production, wastewater reuse, and corrosive liquid filtration, offering a reliable alternative to metal filtration systems.

Key Features

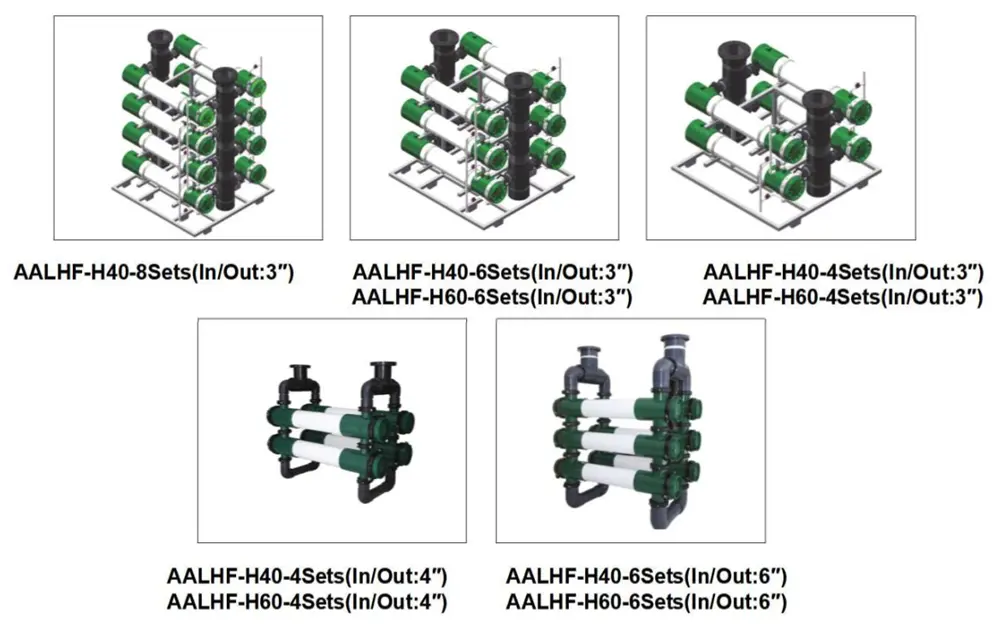

1. Standard Modular Design for Flexible Flow Configuration

The system adopts a standard modular design, allowing different flow capacities to be freely combined according to project requirements:

● Single or multiple housing configurations

● Easy scalability for future expansion

● Flexible adaptation to different filtration demands

This design is ideal for desalination pretreatment systems and phased water treatment projects.

2. High Flow Rate with a Compact Footprint

By utilizing high flow filter cartridges, the skid package units deliver significantly higher throughput compared to conventional multi-cartridge systems:

● Fewer housings required

● Reduced installation space

● Simplified system layout

This results in higher efficiency and lower operational complexity.

3. Full UPVC Construction with Superior Corrosion Resistance

All main wetted components are manufactured from high-quality UPVC, offering:

● Excellent resistance to acids, alkalis, and saline solutions

● Long-term durability in high-chloride environments

● Reduced corrosion risks compared to stainless steel

An ideal solution for brackish water, seawater, and corrosive liquid filtration.

4. Skid-Mounted Integration for Easy Installation

Each filtration skid is fully assembled and tested before delivery, including:

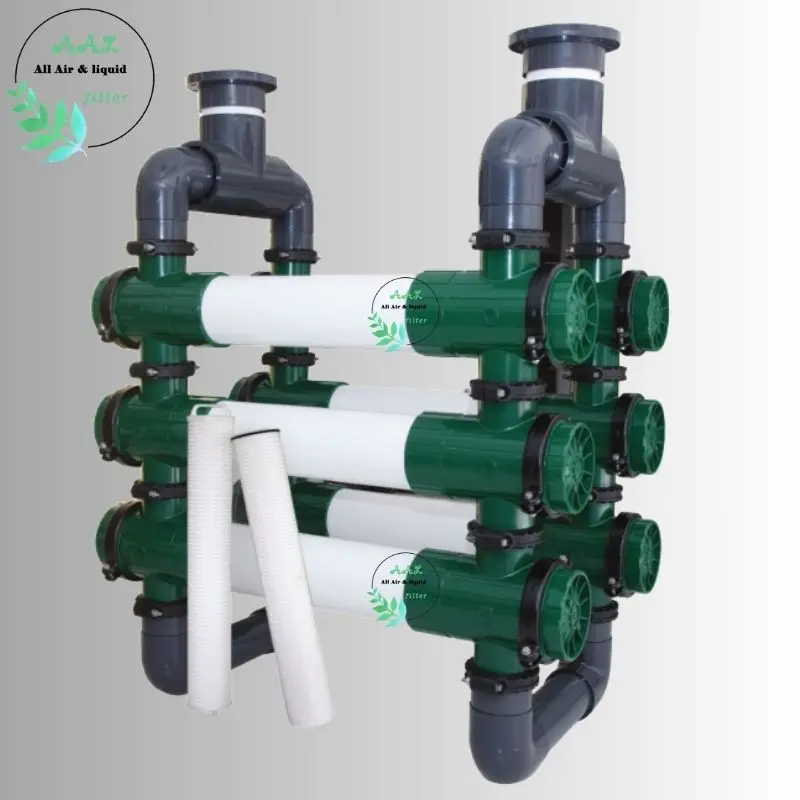

● UPVC high flow cartridge filter housings

● Inlet/outlet piping, valves, and drain connections

● Pressure gauges and air vent valves

● Carbon steel or stainless steel skid frame (optional)

On-site installation is fast and straightforward, minimizing commissioning time.

5. Stable Operation and Low Maintenance Cost

● Longer cartridge service life

● Low pressure drop and energy-efficient operation

● Simple maintenance and cartridge replacement

This ensures lower total cost of ownership over long-term operation.

Specifications

Typical Applications

The AAL UPVC High Flow Cartridge Filter Housing Skid Package Units are widely used in:

● Brackish water and seawater desalination pretreatment

● Bottled water, pure water, and ultrapure water production

● Wastewater and sewage reuse systems

● Cooling water filtration and reuse

● Corrosive liquid filtration

● Swimming pools and aquarium water treatment

● Agricultural and horticultural drip irrigation filtration

Your Reliable Partner for UPVC High Flow Filtration Systems

With modular flexibility, high flow capacity, compact design, and excellent corrosion resistance,
the AAL UPVC High Flow Cartridge Filter Housing Skid Package Units provide an efficient and dependable filtration solution for modern water treatment systems.

Contact us AAL Filter today for System configuration support,Technical datasheets,Quotations and project consultation.
