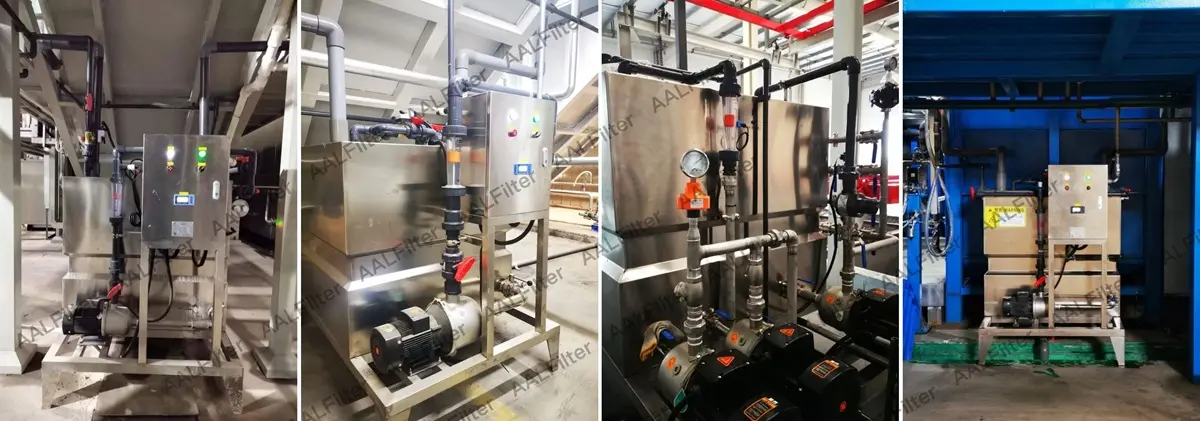

AAL E-Coat Anolyte Circulation System | Conductivity Control & Process Stability Solution

The AAL E-Coat Anolyte Circulation System is specifically engineered for cathodic electrocoating (E-Coat) production lines, serving as a critical subsystem for maintaining long-term bath stability and coating consistency.

This system integrates anolyte circulation, online conductivity monitoring, automatic pure water replenishment, overflow discharge control, and UV sterilization, enabling precise regulation of the electrocoat bath chemistry.

During cathodic electrocoating processes, acid radicals continuously migrate toward the anode chamber and gradually accumulate. If not properly controlled, this can lead to:

· Decreased bath pH stability

· Accelerated aging of ion exchange membranes

· Unstable current distribution

· Microbial contamination and sludge formation

The AAL system operates through a closed-loop circulation and automated control mechanism, effectively removing excess acid while maintaining stable electrochemical conditions.

More than a supporting unit, it functions as the chemical balance control core of the entire E-Coat bath system, ensuring consistent coating performance and process reliability.

Key Features

1. Precision Conductivity Control System

Real-time conductivity monitoring combined with automatic pure water replenishment enables controlled acid removal. This ensures stable bath pH and consistent coating quality across continuous production cycles.

2. Continuous Circulation & Efficient Heat Dissipation

The continuous anolyte circulation design prevents localized overheating, extends membrane service life, and significantly improves overall system stability and process reliability.

3. Active Electrolysis Gas Removal

The circulation flow continuously removes oxygen and gas bubbles generated during electrolysis, preventing bubble adhesion on electrodes and ensuring uniform current distribution and consistent film thickness.

4. Integrated UV Sterilization System

Built-in UV sterilization effectively suppresses acidophilic bacteria and microbial growth, preventing bio-sludge accumulation, reducing blockages, and minimizing maintenance frequency.

5. Stainless Steel Corrosion-Resistant Construction

The system is manufactured with high-grade stainless steel materials, offering excellent resistance to acidic environments and ensuring long-term durability in industrial E-Coat applications.

Selection Table

Typical Applications

The AAL Anolyte Circulation System is widely used in cathodic electrocoating production lines across multiple industries, including:

· Automotive and automotive parts manufacturing

· Construction machinery and heavy equipment

· Household appliances and metal enclosures

· Rail transit and transportation equipment

· Hardware components and structural metal parts

· New energy and electric equipment manufacturing

It is suitable for both new E-Coat line installations and upgrading existing electrocoating systems, significantly improving process stability and coating uniformity.

Frequently Asked Questions (FAQ)

Q1: What is the main function of the anolyte circulation system in E-Coating?

It controls acid accumulation in the anode chamber and maintains bath chemical balance through circulation and automatic dilution, ensuring stable electrocoating performance.

Q2: Can the system be integrated into existing E-Coat lines?

Yes, the system is designed for both new installations and retrofit upgrades of existing electrocoating production lines.

Q3: Why is conductivity control important in E-Coat processes?

Conductivity directly affects current distribution, coating thickness, and film quality. Stable conductivity ensures consistent and high-quality coating results.

Q4: Is UV sterilization necessary in anolyte systems?

Yes, UV sterilization helps prevent microbial growth and bio-sludge formation, which can otherwise lead to clogging and reduced system efficiency.

Q5: What materials are used in the system construction?

The system is built with corrosion-resistant stainless steel, ensuring reliable operation in acidic and chemically aggressive environments.

Partner with AAL Filter for E-Coat Process Optimization

Partner with AAL Filter for advanced electrocoating process control and high-performance filtration engineering solutions.

AAL Filter specializes in industrial filtration systems, E-Coat process equipment, ultra-pure chemical handling, and corrosion-resistant circulation systems designed for demanding manufacturing environments.

Our engineering team provides comprehensive support, including:

· E-Coat system design and integration guidance

· Technical consultation for anolyte circulation optimization

· Customized system configuration based on process requirements

· Equipment selection, specification review, and project support

Whether you are building a new cathodic electrocoating line or upgrading an existing system, we deliver reliable, efficient, and high-stability solutions tailored to your production needs.

Contact AAL Filter today to request technical documentation, discuss your application requirements, or explore customized E-Coat anolyte circulation solutions for your production line.
