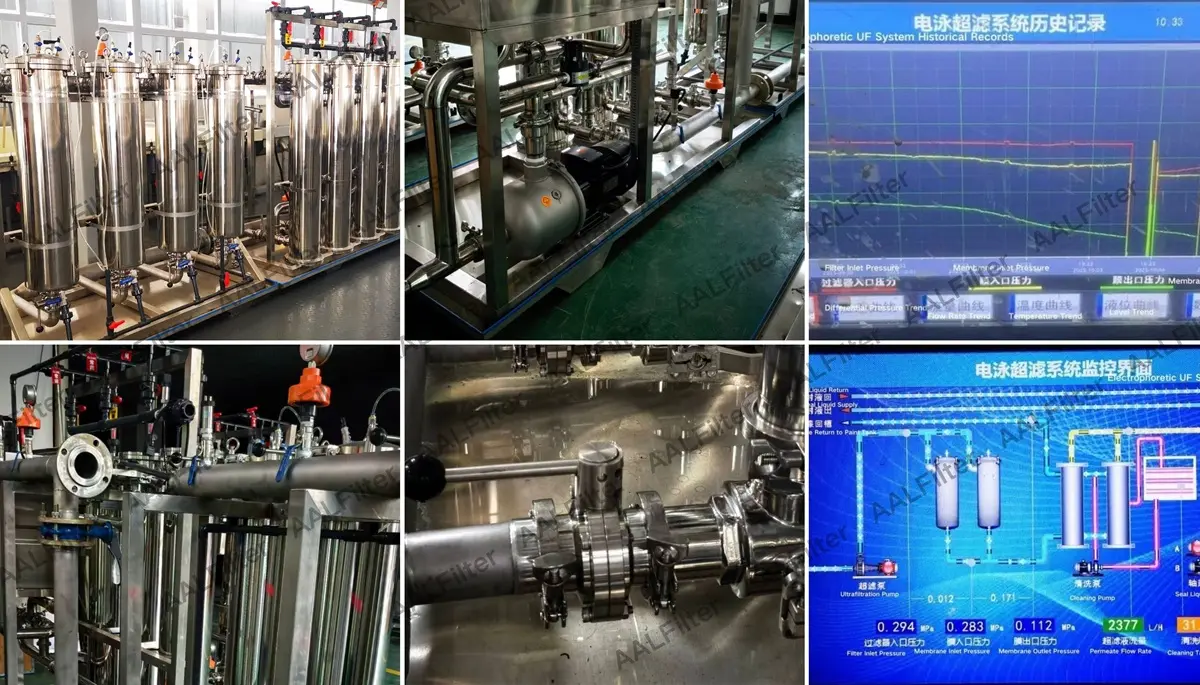

AAL E-Coat UF System | Ultrafiltration System for Electrophoretic Paint Recovery & Bath Control

The AAL E-Coat UF System (Ultrafiltration System) is specifically engineered for cathodic electrophoretic coating (E-Coat) production lines, providing efficient paint recovery, high-quality permeate production, and stable bath composition control.

Utilizing high-performance spiral-wound ultrafiltration (UF) membrane technology, the system continuously separates paint solids, resin, and pigments from the electrophoretic coating bath while allowing water and low-molecular-weight substances to pass through. The recovered permeate is ideal for UF rinsing and final rinsing processes, significantly reducing paint consumption, fresh water usage, and wastewater discharge.

Designed for continuous industrial operation, the AAL UF System integrates real-time monitoring of inlet pressure, transmembrane pressure (TMP), permeate flow rate, accumulated permeate volume, and cleaning temperature, ensuring stable membrane performance and consistent coating quality.

Its intelligent automation system helps manufacturers maintain optimal bath chemistry, improve paint utilization efficiency, extend membrane service life, and minimize operating costs. Widely used in automotive, auto parts, appliance manufacturing, metal fabrication, and industrial corrosion protection industries, the AAL E-Coat UF System delivers reliable, energy-efficient, and long-term filtration performance.

Key Features

1. High-Performance Spiral UF Membrane Technology

Equipped with premium spiral-wound ultrafiltration membranes, the system continuously recovers valuable E-Coat paint components while producing clean permeate for rinsing applications, maximizing paint utilization and minimizing waste.

2. Dual Venting & Exhaust Valve Design

Independent air inlet and exhaust valve control improves operational safety, simplifies filter bag replacement, and reduces maintenance downtime.

3. Three-Point Pressure Monitoring

High-precision 316L diffusion silicon pressure sensors continuously monitor:

· Inlet Pressure

· Transmembrane Pressure (TMP)

· System Operating Pressure

Real-time monitoring helps operators evaluate membrane conditions, prevent fouling, and optimize filtration efficiency.

4. Corrosion-Resistant Permeate Flow Measurement

A heavy-duty UPVC flow meter combined with a 316L diffusion silicon sensing element provides accurate and reliable permeate flow measurement, even under corrosive E-Coat operating conditions.

5. Digital Total Permeate Measurement

An integrated turbine flow sensor continuously records total permeate production, allowing accurate bath balance management and production data analysis.

6. AAL Intelligent PLC Control System

The intelligent PLC control system provides comprehensive process monitoring, including:

· Filter bag replacement reminder

· Pressure alarm

· Flow alarm

· Cleaning temperature protection

· Historical data recording

· Trend curve analysis

· RS-485 communication interface

This intelligent automation improves production efficiency while reducing manual intervention.

7. Fully Automatic Argon-Shielded Welding

All stainless steel piping is manufactured using fully automatic internal argon gas shield welding, producing smooth internal surfaces, high-quality double-sided welds, and minimizing contamination risks.

8. 360° Elastic Filter Bag Compression Design

The spring-loaded 304 stainless steel sealing structure provides uniform 360-degree compression, ensuring excellent sealing performance, preventing bypass leakage, and extending filter bag service life.

9. Elevated Drain & Collection Tray

The elevated collection tray effectively captures maintenance fluids, keeping production areas clean while simplifying equipment flushing and routine maintenance.

10. Simplified Valve Operation

A two-valve operating system enables multiple operating modes, including:

· Normal filtration

· Forward flushing

· Backwashing

· Circulation agitation

This simplified design improves operating efficiency and reduces maintenance complexity.

11. Cleaning Temperature Protection

A dedicated temperature monitoring system continuously protects UF membranes during cleaning cycles, preventing overheating and extending membrane service life.

Selection Table

Typical Applications

The AAL E-Coat UF System is widely used in various electrophoretic coating industries, including:

· Cathodic E-Coat painting lines

· Automotive body coating systems

· Automotive parts electrophoretic coating

· Home appliance enclosure coating

· Metal cabinet and electrical enclosure finishing

· Industrial anti-corrosion electrophoretic coating

· Construction machinery component coating

· Metal furniture electrophoretic painting

· Industrial paint recovery and UF recycling systems

Frequently Asked Questions (FAQ)

Q1. What is the primary function of an E-Coat UF System?

An E-Coat Ultrafiltration System recovers valuable paint components from the electrophoretic coating bath while producing high-quality permeate for UF rinsing and final rinsing. It helps reduce paint loss, stabilize bath chemistry, improve coating quality, and lower operating costs.

Q2. Why is Transmembrane Pressure (TMP) monitoring important?

TMP is one of the most critical indicators of membrane performance. Continuous TMP monitoring helps detect membrane fouling early, optimize cleaning schedules, maintain filtration efficiency, and extend membrane lifespan.

Q3. What types of E-Coat paint are compatible with the AAL UF System?

The system is compatible with most commercial cathodic electrophoretic coating (E-Coat) paints used in automotive, appliance, industrial equipment, and metal finishing industries. Customized membrane configurations are available based on paint characteristics and production requirements.

Q4. Does the system support automatic operation?

Yes. The AAL E-Coat UF System features a PLC-based intelligent control system with automatic monitoring of pressure, flow rate, temperature, alarms, historical data recording, trend analysis, and RS-485 communication for seamless factory automation integration.

Q5. Can the system be customized?

Absolutely. AAL Filter provides customized UF systems based on membrane area, production capacity, bath volume, automation level, piping layout, and installation space to meet specific production requirements.

Why Choose the AAL E-Coat UF System?

The AAL E-Coat UF System is designed to maximize paint recovery, improve coating consistency, and reduce production costs through intelligent process control and premium manufacturing quality.

Compared with conventional ultrafiltration equipment, our system offers:

· Higher paint recovery efficiency

· Stable E-Coat bath composition

· Longer UF membrane service life

· Intelligent PLC automation

· Low maintenance requirements

· Energy-efficient operation

· Superior welding quality and corrosion resistance

· Flexible customization for different production capacities

Whether you are installing a new electrophoretic coating line or upgrading an existing paint recovery system, AAL Filter provides reliable UF filtration solutions tailored to your application.

Partner with AAL Filter for Reliable E-Coat UF Filtration Solutions

AAL Filter specializes in the design and manufacture of E-Coat UF Systems, Ultrafiltration Systems, Paint Recovery Systems, Electrophoretic Coating Filtration Equipment, and Industrial Liquid Filtration Solutions for demanding industrial applications.

Our filtration systems are widely used in automotive manufacturing, auto parts production, home appliances, metal fabrication, industrial coating, and corrosion protection industries. Backed by experienced engineers and advanced manufacturing capabilities, we provide complete support from system selection and process optimization to customized equipment design and technical consultation.

Whether you require product datasheets, membrane selection guidance, engineering support, project quotations, or fully customized ultrafiltration systems, our team is ready to help.

Contact AAL Filter today to discuss your application requirements and discover how our E-Coat UF System can improve paint recovery, stabilize bath control, and increase production efficiency.
