AAL Spiral E-Coat UF Ultrafiltration Membrane for Paint Recovery & Electrophoretic Coating Systems

AAL Spiral E-Coat UF Ultrafiltration Membrane Elements are the core separation components of E-Coating Ultrafiltration Systems, specially designed for cathodic and anodic electrophoretic coating processes.

Engineered for demanding industrial coating applications, these spiral ultrafiltration membrane elements enable efficient electrocoat paint recovery, high-quality UF permeate production, and stable E-Coat bath chemistry control. They are widely used in automotive manufacturing, appliance coating, and industrial surface treatment industries where reliable paint recovery and process stability are essential.

By optimizing membrane separation performance, AAL E-Coat UF membranes help manufacturers reduce paint consumption, minimize wastewater discharge, improve coating efficiency, and maintain consistent coating quality.

Key Functions Include:

1. Efficient E-Coat Paint Recovery

During the electrophoretic coating process, valuable paint particles are carried away from coated workpieces during rinsing.

The AAL Spiral E-Coat UF Membrane effectively separates paint solids from low-molecular-weight impurities, allowing recovered paint concentrate to be returned directly to the E-Coat bath for reuse.

This high-efficiency paint recovery process can help manufacturers:

· Reduce E-Coat paint consumption by approximately 30%

· Minimize paint-containing wastewater discharge

· Improve coating material utilization efficiency

· Reduce overall production costs

2. Production of High-Quality UF Permeate

The UF permeate produced by AAL E-Coat ultrafiltration membranes features stable quality and low impurity levels.

The permeate water can be reused as rinse water in E-Coating lines, helping manufacturers reduce fresh water consumption while maintaining a stable cleaning process.

Benefits include:

· Stable permeate quality

· Reduced wastewater generation

· Improved water recycling efficiency

· Enhanced E-Coating process sustainability

3. E-Coat Bath Chemistry Stabilization

During continuous E-Coating production, excess ions and low-molecular-weight contaminants may accumulate in the coating bath.

AAL UF membrane elements provide selective separation performance to remove unwanted impurities through controlled UF permeate discharge, helping maintain:

· Stable bath conductivity

· Consistent coating performance

· Longer bath service life

· Improved production reliability

Features

1. High-Performance PVDF Ultrafiltration Membrane Material

AAL Spiral E-Coat UF Ultrafiltration Membranes are manufactured with advanced PVDF separation layers, providing excellent chemical resistance and fouling control in harsh E-Coating environments.

Key advantages include:

· Excellent chemical compatibility

· Strong resistance to coating chemicals

· Good anti-fouling performance

· Long-term operational stability

· Reliable cleaning recovery capability

2. Multiple Membrane Configurations Available

To meet different E-Coat UF system designs, AAL provides various membrane element configurations, including:

3. Compatible with Cathodic and Anodic E-Coating Processes

AAL E-Coat UF membrane elements can be supplied with different charge characteristics to match specific coating chemistries.

Suitable for:

· Cathodic E-Coating Systems

· Anodic E-Coating Systems

The optimized membrane surface properties ensure efficient paint separation while maintaining stable coating bath conditions.

4. High Recovery Efficiency with Stable Flux Performance

The optimized spiral membrane structure provides:

· High E-Coat paint recovery efficiency

· Stable permeate flux

· Reduced performance fluctuation

· Improved system productivity

This helps E-Coating manufacturers achieve reliable continuous operation and consistent filtration performance.

5. Wide Operating Range and Chemical Cleaning Capability

AAL Spiral UF Membrane Elements are designed for demanding industrial environments with:

· Wide pH operating tolerance

· Elevated temperature resistance

· Continuous production capability

· Chemical cleaning compatibility

They are suitable for long-term operation in automotive and industrial electrophoretic coating lines.

6. Direct Replacement for Major E-Coat UF Membrane Brands

AAL provides dimensionally compatible and performance-matched UF membrane elements for many existing E-Coating ultrafiltration systems.

Advantages include:

· Easy replacement of existing membrane elements

· Reduced equipment modification requirements

· Lower maintenance costs

· Reliable alternative solution for international brands

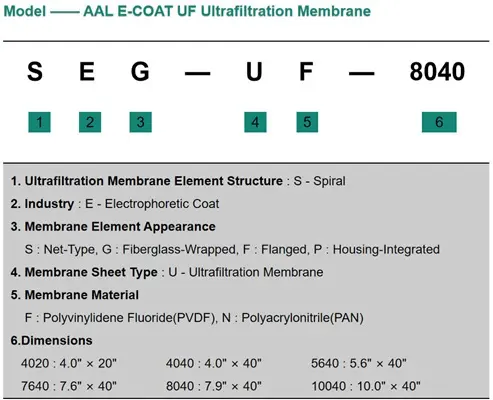

Model Specifications

Interchangeable Product Reference

Technical Parameters

Typical Applications

AAL Spiral E-Coat UF Ultrafiltration Membrane Elements are widely used in:

● Automotive E-Coating Lines

Used in automotive body coating processes for efficient electrocoat paint recovery, UF permeate production, and stable coating bath management.

Applications include:

· Automotive body painting

· Anti-corrosion coating processes

· Vehicle manufacturing coating lines

● Home Appliance Manufacturing E-Coating Systems

Suitable for electrophoretic coating applications in:

· Refrigerators

· Washing machines

· Air conditioner components

· Metal appliance parts

The UF membrane system improves paint utilization and coating consistency.

● Industrial Electrophoretic Coating & Surface Treatment Systems

Applied in various industrial metal finishing processes, including:

· Machinery components

· Electrical equipment

· Hardware products

· Precision metal parts

Frequently Asked Questions (FAQ)

Q1: What is an E-Coat UF Ultrafiltration Membrane used for?

An E-Coat UF Ultrafiltration Membrane is mainly used for electrophoretic paint recovery, UF permeate production, and E-Coat bath chemistry control in electrocoating systems.

It helps manufacturers recover valuable paint, reduce waste, and maintain stable coating quality.

Q2: Can AAL UF membranes be used for both cathodic and anodic E-Coating?

Yes. AAL Spiral E-Coat UF Membrane Elements are designed for both cathodic electrophoretic coating and anodic electrophoretic coating systems.

Q3: How does an E-Coat UF system recover paint?

During the rinsing process, UF membranes separate paint particles from water and low-molecular-weight impurities. The concentrated paint solution is returned to the E-Coat tank for reuse, improving paint utilization efficiency.

Q4: Can AAL UF membranes replace existing international membrane brands?

Yes. AAL provides compatible E-Coat UF membrane elements with similar dimensions and performance characteristics, making them suitable replacement options for many existing ultrafiltration systems.

Q5: Does AAL provide customized E-Coat UF membrane solutions?

Yes. AAL offers customized membrane selection, configuration matching, and technical support based on different E-Coating processes, system layouts, and operating conditions.

Partner with AAL Filter for Advanced E-Coat Ultrafiltration Solutions

AAL Filter specializes in high-performance filtration solutions for electrophoretic coating systems, automotive manufacturing, industrial surface treatment, and advanced liquid separation applications.

Our Spiral E-Coat UF Ultrafiltration Membrane Elements are engineered to provide efficient paint recovery, stable UF permeate production, and reliable E-Coat bath management for demanding industrial coating processes.

Whether you need E-Coat UF membrane replacement, technical specifications, system compatibility evaluation, or customized ultrafiltration solutions, our experienced engineering team is ready to support your project.

Contact AAL Filter today to discuss your application requirements, request technical support, obtain product information, or explore customized E-Coating ultrafiltration membrane solutions for your production line.
