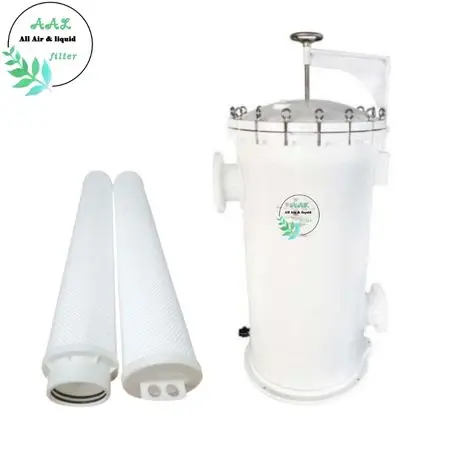

AAL FRP 2-12 40-Inch Parker High-Flow Multi-Cartridge Filter Housing High-Volume Liquid Filtration
- FRP High-Strength Winding Structure for Maximum Durability
- Multi-Cartridge Design for Ultra-High Flow Capacity
- Precision-Sealing Head Design
- Tool-Free Operation with Manual Opening Mechanism
- Optional Inlet/Outlet Sizes and Connection Types
- Corrosion-Resistant Coating with Custom Colors
The AAL FRP Parker-High-Flow Multi-Cartridge Filter Housing, designed and manufactured by AAL Filter, is an advanced FRP filtration vessel built specifically for Parker 40-inch high-flow filter cartridges. Supporting 2 to 12 cartridges, it delivers exceptional flow capacity, long service life, and superior corrosion resistance for demanding industrial liquid treatment applications.
Constructed with premium fiberglass reinforced plastic (FRP) and advanced filament winding technology, the housing provides excellent resistance to seawater, chemicals, corrosive liquids, and harsh industrial conditions. It is lightweight yet mechanically strong, ensuring stable operation, easy maintenance, and long-term reliability.
AAL Filter’s FRP high-flow series includes melt-blown cartridge housings, bag filter housings, high-flow cartridge housings, and multi-stage FRP filtration systems—offering complete compatibility across various flow rates, processes, and installation requirements. The housing is fully compatible with Parker, 3M, Pall, and other major high-flow cartridge brands, providing users greater supply flexibility and cost efficiency.
Key Features
1. FRP High-Strength Winding Structure for Maximum Durability
Manufactured using advanced fiberglass winding, the vessel offers:
● excellent corrosion resistance
● high mechanical and pressure strength
● long-term structural stability
Perfect for seawater desalination, chemical processing, and corrosive industrial applications.
2. Multi-Cartridge Design for Ultra-High Flow Capacity
Supports 2–12 pieces of 40" Parker high-flow cartridges, enabling:
● high throughput
● extended filtration cycles
● greater dirt-holding capacity
Ideal for large-scale industrial filtration lines.
3. Precision-Sealing Head Design
The top sealing chamber includes an adjustable sealing block and high-strength compression nut, ensuring:
● secure cartridge installation
● zero-bypass sealing
● stable filtration performance
4. Tool-Free Operation with Manual Opening Mechanism
The ergonomic lifting ring allows operators to open and close the housing easily, reducing downtime and improving service efficiency.
5. Optional Inlet/Outlet Sizes and Connection Types
Available sizes: DN100, DN125, DN150, DN200, DN250
Connection options include flanged, clamp, or customized types.
6. Corrosion-Resistant Coating with Custom Colors
The eco-friendly coating improves surface durability, corrosion resistance, and aesthetics. Custom colors are available for factory integration or branding needs.
Model Specifications
Installation Dimensions
Specifications
Model | AALMax-V40-2 | AALMax-V40-3 | AALMax-V40-4 | AALMax-V40-5 | AALMax-V40-6 | AALMax-V40-7 | AALMax-V40-12 (8-12) |
Cartridge Model | Parker | ||||||
Filter Qty | 2 | 3 | 4 | 5 | 6 | 7 | 8-12 |
Cap Dia | 500 | 500 | 500 | 725 | 725 | 725 | 920 |
Height L1 | 1460 | 1460 | 1460 | 1680 | 1680 | 1680 | 1730 |
Height L2 | 430 | 430 | 430 | 655 | 655 | 655 | 920 |
Height L3 | 180 | 180 | 180 | 280 | 280 | 280 | 290 |
In-outlet | DN100 | DN100 | DN125 | DN125 | DN150 | DN200 | DN250 |
Max Flow m³/h | 40-60 | 75-90 | 100-120 | 130-150 | 160-180 | 190-210 | 220-360 |
D Outer Dia | 437 | 437 | 437 | 647 | 647 | 647 | 860 |
D2 Install Dim | 346 | 346 | 346 | 495 | 495 | 495 | 645 |
Max Working pressure: 0.8 MPa Dimension unit: mm
Note: The inlet and outlet sizes are available in DN100, DN125, DN150, DN200 and DN250.Working Temp：5-66℃ .
Precautions
1. Ensure the filter cartridge is installed correctly and tighten the sealing block nut.
2. Do not exceed the rated working pressure (≤ 6 kg/cm²).
3. Before system startup, open the air-release valve and close it after all air is expelled.
4. If the inlet–outlet pressure difference exceeds 1.5 kg/cm², replace the cartridge immediately.
Applications
The housing is widely used in industries requiring high flow, high corrosion resistance, and long service cycles, including:
● Seawater desalination & pretreatment
● Industrial water treatment
● Petrochemical and chemical process filtration
● Power plant circulating water
● Food & beverage production
● Electroplating & metal finishing
● Environmental engineering & wastewater treatment
AAL Filter’s FRP high-flow filtration systems provide stable, safe, and cost-effective performance under harsh industrial conditions.
Your High-Flow FRP Filtration Partner
Enhance the capacity, durability, and reliability of your liquid filtration system with AAL’s FRP Parker-compatible high-flow filter housings. Whether upgrading an existing line or designing a new filtration process, AAL Filter provides complete support—from product selection to engineering guidance.
Contact us for technical documents, quotations, or replacement recommendations.
