Air Filtration Solutions in the Automotive Industry

1. Paint Booths

Core Issue: Overspray mist, dust, and airborne contaminants degrade paint quality, leading to defects (e.g., orange peel, pinholes) and environmental hazards.
Solutions:

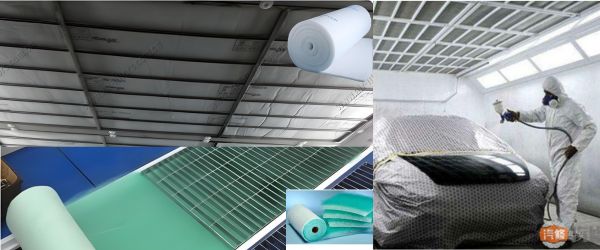

Paint Arrestor Filter Media:

Floor Filters: Capture falling overspray particles (e.g., wet paint droplets) using glass fiber or synthetic media(paint stop filter Media, Ceiling Filter Media).

Exhaust Filters: Trap residual aerosols before air is expelled, ensuring compliance with emission standards.

Primary Filters (G4):

Remove large particles (≥5µm) like dust and debris to protect downstream systems.

Medium Efficiency Filters (F7-F9):

Filter fine particles (1–5µm) to improve air quality in spray zones.

HEPA Filters (H13-H14):

Final-stage filtration (99.95–99.995% efficiency for 0.3µm particles) for defect-free finishes.

Recommended Products: Modular filter media rolls (e.g., glass fiber pads) combined with multi-stage HVAC filtration.

2. Drying Rooms / Curing Ovens

Core Issue: Dust and micro-particles in high-temperature environments can adhere to curing surfaces, causing imperfections.
Solutions:

Primary Filters (G4):

Pre-filter incoming air to remove coarse contaminants.

High-Temperature HEPA Filters:

Stainless steel or ceramic frames withstand 140–250°C, capturing particles as small as 0.3µm.

Recommended Products: Heat-resistant H13/H14 filters with ULPA-grade efficiency for critical applications.

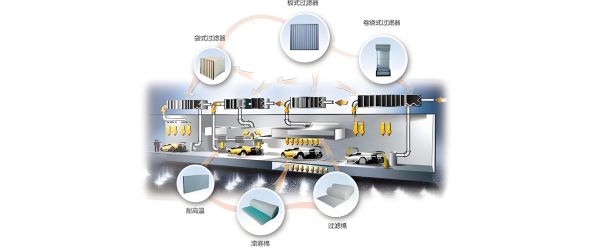

3. HVAC & Air Handling Units (AHUs)

Core Issue: External pollutants (e.g., pollen, industrial dust) compromise air quality in assembly and painting areas.
Solutions:

Primary + Medium Filters (G4 + F7):

Protect AHUs from bulk contaminants and extend HEPA filter lifespan.

HEPA Filters (H13):

Maintain ISO Class 8 air quality in precision coating zones and cleanrooms.
Recommended Products: Centralized AHU systems with automated pressure-drop monitoring.

4. Sanding & Polishing Rooms

Core Issue: Airborne sanding dust poses health risks and contaminates adjacent painting areas.
Solutions:

Primary + Medium Filters (G4 + F7):

Capture 90% of sanding dust (e.g., metal/plastic particulates).

Paint Arrestor Filters:

Isolate cross-contamination between sanding and painting zones.
Recommended Products: Cyclonic dust collectors paired with electrostatic precipitators.

5. Final Assembly Workshops

Core Issue: Dust infiltration damages sensitive components (e.g., electronics, interiors).
Solutions:

Primary + Medium Filters (G4 + F7):

Maintain ISO Class 7 air quality for dust-free assembly lines.

Recommended Products: Low-energy ceiling-mounted units with anti-static coatings.

6. Auto Parts Coating (Wheels, Bumpers, etc.)

Core Issue: Inconsistent air quality leads to coating defects on parts.
Solutions:

Paint Arrestor Filters + HEPA (H13):

Mirror standards for uniform finishes on components.

Recommended Products: Compact booth systems with adjustable airflow for small parts.

7. Environmental Emission Control

Core Issue: VOC and particulate emissions violate environmental regulations.
Solutions:

Activated Carbon Filters:

Adsorb solvents (e.g., toluene, xylene) with >85% VOC removal efficiency.

Scrubber + HEPA Systems:

Combined PM and VOC abatement for regulatory compliance.

Recommended Products: Regenerative thermal oxidizers (RTOs) with carbon adsorption beds.
