How to Solve Pipe Diameter Mismatch with High-Pressure Step Couplings

1. Introduction

In industrial water treatment and pipeline systems, one of the most common on-site challenges is pipe diameter mismatch—especially when connecting new pipelines to existing infrastructure. Differences in outer diameter (OD), materials, or standards (ANSI vs. DIN) can quickly turn a simple installation into a costly delay.

This is where Step Couplings become a practical, high-efficiency solution. Instead of redesigning the pipeline or fabricating custom parts, engineers can use mechanical couplings to quickly bridge incompatible pipe sizes—saving both time and labor costs.

2. What is a Step Coupling?

A Step Coupling is a type of mechanical coupling designed to connect two pipes with different outer diameters. It features a stepped sealing structure, allowing each side of the coupling to accommodate a different pipe size securely.

Unlike standard couplings, which require identical pipe dimensions, step couplings provide a flexible transition between mismatched pipes—making them a specialized form of Transition Couplings or Reducing Couplings.

Material compatibility:

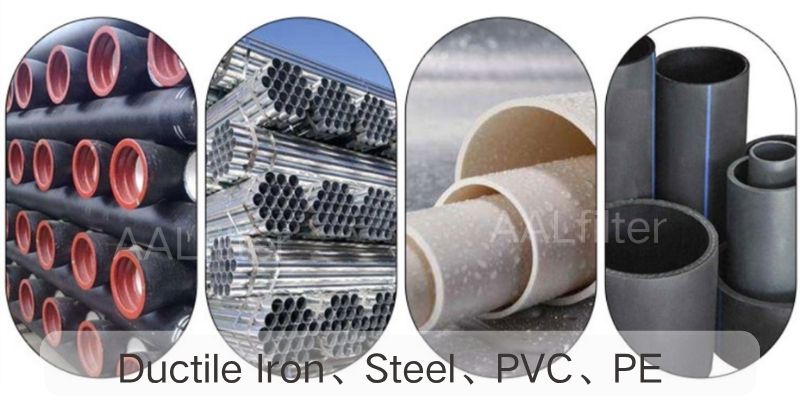

· Ductile Iron (DI)

· PVC / uPVC

· HDPE / PE

· Carbon Steel / Stainless Steel

This versatility also places them within the broader category of:

· Adaptor Couplings (for connecting dissimilar systems)

· Wide Range Couplings (for tolerating OD variations)

· Universal Couplings (for multi-material compatibility)

3. Key Benefits

1) Compensation for Dimensional Variations

Different international standards often result in slight OD differences—even for pipes with the same nominal diameter. Step couplings effectively absorb these discrepancies, eliminating the need for machining or custom fabrication.

2) Fast and Simple Installation

As a type of mechanical coupling, step couplings require no welding or threading. Installation is typically completed using bolts, significantly reducing downtime and labor costs—especially in maintenance or emergency repair scenarios.

3) High Pressure Performance

Designed for demanding environments, step couplings are available in multiple pressure ratings:

· PN10

· PN16

· PN25

· PN40

This makes them suitable for high-pressure water transmission systems.

4) Corrosion Resistance

Most high-quality couplings feature fusion-bonded epoxy coatings, ensuring long-term durability in aggressive environments such as wastewater treatment, seawater systems, and chemical processing.

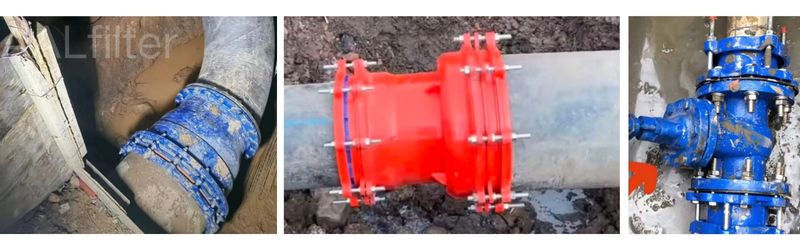

4. Top Applications

Step couplings are widely used across industries where pipe compatibility is a challenge:

· Municipal Water Supply Systems
Ideal for connecting old and new pipelines during upgrades or expansions.

· Pipeline Rehabilitation Projects
Common in aging infrastructure where original pipe standards are no longer consistent.

· Industrial Water Treatment Plants
Frequently used to connect different pipe materials (e.g., steel to PE).

· Agricultural Irrigation Systems
Connecting main metal pump station piping to terminal plastic irrigation lines

· Oil & Gas / Petrochemical Applications
Suitable for temporary or permanent connections in complex piping networks.

· Desalination Plants
Particularly useful where corrosion-resistant and high-pressure solutions are required.

5. How to Choose the Right Coupling

Selecting the correct step coupling is critical for system performance and safety:

Step 1: Measure Outer Diameter (OD)
Always measure the actual OD, not just the nominal diameter (DN). Even small deviations can affect sealing performance.

Step 2: Identify Fluid Type
Choose sealing materials based on the medium:

· EPDM: Water, wastewater

· NBR: Oil, hydrocarbons

Step 3: Confirm Pressure Rating
Ensure the coupling matches or exceeds system pressure requirements (e.g., PN16 vs. PN40).

Step 4: Check Compatibility Range
For projects with uncertain tolerances, consider Wide Range Couplings or Universal Couplings as alternatives.

6. Conclusion & CTA

Step Couplings provide a cost-effective, flexible, and high-performance solution for pipe diameter mismatch—eliminating the need for complex modifications or system redesign.
