How to Ensure Ductile Iron Pipe Stability Without Concrete Thrust Blocks?

1. Introduction: The Hidden Risk in Pipeline Projects

In underground pipeline construction, instability is a recurring challenge—especially at bends, tees, and dead ends. Hydraulic transients such as water hammer can generate significant thrust forces, often leading to joint separation or leakage.

Traditionally, engineers rely on concrete thrust blocks to counteract these forces. However, this approach comes with clear drawbacks:

· Time-consuming installation

· Large excavation footprint

· Increased labor and material costs

Modern projects—especially in urban or fast-track EPC environments—demand a more efficient solution.

Enter the Tyton Restrained Joint system, featuring a self-restraining gasket that eliminates the need for bulky concrete supports while ensuring long-term pipeline stability.

2. What is a Tyton Restrained Gasket?

A Tyton Restrained Gasket is an advanced sealing and anchoring solution designed for Ductile Iron Pipe fittings and pipelines (DN80–DN1200).

Core Structure

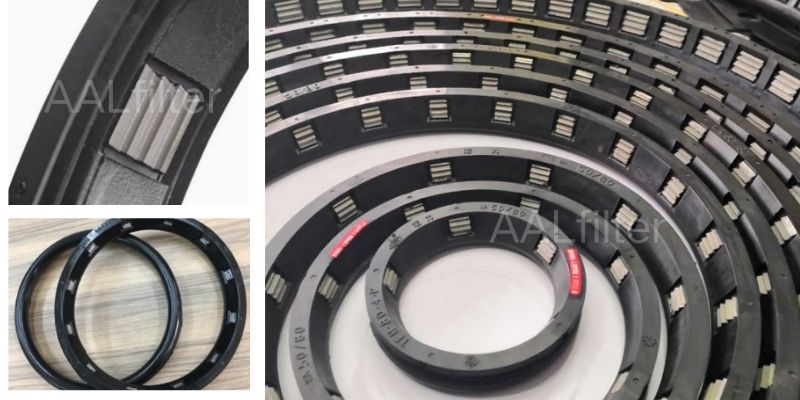

· High-performance elastomer (EPDM or NBR)

· Embedded stainless steel teeth (locking segments)

Working Principle

Unlike standard push-on joints, this system provides mechanical restraint:

· Once assembled, the stainless steel teeth engage the pipe spigot

· Internal pressure increases → gripping force strengthens

· Prevents axial movement and joint separation

This “pressure-activated locking” mechanism makes it a true self-restraining gasket.

Standards & Compatibility

· Compatible with ductile iron pipe systems per ISO 2531 / EN 545

· Suitable for potable water and industrial applications

3. Key Advantages

Cost Efficiency

· Eliminates concrete thrust blocks

· Reduces excavation and backfill volume

· No curing time → faster commissioning

Versatility

· Ideal for HDD (Horizontal Directional Drilling) and trenchless installations

· Performs well in complex routing conditions

Space Saving

· No need for large thrust block structures

· Perfect for congested underground corridors

Reliability

· Maintains joint integrity under:

o Water hammer

o Soil settlement

o Seismic activity

4. Application Scenarios

The Tyton Restrained Joint system is widely used in demanding pipeline environments:

· Municipal Water Supply
High-pressure transmission mains

· Fire Protection Systems
Instantaneous pressure surges require secure joints

· Bridge Crossings & Sloped Installations
Prevents pipe pull-out due to gravity and flow forces

· Island & Coastal Projects
Especially suitable for seawater desalination pipeline networks, where reliability and corrosion resistance are critical

5. Installation Best Practices

To ensure optimal performance, follow these key steps:

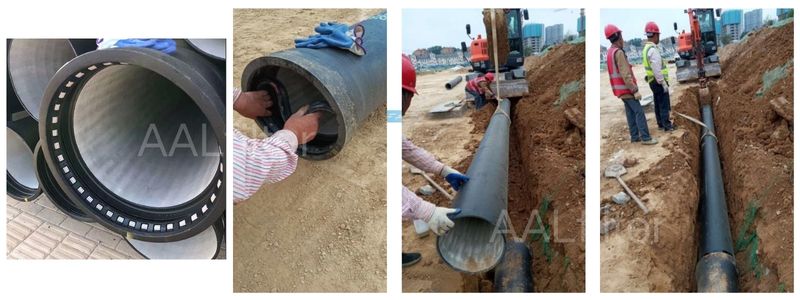

Preparation

· Clean the socket and spigot thoroughly

· Remove debris, sand, or oil

Lubrication

· Apply approved lubricant evenly

· Prevents gasket displacement during insertion

Assembly Check

· Confirm full insertion depth

· Visually inspect that the restraining mechanism is properly engaged

Proper installation is essential to achieve the full benefit of a self-restraining gasket system.

6. Comparison: Standard vs Restrained Gasket

7. Conclusion & Call to Action

As pipeline projects evolve toward faster, more space-efficient construction methods, Tyton Restrained Joint systems are becoming the preferred alternative to traditional thrust blocks.

They offer:

· Faster installation

· Lower total cost

· Superior reliability

For engineers, contractors, and procurement teams, adopting self-restraining gasket solutions is no longer optional—it’s a competitive advantage.

Ready to Upgrade Your Pipeline Design?

Looking for high-quality restrained gaskets for your next bidding project?

· Request technical drawings and specifications

· Get bulk pricing for DN80–DN1200 sizes

· Explore complete solutions for Ductile Iron Pipe fittings and industrial systems
