High flow Water Filter Cartridge Replacement for Pall
- Superior Filtration Efficiency
- High Flow Rate
- Wide Chemical Compatibility
- Rigid Outer Cage
- FDA Compliance
- Cost-Effective
High flow Water Filter Cartridge Replacement for Pall
Product Overview

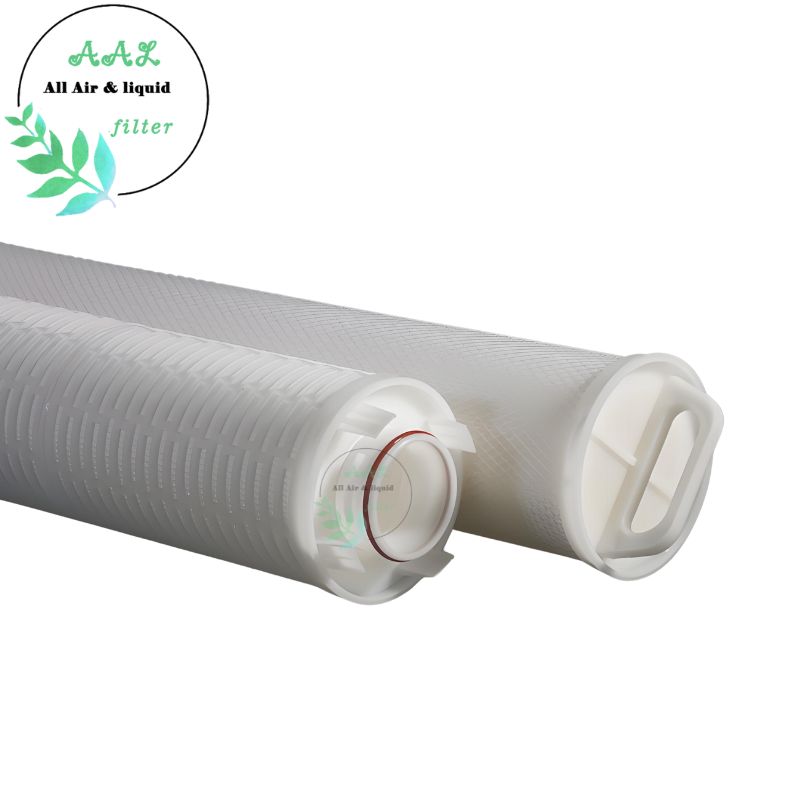

The PP Pleated High Flow Water Filter Cartridge is a high-performance, cost-effective replacement for Pall Ultipleat® high flow filters. Designed with depth fine PP non-woven fabric, this cartridge features a large diameter (6 inches) and a pleated structure that maximizes filtration area and dirt-holding capacity. Its inside-to-outside flow pattern ensures high efficiency and long service life, making it an ideal alternative to Pall Ultipleat® filters for high flow water filtration system applications in industrial and commercial settings.
Key Features:
✅ Superior Filtration Efficiency: The pleated design and depth fine PP media provide high dirt-holding capacity and excellent filtration performance, comparable to Pall Ultipleat® high flow filters.
✅ High Flow Rate: Optimized for hi flow applications, reducing system downtime and operational costs.
✅ Wide Chemical Compatibility: 100% polypropylene construction ensures compatibility with acids, alkalis, solvents, and other aggressive fluids.
✅ Rigid Outer Cage: Stainless steel or PP outer cage provides structural stability and withstands high pressure, ensuring no bypass.
✅ FDA Compliance: Meets FDA requirements, making it suitable for food, beverage, and pharmaceutical applications.
✅ Cost-Effective: Economical design and easy handling reduce labor and maintenance costs.
✅ No Bypass: Inside-to-outside flow pattern ensures all impurities are trapped within the filter media.
Specifications:
Specification | Details |
Product Name | Hi Flo Water Filter Replacement for Pall |
Filter Media | Polypropylene (PP) |
Length Options | 20", 40", 60" |
Outside Diameter (OD) | 6 inches (152mm) |
Inside Diameter (ID) | 73.5mm |
Filtration Rating | 1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm |
Support/Drainage | Polypropylene (PP) |
End Cap Material | Glass fiber reinforced Polypropylene (PP) |
Cage Material | PP or Stainless Steel (optional) |
Seal Material | Silicone, EPDM, Viton, E-FKM |
Max. Operating Temperature | 82°C (180°F) |
Max. Operating Pressure | 3 bar @ 21°C |
Flow Direction | Inside to Outside |
Surface Area | 3.5㎡ (20"), 7㎡ (40"), 10.5㎡ (60") |
Recommended Change-out Pressure | 2.5 bar @ 20°C |
Tech Support
Our team is available for troubleshooting, technical assistance, and to help you select the right filtration solutions for your applications.
Applications
✅ Food & Beverage: Filtration of bottled water, edible oils, soft drinks, and dairy products Using high flow water filters.
✅ Pharmaceutical: Filtration of APIs, solvents, and purified water.
✅ Power Generation: Cooling water and boiler feedwater filtration.
✅ Water Treatment: Pre-filtration for RO systems and seawater desalination.
✅ Microelectronics: Filtration of ultrapure water and chemicals in semiconductor manufacturing.
✅ Oil & Gas: Filtration of completion fluids, injection water, and solvents.
✅ Paints & Coatings: Filtration of industrial coatings, lacquers, and inks.
✅ Chemical Processing: Filtration of acids, alkalis, and solvents.
✅ Steel Plants: Filtration of cooling water and process fluids.
