High Volume Filter Cartridge – 60” 6.7”OD 5-20micron Replacement Pentair for Water Treatment Systems
- Direct Replacement-Fully compatible with Pentair AquaLine filter
- High Performance-Each cartridge replaces 20 standard cartridges
- Cost Savings-reducing system footprint and costs
- Wide Availability: Shorter lead times and reliable supply chain
- Long life-time

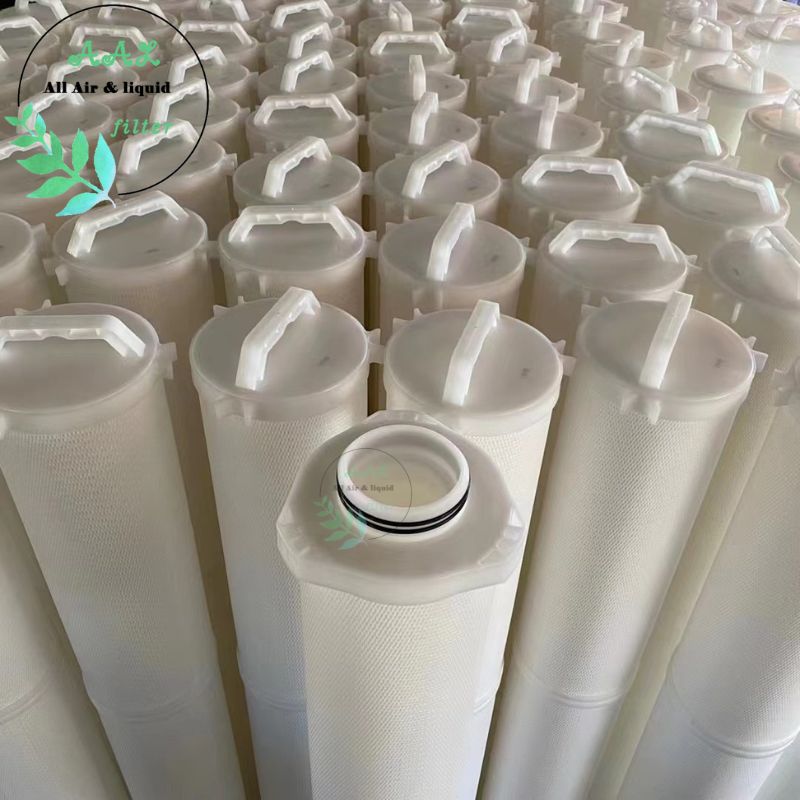

High Volume Filter Cartridge Replacement for Pentair
Product Overview
The AALfilter's Series Pleated High Volume Water Filter Cartridge is designed for high-flow, high-efficiency filtration applications. Developed by AAL Filtration, this cartridge is a direct replacement for Pentair AquaLine high flow filters.
With a large diameter of 6.75 inches and a pleated structure, it provides maximum flow rates with low pressure drop. making it ideal for high flow whole house water filter systems and industrial high volume water filtration needs.
The cartridge features polypropylene (PP) media, a hard central PP core, and a proprietary O-ring seal to ensure no bypass. Its absolute rated filtration achieves 99.98% efficiency (Beta 5000) at the stated micron sizes, best for demanding industrial and commercial applications.
Key Features:
✅ High Flow Rate: Each cartridge provides 20 times more media area than standard 10-inch pleated cartridges, significantly reducing the number of cartridges needed and saving costs. perfect for high volume water filter setups requiring consistent performance.
✅ Absolute Filtration Efficiency: Achieves 99.98% efficiency (Beta 5000) at the stated micron sizes, ensuring superior filtration performance.
✅ No Bypass Design: Proprietary O-ring seal and hard central core ensure no bypass, providing consistent filtration quality.
✅ High Dirt-Holding Capacity: The pleated design and depth fine PP media provide exceptional dirt-holding capacity and long service life.
✅ Wide Chemical Compatibility: 100% polypropylene construction ensures compatibility with acids, alkalis, solvents, and other aggressive fluids.
✅ Cost-Effective: Reduces the number of cartridges needed, saving space, maintenance, and operational costs. Especially in high volume water filtration systems.
Specifications:
Specification | Details |
Product Name | High Volume Water Filter Replacement for Pentair |
Filter Media | Polypropylene (PP) |
Length Options | 40", 60" |
Outside Diameter (OD) | 6.75 inches (170mm) |
Filtration Rating | 0.6μm, 1μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm |
Support/Drainage | Polypropylene (PP) |
End Cap Material | Glass fiber reinforced Polypropylene (PP) |
Cage Material | Polypropylene (PP) |
Seal Material | EPDM, Buna-N, Viton |
Max. Operating Temperature | 82°C (180°F) |
Max. Operating Pressure | 1.4 bar @ 82°C |
Flow Direction | Outside to Inside |
Surface Area | 7.3㎡ (40"), 11㎡ (60") |
Recommended Change-out Pressure | 2.0 bar @ 20°C |
Tech Support
Our team is available for troubleshooting, technical assistance, and to help you select the right filtration solutions for your applications.
Applications
✅ Sea Water Desalination: Pre-filtration for RO systems and seawater treatment.
✅ Food & Beverage: Filtration of bottled water, edible oils, soft drinks, and dairy products.
✅ Microelectronics: Filtration of ultrapure water and chemicals in semiconductor manufacturing.
✅ Oil & Gas: Filtration of completion fluids, injection water treatment, and solvents.
✅ Power Generation: Cooling water and boiler feedwater filtration.
✅ Steel Mill Water Treatment: Filtration of cooling water and process fluids.
✅ Municipal Water: Filtration of drinking water and process water. Including high flow whole house water filter solutions for urban infrastructure.
✅ Cosmetic & Medical: Filtration of pharmaceutical solutions and purified water.
✅ Residential & Commercial: Ideal for high volume water filter applications in large-scale buildings requiring reliable, high-flow filtration.
