Choosing the Best High Flow Water Filters: 2025 Industrial Guide
High flow water filter cartridges are essential components in modern industrial, municipal, and high-volume RO filtration systems. This guide will help you understand their core advantages, how to choose the right type, and what parameters matter most in real-world applications.
I. What Is a High Flow Filter Cartridge?
A high flow filter cartridge is designed to efficiently handle large volumes of water or liquids. Its key benefits include:
High throughput: A single cartridge can handle 50–500 GPM.
Large filtration area: A 60-inch filter can offer up to 10㎡ surface area.
Extended service life: Less frequent replacements, lower operating cost.
Typical dimensions: OD 152–160mm; Length 20", 40", 60".
II. High Flow Filters vs. Standard Filters
Feature | High Flow Cartridge | Standard Cartridge |
---|---|---|
Cartridge Quantity | 90% fewer needed | Requires more filters |
Footprint | Compact, 50% smaller | Bulkier systems |
Service Life | 3–5x longer | Frequent replacements |
Pressure Drop | Lower (⅓ of standard) | Higher, energy-consuming |
Filtration Precision | 0.1μm (multi-layer options) | ≥5μm typical (melt-blown/string) |
III. Key Features of High Flow Filter Cartridges
Pleated Structure: Increased surface area, high dirt-holding capacity.
Inside-Out Flow Design: Prevents downstream contamination.
Rigid Outer Cage: Withstands pressure differentials up to 0.245MPa.
Material Options:
PP: For general water, food, beverage <82°C
PET: For oils, lubricants <150°C
GF: For corrosive chemicals up to 250°C
Eco-Friendly Disposal: Metal-free, easy incineration.
Optional Reusability: Some models support chemical cleaning.
IV. Benefits of Using High Flow Water Filters
1. Higher Efficiency
Single filter element can replace multiple standard ones, handling 5–10x more flow.
2. Downtime Reduction
Quick change-outs and backwashing (≤5 kg/cm²) minimize system interruptions.
3. Compact System Design
Smaller housing footprint; ideal for retrofit or space-constrained setups.
4. Lower Operating Costs
Fewer replacements, higher dirt-holding capacity, and better energy efficiency.
5. Environmental Compliance
Improved contaminant removal supports discharge regulations and water reuse.

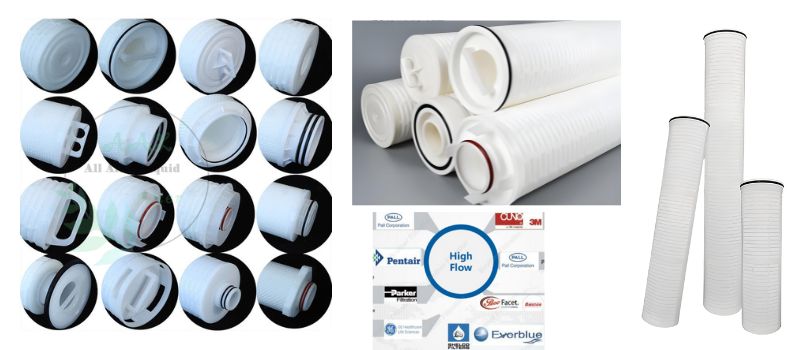

V. How to Choose a High Flow Filter Cartridge
A. Compatibility with Major Brands
Brand | Diameter | Lengths | Flow Rate | Materials | Notes |
---|---|---|---|---|---|
PALL Ultipleat | 6" | 20/40/60" | 40–110 m³/h | 100% PP | Heat-welded core |
3M 740B / 7000 | 6.5" | 20/40/60" | 40–110 m³/h | PP | Radial pleats |
Parker Megaflow | 6" | 40" | ~70 m³/h | PP + multi-layer | Graded pore design |
Pentair Aqualine | 6.75" | 40/60" | High flow | Melt-blown PP | 23x standard area |
B. By Operating Conditions
Application | Material | Temp. Limit |
---|---|---|
Water treatment / food | PP | ≤82°C |
Oil & lubricant filtration | PET | ≤150°C |
Chemical / acids | GF | ≤250°C |
C. Size Customization
Standard: 20", 40", 60"
Custom: Available on request (length, OD, end-cap style)
VI. Common Applications
Water Treatment
Seawater Desalination & RO Pre-treatment
Municipal & Circulating Water Systems
Industrial Wastewater Filtration
Chemical & Energy Industries
Paints, Electroplating Solutions, Coatings
Oilfield Injection Water / Produced Water
Cooling & Condensate Systems in Power Plants
Pharmaceutical & Biotech
Sterile Water Filtration
Drug Intermediate Clarification
Food & Beverage
Juices, Edible Oils, Dairy Liquids, Syrups
Electronics Manufacturing
Pre-Filtration for Ultrapure / DI Water Systems
Pulp & Paper
Dye Residue, Fiber Removal in Process Water

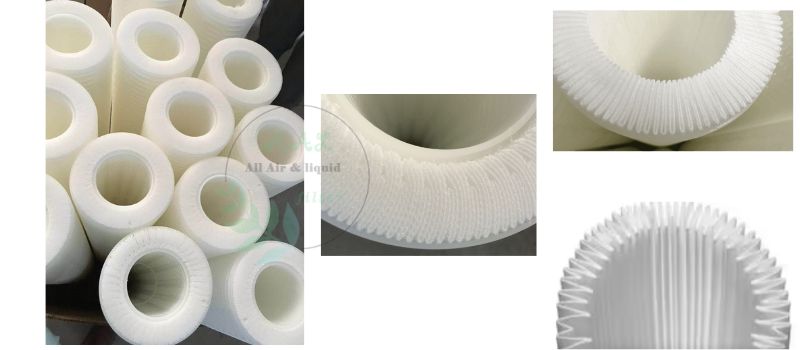

VII. How to Calculate Filtration Area
Formula:
Filtration Area (m²) = 2 × Pleat Height (m) × Number of Pleats × Cartridge Length (m)
Example:
For a 60" (1.524m) filter with 110 pleats (30mm = 0.03m height):2 × 0.03 × 110 × 1.524 ≈ 10.058㎡
🧠 Tip: Thinner media = more pleats = greater surface area
VIII. Installation & Maintenance Tips
🔧 Installation Steps for High Flow Filter Cartridges and Housings
High flow water filters are typically installed inside high flow filter vessel/housing, which are engineered to handle large flow rates and pressures with minimal footprint.
Step-by-Step Installation:
Prepare the Filter Housing:
Open the high flow filter housing and ensure it is clean and free of residual contaminants.Wet the O-ring:
Lubricate the cartridge O-ring with clean water or a compatible lubricant to ensure a tight seal and ease of insertion.Insert the Cartridge:
Align the high flow filter cartridge vertically and push it fully into the housing’s central guide or core seat.Seal and Secure:
Close and seal the housing per manufacturer’s torque specifications to prevent leakage.Vent & Pressurize:
Use the air vent valve on the filter housing to release trapped air. Gradually pressurize the system to avoid water hammer or sudden surges.
🧼 Maintenance & Cleaning for High Flow Filter Housings and Cartridges
Online Backwashing (if supported):
Use pre-filtered water to perform backflushing at ≤5 kg/cm² to dislodge surface particles and extend service life.
Offline Chemical Cleaning:
Soak cartridges in NaOH, citric acid, or enzymatic solutions (30–40°C) to remove deep-seated contaminants. Ensure filter housing materials are chemically compatible.
Periodic Housing Inspection:
Regularly inspect high flow filter housings for signs of corrosion, pressure wear, gasket aging, or internal buildup, especially in high-temperature or corrosive environments.
IX. Performance Requirements Checklist
Parameter | Target |
---|---|
Filtration Efficiency | ≥99.8% (medical-grade PP) |
Pressure Drop | ≤0.1 MPa |
Dirt Holding Capacity | ≥1.5 kg/m² |
Temperature Resistance | Up to 250°C (GF) |
Structural Integrity | Rigid cage, no media migration |
X. Frequently Asked Questions (FAQ)
Q1: What’s the difference between absolute and nominal rating?
A nominal rating captures ~85% of particles; absolute captures ≥99.9% of a specific micron size.
Q2: Can I replace my 3M 740B cartridge with a generic one?
Yes. Many cartridges are designed to be direct replacements with identical dimensions and sealing mechanisms.
Q3: How often should I replace a high flow cartridge?
Typically every 3–6 months, depending on inlet water quality and total flow processed.
